Product introduction

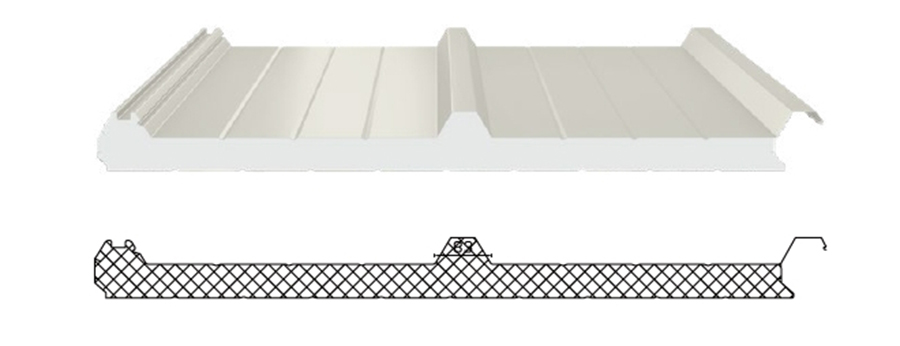

roof sandwich panel

Roof sandwich panels are composite building materials used for roofing, offering both structural support and insulation. They consist of an insulating core sandwiched between two layers of metal sheeting, typically steel or aluminum. These panels are designed to provide thermal and acoustic insulation, weather resistance, and are often used in agricultural, industrial, and service buildings.

Optional core materials:

PU(PIR)+Rock Wool; PU(PIR)+Glass Wool; PU(PIR)

Product advantages

☆Energy Efficiency & Thermal Insulation

Excellent thermal insulation performance—twice as effective as EPS panels at the same thickness.

☆Fire Resistance

Certified by the National Center for Quality Supervision & Inspection of Fire Protection Systems and Components, meeting GB8624 B2 flame-retardant standards.

☆Air Tightness & Sound Insulation

Superior sound absorption, significantly reducing noise from rain, hail, and impacts.

☆Waterproof & Anti-Corrosion

Wide-span design with fast drainage; hidden fasteners prevent rust, extending panel lifespan.

☆Aesthetic & Cost-Effective

Sleek appearance, reduced material waste, and lower installation costs.

☆Quick Installation

Factory-produced polyurethane panels ensure consistent quality and 35+ years of proven performance, enabling fast on-site assembly.

Product specifications

Panel type :	Roof sandwich panels
Effective width	1000mm
Panel thickness	50/ 75/ 100/ 150mm
Coating type	PE, SMP, HDP, PVDF
Steel sheet (GI/PPGI/PPGL)	0.40-0.75 mm
Aluminum metal sheets	0.60-1.20 mm
Surface sheets	Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm
	Aluminum metal sheets:0.60-1.20 mm
	Aluminum foils:0.065 mm
	PVC sheets
Core material	PIR/PUR	Rockwool with PU edges	Glass wool with PU edges
Core density	35-45 kg/m3	110-150 kg/m3	48-64 kg/m3
Thermal conductivity	≤0.023 w/m· k	0.035-0.041 w/m·k	0.035-0.041 w/m·k

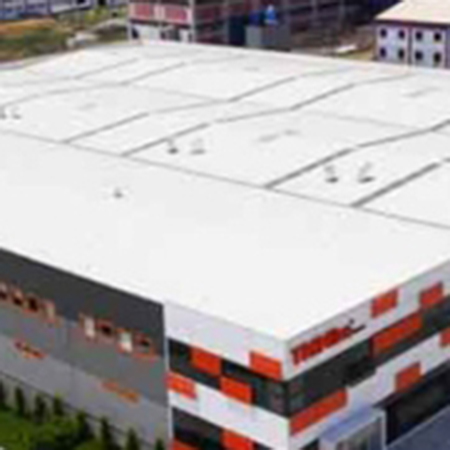

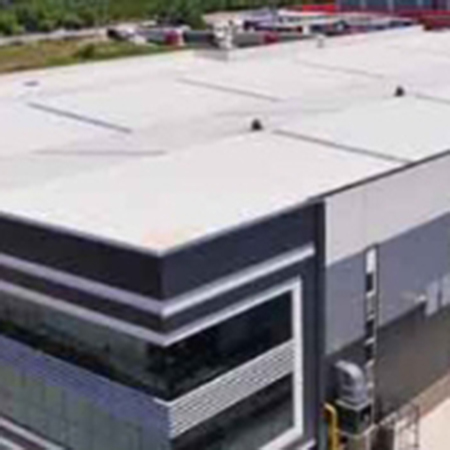

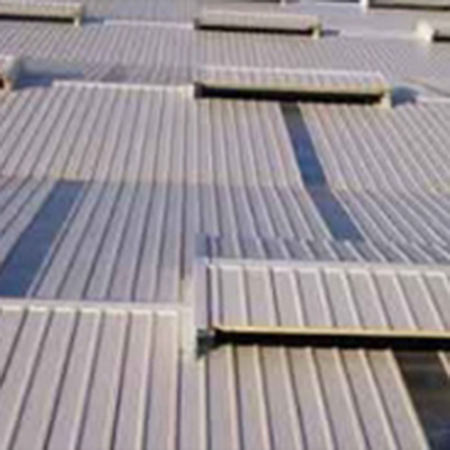

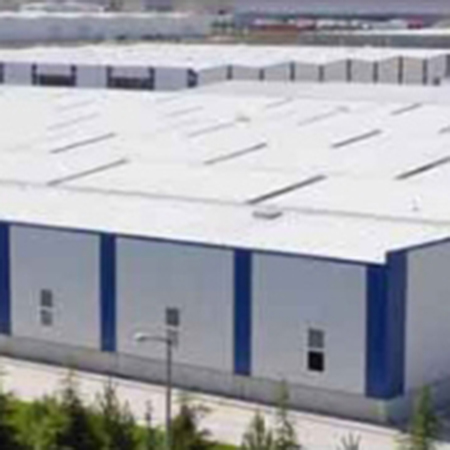

Product applications

These insulated roof panels provide superior thermal efficiency , fire resistance (GB8624 B2 certified), and weatherproof durability for industrial, commercial, and agricultural buildings. The hidden fastener system ensures leak-proof installation, while sound absorption and corrosion resistance extend lifespan. Ideal for energy-efficient, low-maintenance roofing solutions.

Packing & Delivery

☆ Packing

·Seaworthy packing standards:

roof sandwich panel packing

PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
