50mm Ribbed Roof Standing Seam Sandwich Panels Engineered for Solar PV Mounting

50mm standing seam roof panels with ribbed profiles provide integrated, weathertight mounting for solar PV systems.

product orgin:

China

shipping port:

Xiamen/Qingdao

payment:

T/T;L/C at sight

color:

Customized

product categories

new products

product details

Product introduction

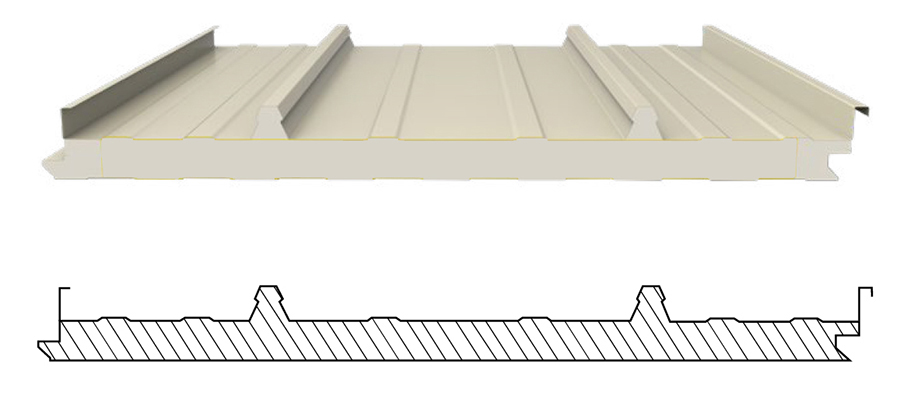

Roof sandwich panels

A multifunctional roofing system that integrates solar energy utilization. The system uses a specially designed metal polyurethane energy-saving board as the rhino surface load-bearing. Optional core material: polyurethane edge-sealed rock wool sandwich. The closed-pore rate of the energy-saving and thermal insulation core material is greater than or equal to 97%, and the thermal insulation performance is excellent.

Optional core materials:

PU(PIR)+Rock Wool; PU(PIR)+Glass Wool; PU(PIR)

Product advantages


Thermal Insulation & Fire Safety	Photovoltaic Integration	High Load-Bearing Capacity

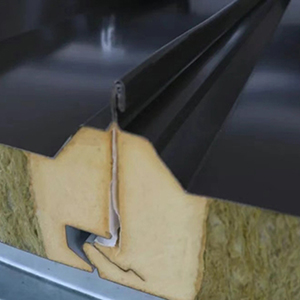

Utilizing high-efficiency polyurethane/rock wool core materials, these composite roof panels achieve Class B1 fire rating while delivering superior thermal resistance.	Specially designed corrugation profiles enable direct clip-fastened mounting to PV brackets, eliminating roof penetrations and waterproofing risks from traditional bolt-through installations.	Reinforced rib structures combined with rigid polyurethane foam cores significantly enhance load distribution (≥1.5kN/m²), improving system stability and lifespan.

Product specifications

Panel type :	Photovoltaic Roof Panels
Effective width	950/1000mm
Panel thickness	50/ 75/ 100/ 150mm
Coating type	PE, SMP, HDP, PVDF
Steel sheet (GI/PPGI/PPGL)	0.40-0.75 mm
Aluminum metal sheets	0.60-1.20 mm
Surface sheets	Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm
	Aluminum metal sheets:0.60-1.20 mm
	Aluminum foils:0.065 mm
	PVC sheets
Core material	PIR/PUR	Rockwool with PU edges	Glass wool with PU edges
Core density	35-45 kg/m3	110-150 kg/m3	48-64 kg/m3
Thermal conductivity	≤0.023 w/m· k	0.035-0.041 w/m·k	0.035-0.041 w/m·k

Product applications

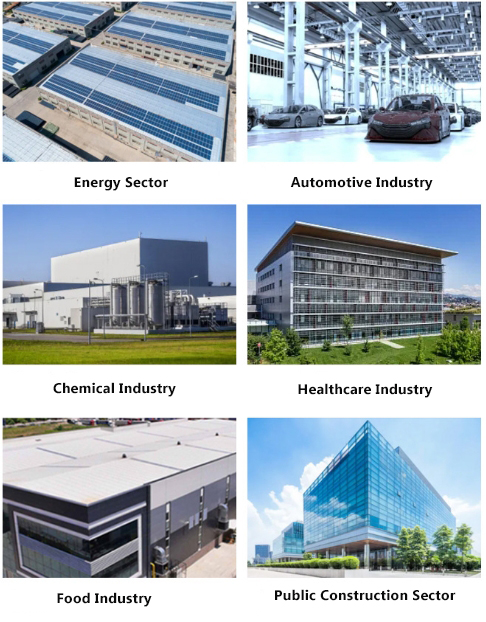

roof sandwich panel application

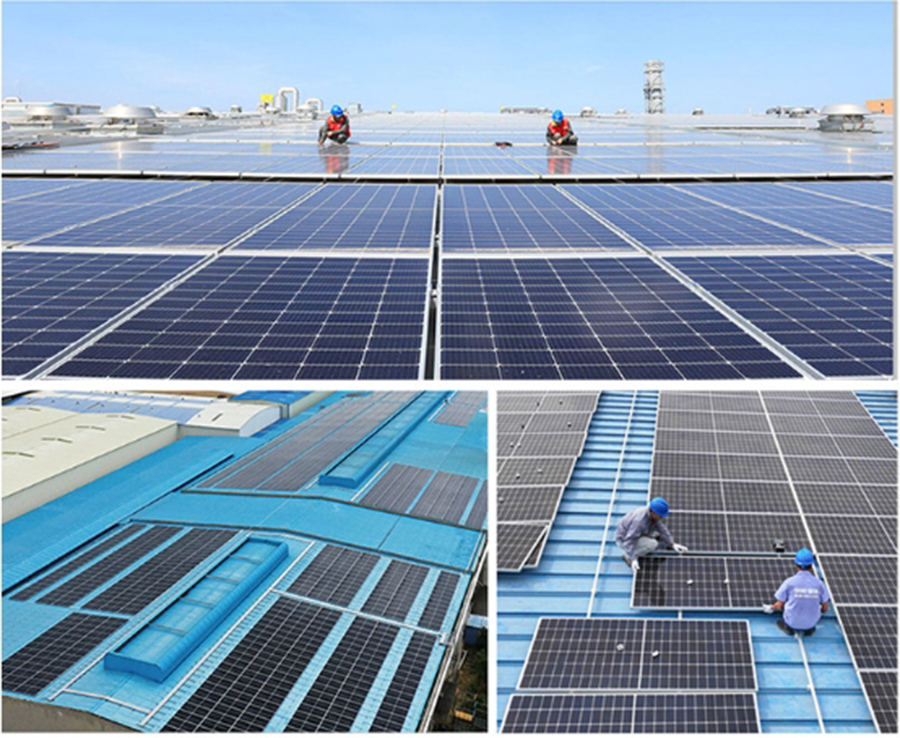

roof sandwich panels installation

Packing & Delivery

☆ Packing

·Seaworthy packing standards:

sandwich panels packing

PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
