/75mm PUR/PIR Polyurethance sandwich roof board

75mm PUR/PIR Polyurethance sandwich roof board

PU sandwich panel is produced using insulated material core- polyuethance, and pre-paint color steel sheets from both sides-up side and down side. MOQ:500M²/Color & Size
  • item no.:

    1000
  • lead time:

    7-15 days
  • product orgin:

    China
  • shipping port:

    Xiamen / Qingdao / Tianjin,China
  • payment:

    T/T; LC at sight
  • color:

    Customized
  • product details

Advantages

High ribs roof sandwich panels is good at drainage, please choose it if your city has a lot of rain;

☆ Light weight but can bear heavy load;

☆ Waterproof performance, PU sandwich panel with excellent waterproof performance, better than other core material sanwich panel;

Colorful face, two steel sides' color can be blue, grey, white, or choose as RAL color;


Thermal insulated core material


Our core material brands are BASF,Huntsman,Wanhua,they are top brands in polyurethane chemical material.This is to make sure the best quality in core material of PU sandwich panels.


Specifications

Product name

50mm PU foam insulation roof boards

Remark

Effective width

1000 mm



Panel thickness

75 mm

Other thickness for roof:

 40, 50, 60, 100, 120, 150, 200 mm

Surface sheets

PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel



Steel thickness

0.40 - 0.70 mm



 Aluminum sheets/ Al-Mg-Mn alloy metal sheets

0.70 - 1.20 mm



Stainless steel

0.40 - 0.60 mm



Core material density

40 - 42 KG/M³



Regular panel color

White grey, Sea blue, Sliver grey, Dk grey, Iron grey

Color could be customized too.

Coating type choice

PE/ PVDF/  HDP/ SMP, etc.



Available length

20FT container:  ≤ 5.95m
40FT container: ≤ 11.95m


Join type

pu sandwich panel roof join type

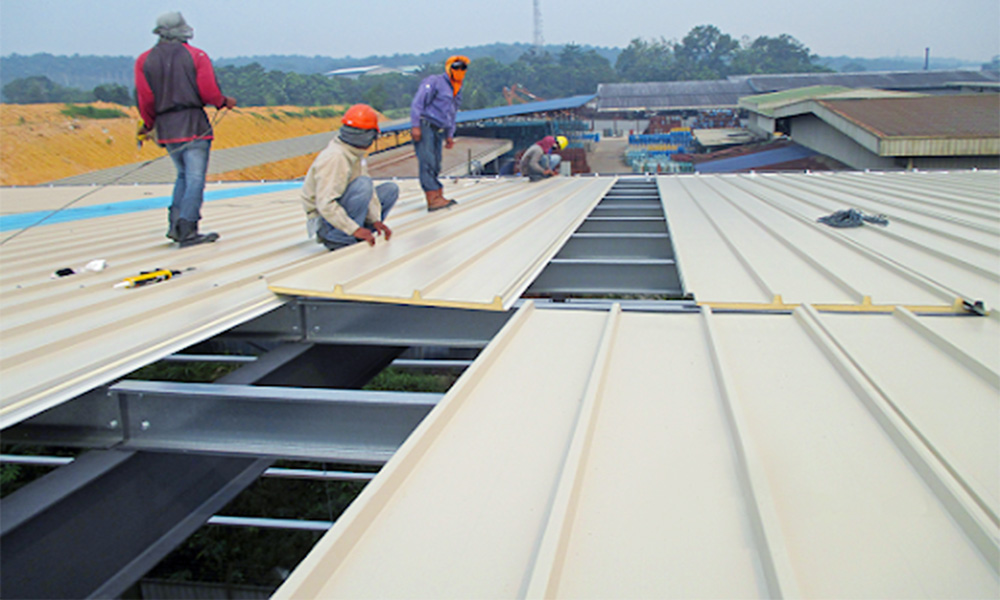

Installation renderings

roof panel installation

sandwich panel installation

roof sheet supplier

4 ribs concealed PU roof panels price

metal sandwich panel roof supplier


Packing & Delivery:

☆ Packing:

Seaworthy packing standards:

PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.


☆ Delivery:

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 day;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
