10mm thick PU metal panels with 4 ribs for roof

10mm thick PU roof sandwich panel is the most thinnest thickness we can make now. MOQ:1000 M²/ Color & Size
  • item no.:

    1000
  • lead time:

    7-15 days
  • product orgin:

    China
  • shipping port:

    Xiamen / Qingdao / Tianjin,China
  • payment:

    T/T; LC at sight
  • color:

    Customized
  • product details

Panel advantages:

☆ 4 high ribs roof panels, this improves the drainage capacity of the total roof system;

Cost effective metal panel type, it can reduce your total project budget;

☆ Lightweight for installation, but excellent mechanical properties;

☆ This type can be used as both roof panel and wall panels.


Panel details:

10mm PIR roof sandwich panels details

The surface is with 2 profiled on each panel surface, and the bottom is with nonflammable aluminum foils. As per different options, you can choose polyurethane or polyisocyanurate as core material, but density should be at least 35 kg/m³. For more details, you can download the catalog on this page.


Panel specifications:

Product name

10mm PUR/PIR panel

Remark

Effective width

1000 mm



Panel thickness

10 mm

Other thickness for roof:

40, 50, 60, 75, 100, 150, 200 mm

To have more details on other thickness of roof panels, you can click here.

Top sheet PPGI/PPGL steel thickness

0.40 - 0.70 mm



Top sheet  Aluminum alloy metal sheets

0.70 - 1.20 mm



Top sheet Stainless steel

0.40 - 0.60 mm



Core material

PIR / PUR

Suggested density: 35-42kg/m³

Bottom sheet aluminum foils

0.065mm, with orange peel grain, nonflammable



Regular panel color

White gray, Sea blue, Sliver gray, Dark gray, Iron gray

Color could be customized too.

Coating type choice

PE/ PVDF/  HDP/ SMP, etc.



Available length

20FT container: ≤ 5.90m
40FT container: ≤ 11.95m


Applications & Renderings:

This insulated metal panels can be widely used as external roofs or walls of factories, warehouses, freezing storage, workshops, poultry farms, supermarkets, exhibition halls, gymnasiums, schools, dormitories, mobile homes, residential houses and many other non-industrial facilities.

Sometimes if you want to replace the old roof,  this kind of laminated panels is also a good choice.

The following one is a reference project of roof renovation:

Insulated roof panels for roof renovation

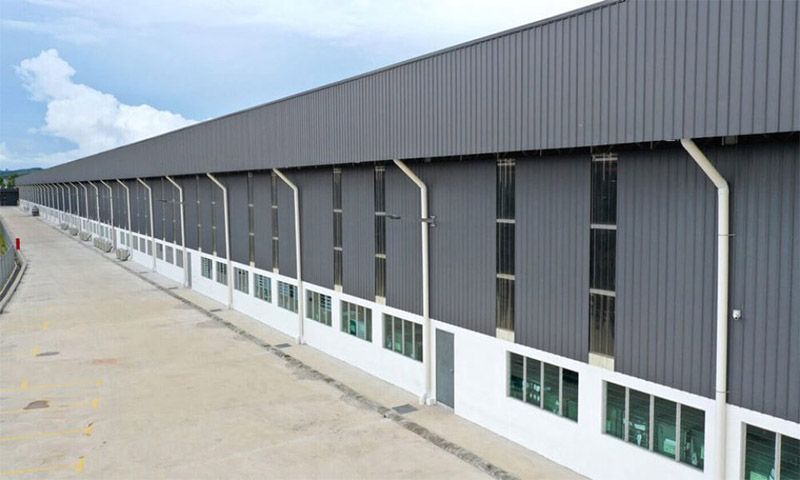

As wall insulated panels of factory building:

Wall insulated panels for factory building


Packing & Storage & Delivery:

☆  Packing:

·Seaworthy packing standards:

·PVC on both sides to protect the roof panel surfaces;

·Packed with kraft paper to protect the panel ends;

·Put EPS foam on the each space to keep the panels from squeezing each other.

·If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.

☆  Storage:

·Store the panels in covered area;

·There must be sleepers, or other materials suitable as a bottom for the panels stack;

·Max 2 meters high you can stack the panels;

·Roof panels are better to place above on wall panels.

  Delivery:

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
