Competitive Price PU PIR Rockwool Roof Sandwich Panels,4 Ribs Roofing Panel For Construction For Sale

PU PIR Rockwool Roof Sandwich Panels,4 Ribs Roofing Panel For Construction

4 ribs sandwich roofing panels provide superior insulation, structural strength and corrosion resistance for durable construction solutions.

product orgin:

China

shipping port:

Xiamen/Qingdao

payment:

T/T;L/C at sight

color:

Customized

product categories

new products

product details

Product introduction

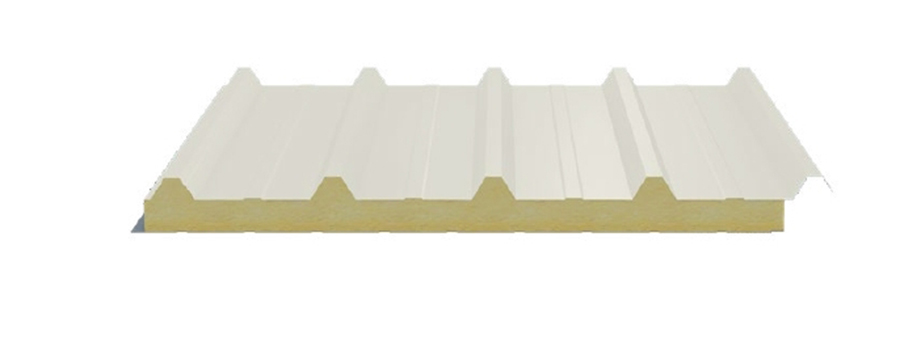

roof sandwich panel

Roof sandwich panels are composite building materials used for roofing, offering both structural support and insulation. They consist of an insulating core sandwiched between two layers of metal sheeting, typically steel or aluminum. These panels are designed to provide thermal and acoustic insulation, weather resistance, and are often used in agricultural, industrial, and service buildings.

Optional core materials:

PU(PIR)+Rock Wool; PU(PIR)+Glass Wool; PU(PIR)

Product advantages

☆Corrosion Resistance
The inner panel can use aluminum foil instead of color-coated steel to enhance high-temperature and corrosion resistance.
☆Sturdy Panel Design
Four-wave corrugation significantly increases panel strength.
☆Optimized Overlap
Features a smart beveled-edge design for seamless overlapping.
☆Quick Installation
Simplified overlap design enables fast and easy construction.

Product specifications

Panel type :	Roof sandwich panels
Effective width	1000mm
Panel thickness	50/ 75/ 100/ 150mm
Coating type	PE, SMP, HDP, PVDF
Steel sheet (GI/PPGI/PPGL)	0.40-0.75 mm
Aluminum metal sheets	0.60-1.20 mm
Surface sheets	Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm
	Aluminum metal sheets:0.60-1.20 mm
	Aluminum foils:0.065 mm
	PVC sheets
Core material	PIR/PUR	Rockwool with PU edges	Glass wool with PU edges
Core density	35-45 kg/m3	110-150 kg/m3	48-64 kg/m3
Thermal conductivity	≤0.023 w/m· k	0.035-0.041 w/m·k	0.035-0.041 w/m·k

Product applications

Roof Sandwich Panels are ideal for industrial and commercial buildings, these 4-rib insulated roof panels combine superior thermal efficiency (meeting GB8624 B2 fire rating) with structural durability. The corrugated design enhances load-bearing capacity while concealed fasteners ensure weather-tight performance. Quick to install and maintenance-free.

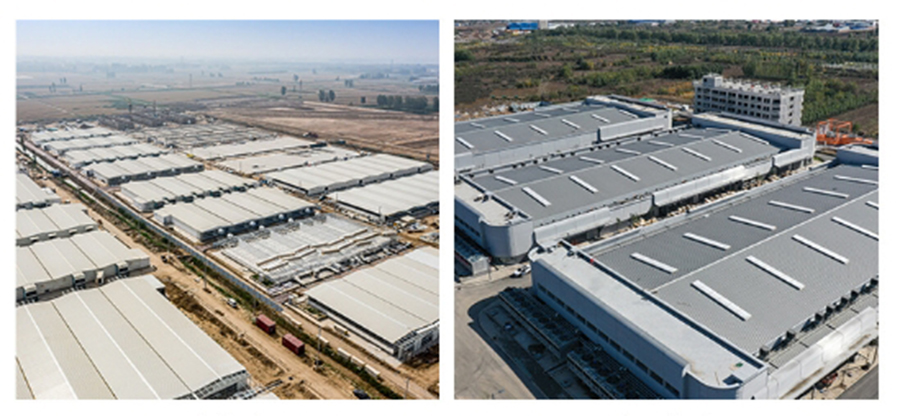

roof sandwich panels application

Packing & Delivery

☆ Packing

·Seaworthy packing standards:

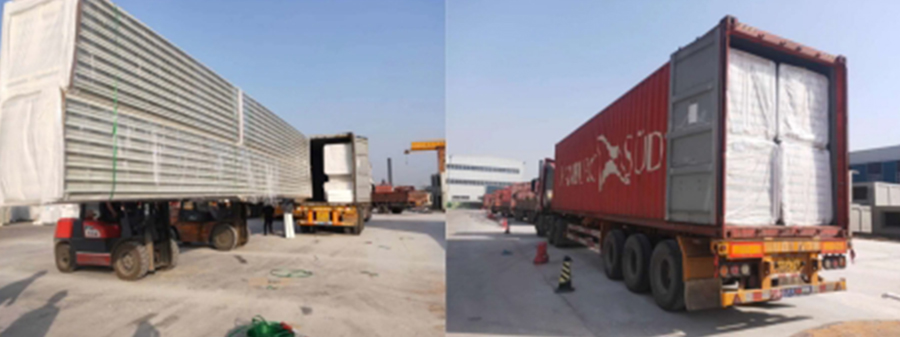

roof sandwich panel packing

PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

Service&Support

☆Service
Xiamen Yumin Xincailiaokeji Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

1)Professional sales team,One-to-one service;

2)Combination of industry and trade company,to ensure the service and price;

3)Experienced engineer team to offer professional technology service;

4)Intimate after-sales service.

☆Support

Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
