banner

PU roof sandwich panels

home /

Roofing System

/

PU roof sandwich panels

/50mm high density PUR/PIR sandwich roof panel

50mm high density PUR/PIR sandwich roof panel

PU sandwich panel also call polyurethance sandiwhc panel, this kind of type panel with 4 high ribs is good at drainage. MOQ:500M²/Color & Size
  • item no.:

    1000
  • lead time:

    7-15 days
  • product orgin:

    China
  • shipping port:

    Xiamen / Qingdao / Tianjin,China
  • payment:

    T/T; LC at sight
  • color:

    Customized
  • product details

Advantages

☆ 4 high ribs roof sandwich panels is facilitate drainage, it is favorable for cities with heavy rainfall;

☆ Corrugated profile type panel, it is more aesthetics for the roof facade;

☆ Polyurethane core is high density, with excellent waterproof performance;

☆ The sandwich panel with double sides color coated steel sheet, you can choose the color what you want,


Insulated core material


Our core material brands are BASF,Huntsman,Wanhua,they are top brands in polyurethane chemical material.This is to make sure the best quality in core material of PU sandwich panels.


Specifications


Product name

50mm PU foam insulation roof boards

Remark

Effective width

1000 mm



Panel thickness

50 mm

Other thickness for roof:

 40, 60, 75, 100, 120, 150, 200 mm

Surface sheets

PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel



Steel thickness

0.40 - 0.70 mm



 Aluminum sheets/ Al-Mg-Mn alloy metal sheets

0.70 - 1.20 mm



Stainless steel

0.40 - 0.60 mm



Core material density

40 - 42 KG/M³



Regular panel color

White grey, Sea blue, Sliver grey, Dk grey, Iron grey

Color could be customized too.

Coating type choice

PE/ PVDF/  HDP/ SMP, etc.



Available length

20FT container:  ≤ 5.95m
40FT container: ≤ 11.95m



Join type

pu sandwich panel roof join type

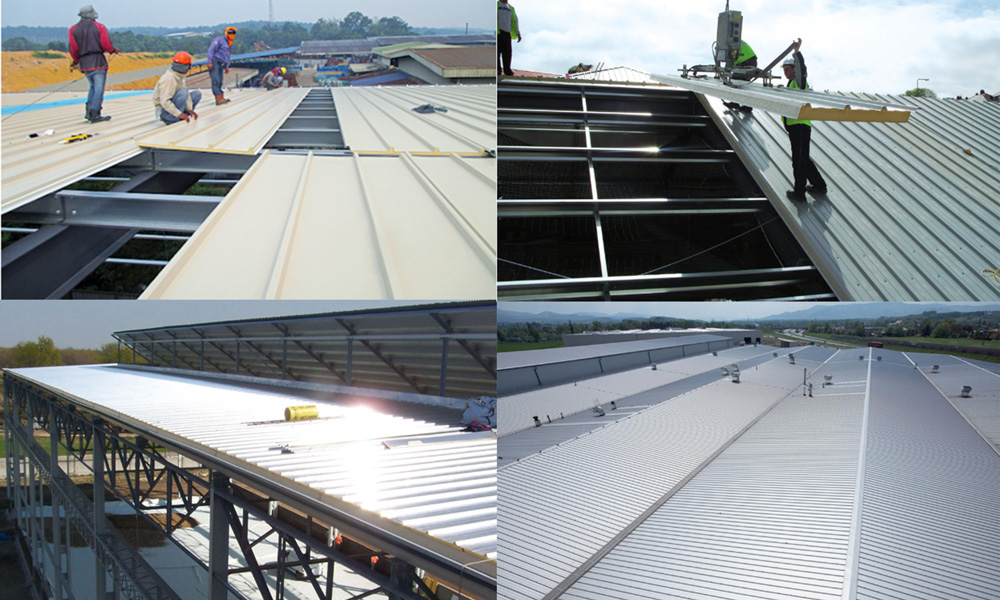

Renderings

rooing sandwich panel.jpg


Packing & Delivery:

☆ Packing:

Seaworthy packing standards:

PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.


☆ Delivery:

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 day;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
