Thermal Insulation Polyurethane Sandwich Panels Photovoltaic Roof Board

This high-performance building material combines superior thermal insulation from a polyurethane core with integrated solar technology for an energy-generating roof system.

item no.:

N/A

product orgin:

China

shipping port:

Xiamen/Qingdao

payment:

T/T;L/C at sight

color:

Customized

product categories

new products

product details

Product introduction

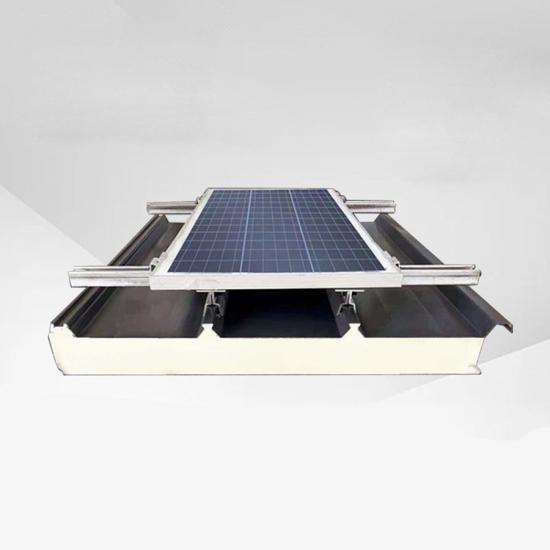

This innovative polyurethane sandwich panel integrates photovoltaic technology directly into a highly insulated roofing system. As a premier BIPV (Building-Integrated Photovoltaic) solution, it generates renewable energy while its PIR/PU core provides exceptional thermal insulation. This dual function significantly reduces both energy consumption and operational costs for industrial and commercial buildings, offering a streamlined, durable, and sustainable construction solution.

Optional core materials:

PU(PIR)+Rock Wool; PU(PIR)+Glass Wool; PU(PIR)

Product advantages

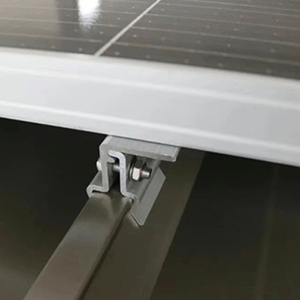

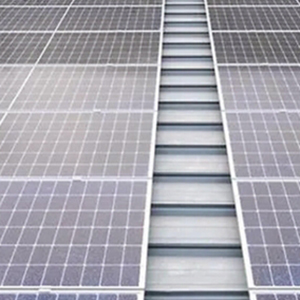

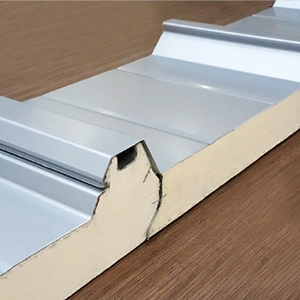

Thermal Insulation & Fire Safety	Photovoltaic Integration	High Load-Bearing Capacity
The rigid polyurethane (PIR/PU) core provides superior thermal insulation, significantly reducing energy costs. It also offers excellent fire safety, typically achieving a Class B1 fire rating, which enhances building compliance and occupant protection.	This panel is a complete BIPV solution, seamlessly integrating photovoltaic modules into the roof structure. This allows for on-site renewable energy generation, reducing operational expenses and supporting sustainable building practices.	Engineered with robust metal facings and a dense core, these panels possess exceptional structural strength and rigidity. They support heavy snow and wind loads, enabling reliable performance over large roof spans without additional support.

Product specifications

Panel type :	Photovoltaic Roof Panels
Effective width	950/1000mm
Panel thickness	50/ 75/ 100/ 150mm
Coating type	PE, SMP, HDP, PVDF
Steel sheet (GI/PPGI/PPGL)	0.40-0.75 mm
Aluminum metal sheets	0.60-1.20 mm
Surface sheets	Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm
	Aluminum metal sheets:0.60-1.20 mm
	Aluminum foils:0.065 mm
	PVC sheets
Core material	PIR/PUR	Rockwool with PU edges	Glass wool with PU edges
Core density	35-45 kg/m3	110-150 kg/m3	48-64 kg/m3
Thermal conductivity	≤0.023 w/m· k	0.035-0.041 w/m·k	0.035-0.041 w/m·k

Product applications

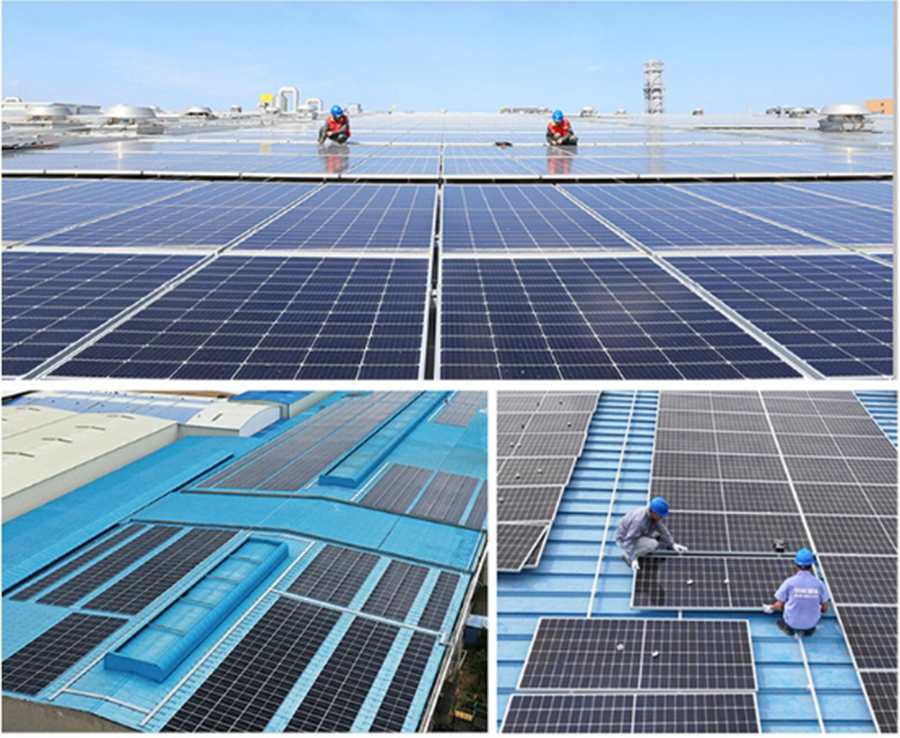

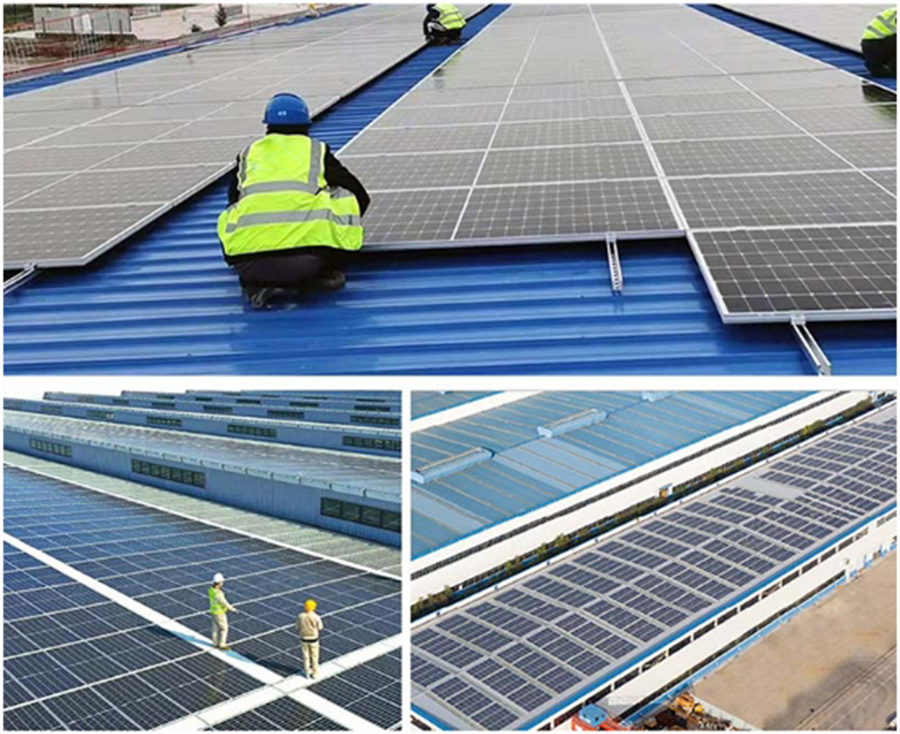

These polyurethane sandwich panels with integrated photovoltaic modules are ideal for industrial buildings, large warehouses, and cold storage facilities. They serve as an efficient BIPV roofing solution, providing superior thermal insulation for temperature control while simultaneously generating clean solar energy to reduce operational costs.

roof polyurethane sandwich panel

Packing & Delivery

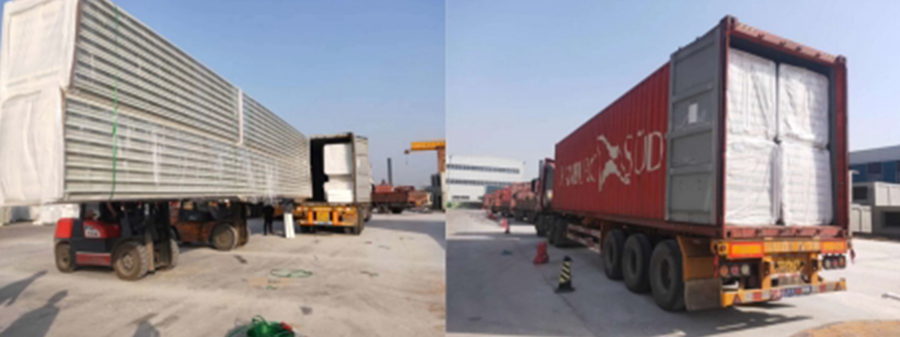

☆ Packing

·Seaworthy packing standards:

sandwich panels packing PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

Service&Support

☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

1)Professional sales team,One-to-one service;

2)Combination of industry and trade company,to ensure the service and price;

3)Experienced engineer team to offer professional technology service;

4)Intimate after-sales service.

☆Support

Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
