Product Introduction

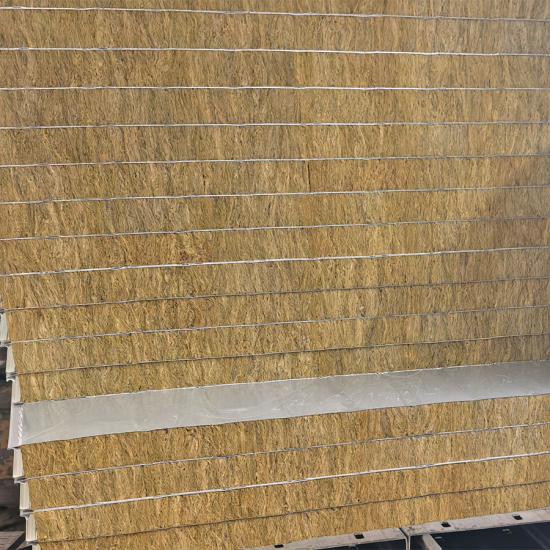

Our thermal insulation wall and roof rockwool panels are designed to solve the common pain points in warehouses and workshops: excessive heat loss or gain, high energy bills, poor fire safety, and unwanted noise echoing through large open spaces. By using high‑density rockwool as the core material, these panels provide excellent thermal insulation, A‑grade fire protection, and effective sound absorption in one rigid solution.

Applications include industrial warehouses, logistics centers, manufacturing workshops, distribution hubs, and any large‑span facility that needs stable indoor temperatures, lower energy costs, and a safer working environment.

Product Specification

Specification	Details
Panel Thickness	50mm, 75mm, 100mm, 120mm, 150mm, 200mm
Panel Width	1000mm (standard), 950mm, 600mm (optional)
Panel Length	2000mm–12000mm (customizable)
Steel Facings	Pre-painted galvanized steel / color coated steel
Steel Thickness	0.4mm–0.8mm (both sides)
Core Material	Rockwool (stone wool)
PU Density	80–160kg/m³
Thermal Conductivity (λ)	≤ 0.040 W/(m·K)
Fire Rating	A1 – A2 (non-combustible)
Sound Absorption Coefficient (NRC)	0.85 – 0.95
Sound Reduction Index (Rw)	30 – 45 dB (depending on thickness)
Melting Point	> 1000°C
Water Vapor Permeability (μ)	1 (no capillary effect)
Joint System	Steel tongue-and-groove / concealed fastener
Compressive Strength	(10% deformation) ≥ 40 kPa
Application Temperature	-40°C to +200°C
Applications	Warehouses, workshops, industrial plants, logistics centers, commercial roofs, partition walls, fire-rated enclosures

Rockwool sandwich panels VS PIR sandwich panels

Here is a detailed comparison table from a buyer's perspective to help you choose between Rockwool and PIR sandwich panels:

Specification	Details
Panel Thickness	50mm, 75mm, 100mm, 120mm, 150mm, 200mm
Panel Width	1000mm (standard), 950mm (optional)
Panel Length	2000mm – 12000mm (customizable)
Steel Facings	Pre-painted galvanized steel / color coated steel
Steel Thickness	0.4mm – 0.8mm (both sides)
Core Material	Polyurethane (PU) rigid foam
PU Density	38 – 45 kg/m³
Thermal Conductivity (λ)	≤ 0.022 W/(m·K)
Sound Reduction Index (Rw)	24 – 32 dB (depending on thickness)
Compressive Strength	≥ 150 kPa (at 10% deformation)
Fire Rating	B2 – B3 (self-extinguishing) / optional flame retardant grade
Joint System	Steel tongue-and-groove with hidden fastener
Water Absorption	≤ 3% (by volume)
Operating Temperature	-50°C to +80°C
Applications	Cold rooms, clean rooms, refrigerated warehouses, food processing plants, pharmaceutical facilities

Service

Comprehensive Construction Solutions for Modern Infrastructure


Precision Material Fabrication	Custom Structural Design	Project Management & Installation	Technical Consultation & Support

Yumisteel is a comprehensive construction solution provider dedicated to driving innovation in the construction industry. We offer clients intelligent, durable, and cost-effective solutions, covering every stage from initial design to final installation.

We are not just construction material suppliers; we are your strategic engineering partners who solve complex structural challenges. We integrate advanced manufacturing technology, rigorous quality control, and expert project coordination to deliver robust, reliable, and sustainable steel structures.

FAQ

1. Are you a factory?
Yes, we have our own factory with multiple production lines for steel structures, pipe trusses, grid structures, light steel and heavy steel products. And our company also has more than 30 senior design and technical talents, including senior engineers, registered constructor, and engineers.
2.How can you control the quality?
Our strict quality control measures are in place throughout the entire process from material procurement, processing and manufacturing to product transportation. Advanced equipment is used in the processing process, and strict production operation plan management is implemented for the production and manufacturing process to ensure the schedule and quality of projects.
3.How can you guarantee the price you offering is the best one?
We are professional steel structure supplier and can provide the best design for you which will save you money with the good quality.
4.Can you offer a device service?
Yes, we have a excellent design team. We can design full solution drawings as per your requirements.
5. Do you offer installation service?
Yes, we can provide both online or on-site installation guide or send an professional installation team to your place.
