/100mm Metal Rockwool Sandwich Steel Panel for Wall

100mm Metal Rockwool Sandwich Steel Panel for Wall

Core material rockwool is suitable for the buildings which need the effect of fire and sound insulation as it plays these performances excellent. MOQ: 500M2/Color&Size
  • item no.:

    1000
  • lead time:

    7-15 days
  • product orgin:

    China
  • shipping port:

    Xiamen/Qingdao/Tianjian,
  • payment:

    T/T, LC at sight
  • color:

    Customized
  • product details

Highlights

- The rockwool material we choose is the relatively good for Level A1 fire performance.

- We choose high quality well-knit rockwool which displays better sound insulation.

- Both sides of steel edge avoid the rockwool to be loosed.

- Different types of surface sheet customers can choose: PPGI/PPGL/Aluminum/Al-Mg-Mn alloy metal/Stainless/PVC.


Specification

Product component

100mm rockwool wall panel

Effective width

950/1150mm

Core thickness

100mm
(75/150/200mm available for choice)

Surface sheets

PPGI/ PPGL/ Aluminum sheets/
 Al-Mg-Mn alloy metal sheets/
Stainless steel/ PVC sheet

Steel thickness

0.4-0.75mm

Aluminum sheets/
Al-Mr-Mn alloy metal sheets

0.7-1.2mm

Stainless steel

0.4-0.6mm

Core density

80-150KG/M3

Regular color

white grey, sea bule,sliver grey,
dark grey, iron grey,
(or as RAL)

Coating type choice

PE/PVDF/HDP/SMP, etc.

Available length

20FT container: ≤ 5.95m
40FT contaienr: ≤ 11.95m


Technique data

Sound damping value

Core material thickness

(mm)

Sound reduction index

(dB)

Spectrum adaption factors



C(dB)

Ctr(dB)

50

30

-1

-4

75

31.5

-2

-4

100

34

-2

-4

150

35

-3

-5

Note: These data based on steel thickness 0.40-0.50mm and rockwool density 100KG/M3


Thermal transmittance coefficient(U value):

Panel thickness(mm)

50

75

100

150

U(W/M2·K

0.78

0.58

0.41

0.28


Thermal transmittance coefficient(U value):

Panel thickness(mm)

50

75

100

150

R(M2·K/W)

1.28

1.76

2.44

3.57

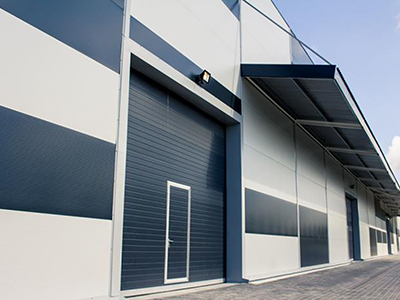

Application

Rockwool sandwich panel is acceptable in various building and in different fields like:

- Industrial: warehouses, factory, etc.

- Commercial: power plants, power equipment companies, etc.

- Public: large supermarkets, airport terminals, railway stations, etc.

Insulation rockwool sandwich wall panel

Small rib wall panel

A1 Fireproof building material

sandwich panel for movable house


Packing & Delivery:

☆ Packing:

Seaworthy packing standards:

PVC on both sides to protect the roof panel ends;

Packed with paper to protect the panel ends;

Put EPS foam on the each space to keep the panel from squeezing each other.

If you have special requirement, please feel free to discuss with us. This is to make us improved, and protect your goods well.

☆ Delivery:

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
