50mm exterior thermal rockwool wall sandwich panel
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
item no.:
N/Aproduct orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product Introduction
Designed to solve the challenges of inconsistent roof and wall performance,our Rockwool Sandwich Panels with PU Siding deliver unified fire protection, thermal insulation, and weather resistance across the entire building envelope. Perfect for industrial, commercial, and agricultural facilities, these panels combine the core strength of rockwool with the durable finish of PU siding, ensuring consistent safety, energy efficiency, and visual appeal from roof to wall.
Product Specification
|
Application |
wall panels |
roof panels |
|
Model/Type |
930/1000/1120 |
1000 |
|
Steel sheets thickness(mm): |
0.3-0.7 |
|
|
Rock wool density(kg/m³): |
120-150 |
|
|
Effected width(mm): |
930/1000/1120 |
1000 |
|
Rock wool thickness(mm): |
50/75/100/150/200 |
|
|
Length: |
Max 5.8m for 20GP container Max 11.8m for 40GP/HQ container |
|
|
Heat conduction system data(W/M².K): |
0.04 |
|
Overlapping method

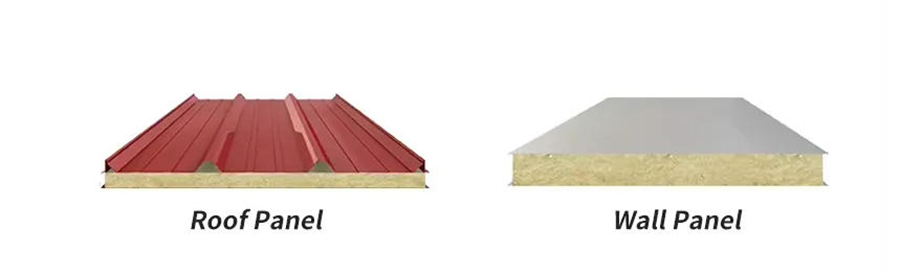

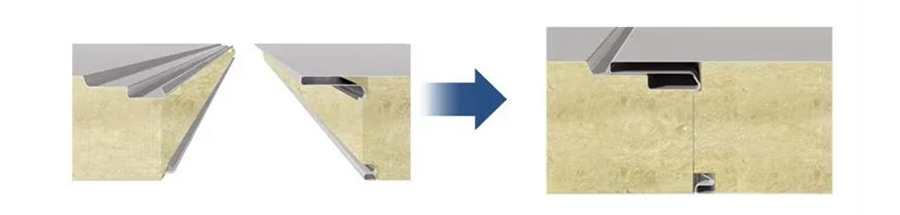

Wall rockwool sandwich panel

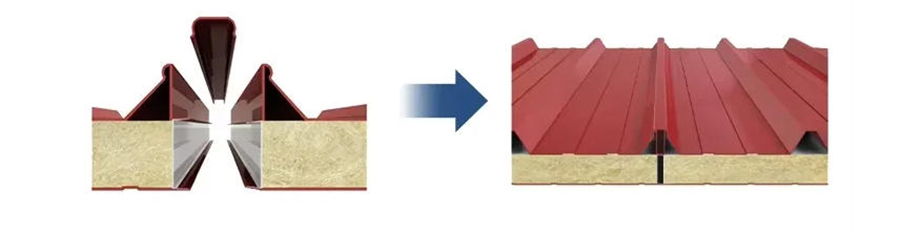

Roof rockwool sandwich panels
Why choose us?
Yumisteel-Your Trusted Construction Material Partner
✅ Excellent Quality
High-grade production lines + strict quality management = reliable products every time.
✅ Prompt Delivery
Big production capacity ensures fast delivery and on-time shipment worldwide.
✅ Worldwide Sales
Exported to 80+ countries, trusted by global customers for superior quality.
✅ Diverse Product Range
Container Houses | Corrugated Sheets | Steel Frames | Floor Deck | Sandwich Panels & more.
✅ Outstanding Services
24/7 responsive communication—before, during, and after your purchase.
✅ Professional Team
One-stop solution from design consultation to final installation support.
✅ Competitive Price
Factory-direct pricing designed to fit your budget without sacrificing quality.
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
The rockwool sandwich panel are consist of excellent quality of rockwool insulated material, and two steel layers(PPGL), with fireproof performance with grade A. MOQ:500M²/Color & Size
Upper and lower surface: adopt galvanized color steel plate with thickness of 0.4-0.75mm. Based on the specific requirements of customers, aluminum-zinc-plated color steel plates or galvanized steel plates can also be used.MOQ:500㎡ color&size
Rockwool as the core material is the most environment friendly building material nowadays. MOQ:500㎡/Color&Size
Core material rockwool is suitable for the buildings which need the effect of fire and sound insulation as it plays these performances excellent. MOQ: 500M2/Color&Size
Mineral wool sandwich panels providing best sound and fire protection for buildings; MOQ 5000 meters;
