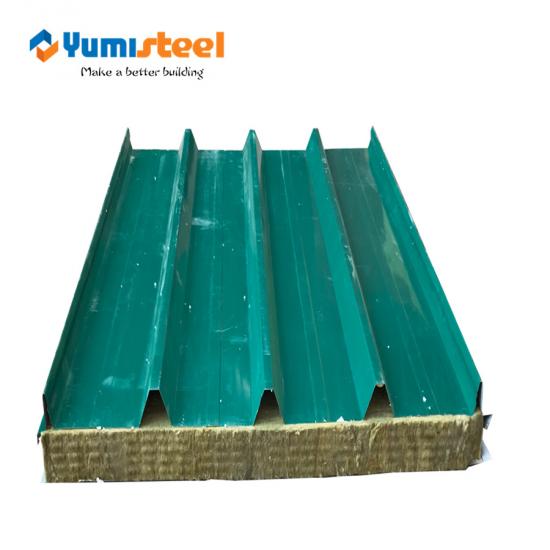

Rib-Customized Metal A1-Fireproof Rockwool Sandwich Panel for Roof/Wall

This rib-customized metal sandwich panel, featuring an A1-fireproof rockwool core, provides superior insulation and structural integrity for both roofing and wall cladding applications.

item no.:

N/A

product orgin:

China

shipping port:

Xiamen/Qingdao

payment:

T/T;L/C at sight

color:

Customized

product categories

new products

product details

Product introduction

The A1-fireproof rockwool sandwich panel is a high-performance building envelope solution, engineered for exceptional safety and efficiency. Its core of non-combustible rockwool, classified to the stringent A1 fire-resistance standard, provides superior thermal insulation and acoustic performance. Encased within durable metal facings, this prefabricated panel ensures rapid installation for roofing and wall systems. It is the ideal choice for industrial, commercial, and public buildings where maximizing fire protection, energy savings, and construction speed are critical priorities.

Product advantages

☆ Superior Fire Safety

Featuring a core of A1-fireproof rockwool, this panel provides the highest non-combustible rating, significantly enhancing building safety for both roofing and wall applications.

☆ Exceptional Thermal Performance

The rockwool insulation core delivers outstanding thermal resistance, ensuring excellent energy efficiency and climate control in any structure.

☆ Enhanced Structural Strength

The rib-customized metal design offers increased load-bearing capacity and rigidity, making these sandwich panels exceptionally durable for demanding projects.

☆ Rapid, Dry Construction

As a prefabricated panel system, it allows for quick and clean installation on-site, drastically reducing overall project timelines for walls and roofs.

Product specifications

Product thickness:	0.12-0.80mm
Zinc or Al-Zn clad layer :	Zinc:30-275g/m² Al-Zn:30-100g/m²
Steel standard: (other standard needed, please consult.)	Q235 / 345 (China GB standards)
Coating thickness of Top sheet:	10-25/35μm
Coating thickness of Bottom sheet:	7-10μm
Coating type:	PE, PVDF, HDP, SMP, etc.
Regular color:	White/Sea blue/DK grey/Sliver grey/White silver grey/Iron grey
Special color:	Could be customized

Product applications

The Rockwool Sandwich Panel is ideally suited for demanding environments. Its key applications include industrial warehouses, manufacturing facilities, and cold storage units where robust walls and roofs are needed. It is also perfect for commercial buildings, sports arenas, and logistics centers requiring superior fire safety, thermal efficiency, and fast construction timelines for the building envelope.

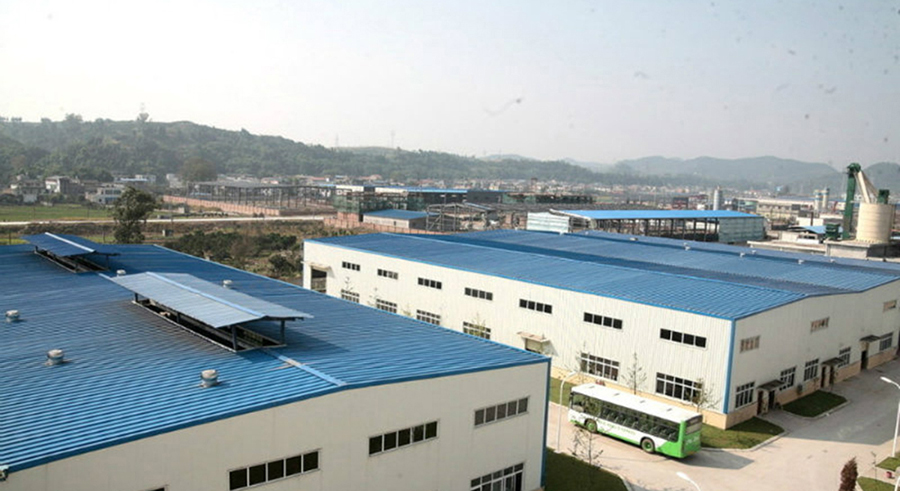

sandwich panels warehouse

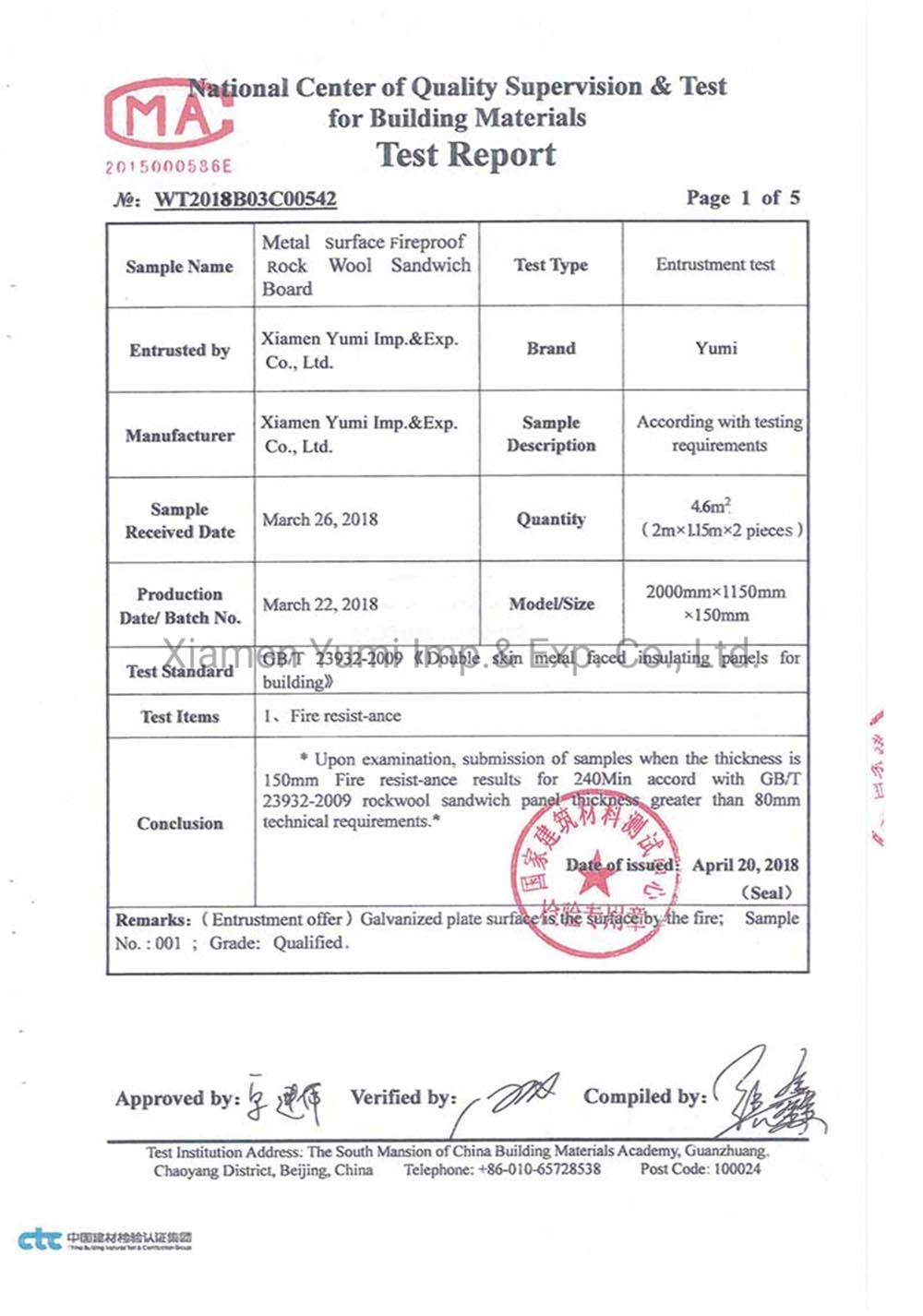

Rockwool Sandwich Panel Test Report

Rockwool Sandwich Panel Test Report

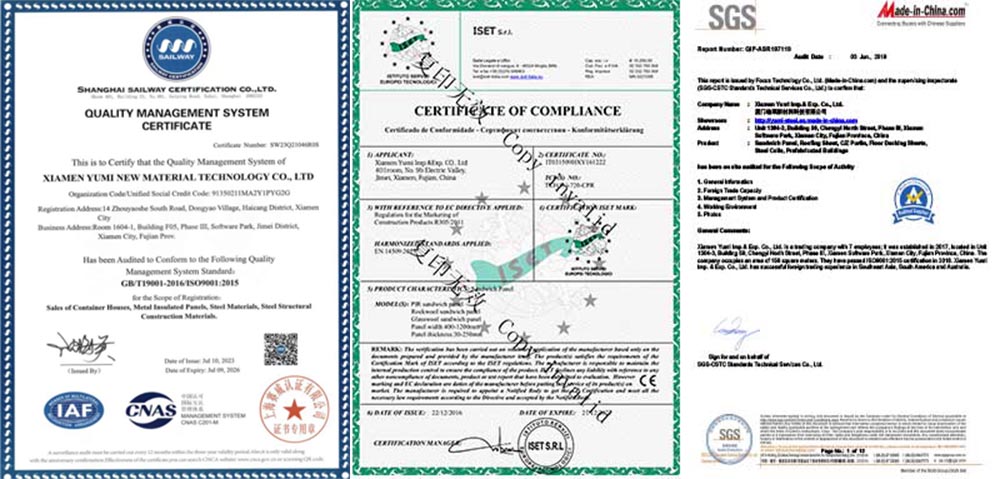

Company Certificates

Company Certificates

Packing & Delivery

All products are packed to seaworthy standards, with secure and methodical loading to ensure safe transit. Standard delivery takes 7-10 days, while customized items require 15-25 days. We support FOB, CIF, CFR, and DDP terms and can work with your forwarder or recommend one.

Service & Support

Yumisteel specializes in steel structures, offering competitive prices and global delivery. Our dedicated team provides one-to-one sales support, professional engineering guidance, and reliable after-sales service to ensure your project runs smoothly.
