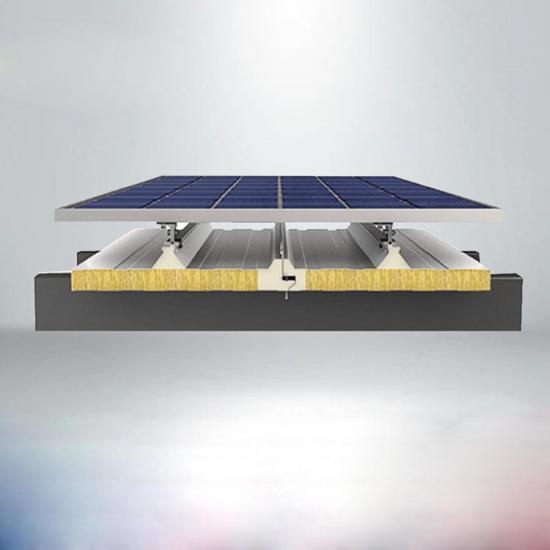

Fire Resistant Insulated Rock Wool PIR Photovoltaic Roof Sandwich Panels

This advanced panel integrates a fire-resistant rock wool core with PIR insulation and sealing, creating a superior A2-class fire rated roofing system that also generates clean energy through its built-in photovoltaic modules.

item no.:

N/A

product orgin:

China

shipping port:

Xiamen/Qingdao

payment:

T/T;L/C at sight

color:

Customized

product categories

new products

product details

Product introduction

This innovative roofing system combines a non-combustible rock wool core with a PIR (polyisocyanurate) foam edge seal, delivering exceptional fire resistance and superior thermal insulation. The integrated photovoltaic modules transform it into an efficient BIPV solution, generating renewable energy on-site. This composite panel is designed for industrial and commercial buildings requiring maximum fire safety, high energy efficiency, and sustainable power generation in a single, durable assembly.

Optional core materials:

PU(PIR)+Rock Wool; PU(PIR)+Glass Wool; PU(PIR)

Advantages

This panel provides maximum safety with its non-combustible rock wool core, achieving superior fire resistance (Class A). Enhanced thermal insulation from the PIR seal reduces energy costs, while the integrated photovoltaic system enables seamless renewable energy generation for a sustainable building solution.

Applications

Ideal for industrial facilities with high fire safety standards, such as manufacturing plants, warehouses, and logistics centers. This panel is also perfectly suited for cold storage buildings and commercial complexes seeking integrated, sustainable power generation alongside robust thermal and fire protection.

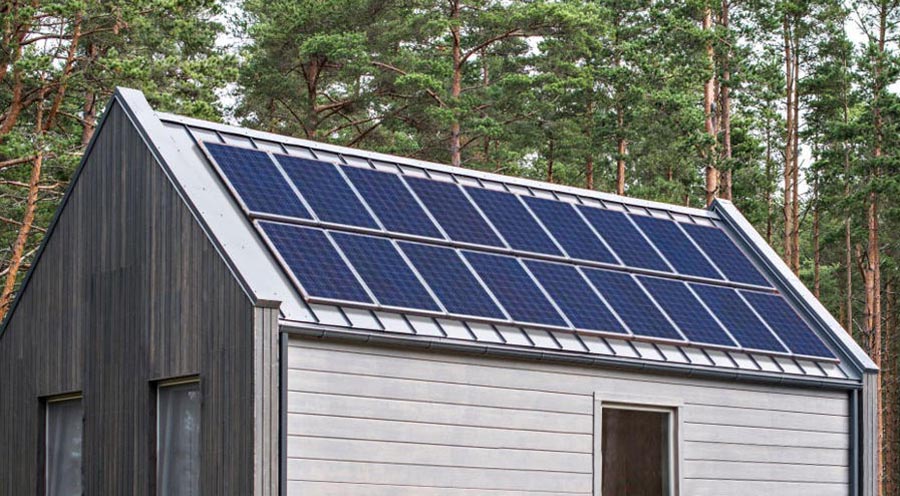

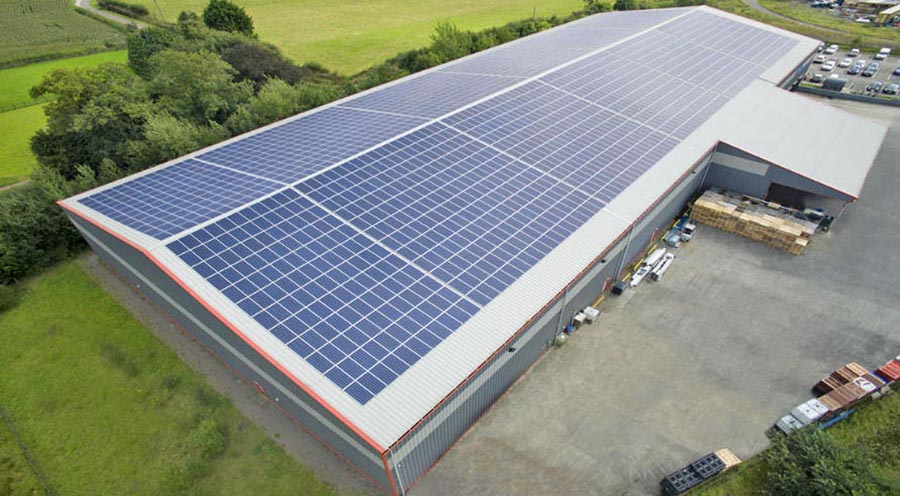

Photovoltaic Roof Sandwich Panels system

Product specifications

Panel type :	Photovoltaic Roof Panels
Effective width	950/1000mm
Panel thickness	50/ 75/ 100/ 150mm
Coating type	PE, SMP, HDP, PVDF
Steel sheet (GI/PPGI/PPGL)	0.40-0.75 mm
Aluminum metal sheets	0.60-1.20 mm
Surface sheets	Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm
	Aluminum metal sheets:0.60-1.20 mm
	Aluminum foils:0.065 mm
	PVC sheets
Core material	PIR/PUR	Rockwool with PU edges	Glass wool with PU edges
Core density	35-45 kg/m3	110-150 kg/m3	48-64 kg/m3
Thermal conductivity	≤0.023 w/m· k	0.035-0.041 w/m·k	0.035-0.041 w/m·k

Packing & Delivery

☆ Packing

Seaworthy packing standards:

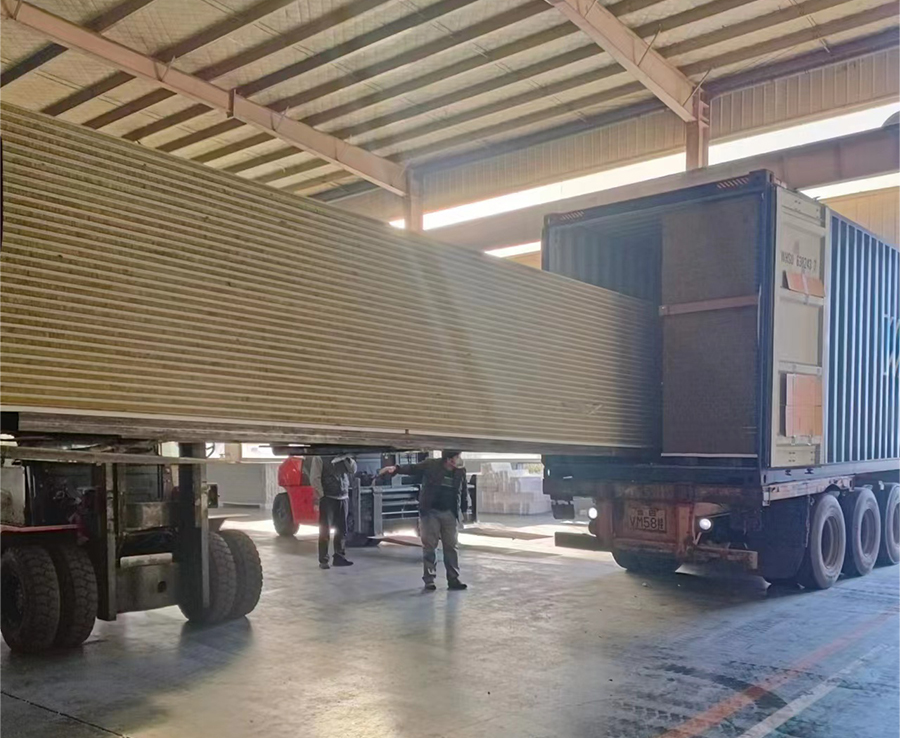

Rockwool sandwich panels packing

Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.

If there is other package requested,please feel free to discuss with Yumisteel sales team.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

Service&Support

☆Service

Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

1)Professional sales team,One-to-one service;

2)Combination of industry and trade company,to ensure the service and price;

3)Experienced engineer team to offer professional technology service;

4)Intimate after-sales service.

☆Support

Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.

hot tags : Fire resistant insulated panel Photovoltaic roof sandwich panel PIR solar roof panels Photovoltaic sandwich panel Fireproof solar roof panel Composite solar panels
