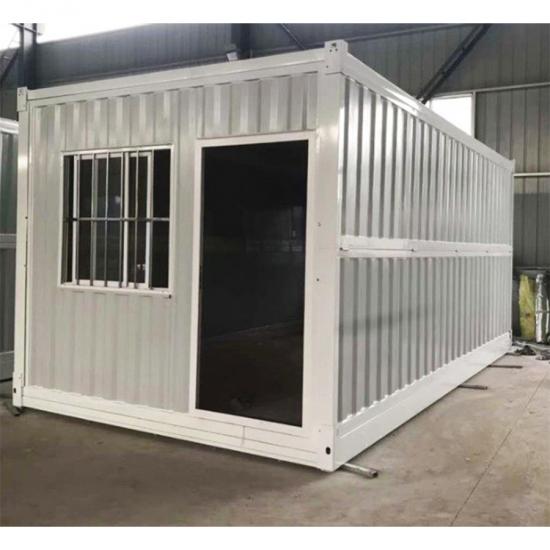

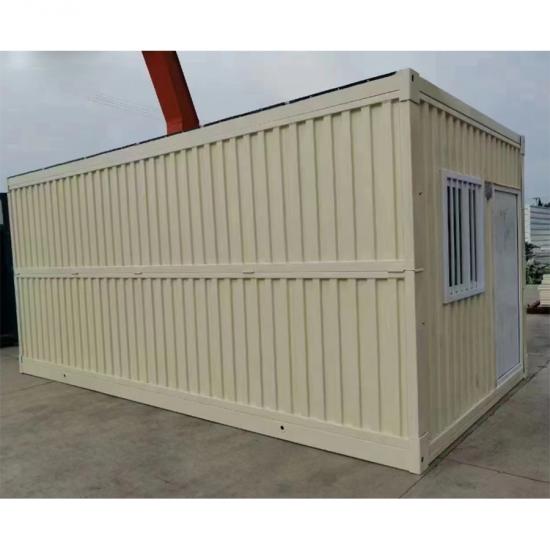

Prefabricated modern luxury flat pack container house
20ft prefabricated container house is built with cold-rolled steel plates and use sandwich panels for wall insulation. MOQ:1 set
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized

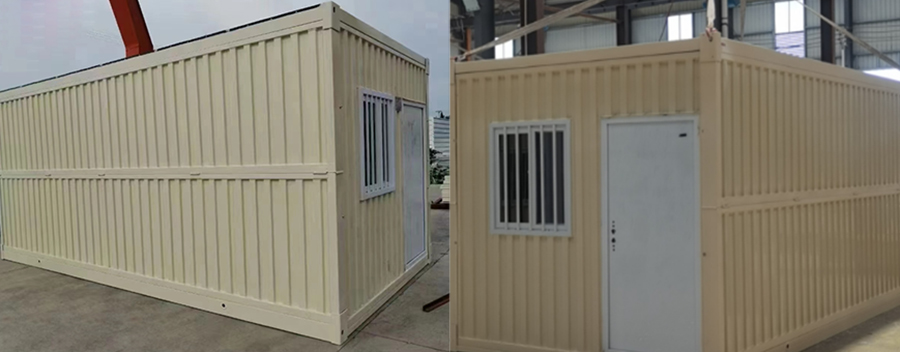

What is foldable container house?

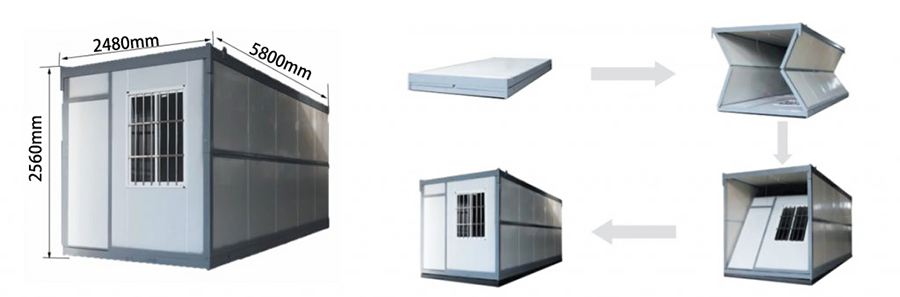

Foldable container house is a prefabricated modular structure with steel frames and wall panels connected by heavy-duty hinges, allowing it to be collapsed for transport. It offers quick on-site assembly, excellent durability, thermal insulation, and weather resistance, making it ideal for portable and temporary housing solutions.
Product specification
|
Material list of folding container house |
||||||
|
|
|
|
|
|
|
|
|
Item |
Details |
Material |
Type |
Thickness |
Unit |
QTY |
|
Base data |

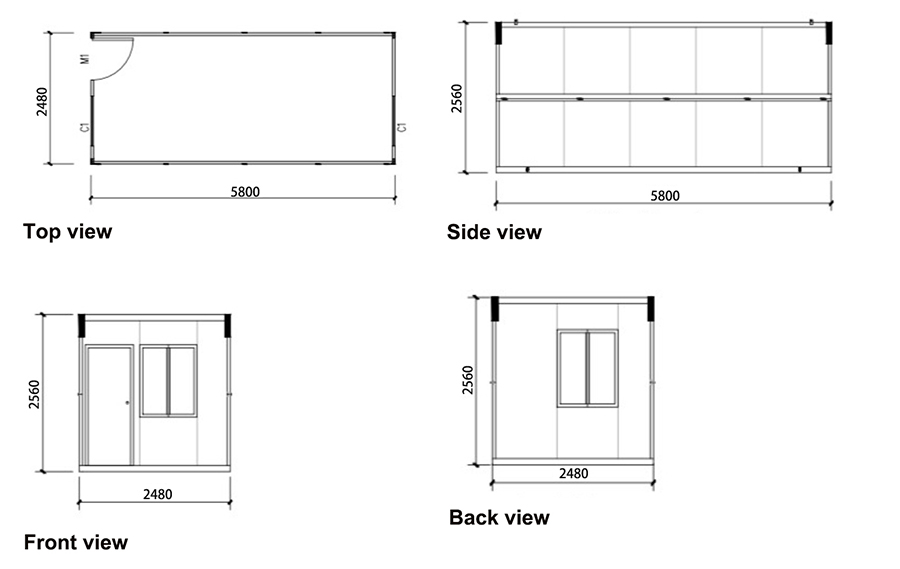

External size(mm) |
5800*2480*2560 |
|
|
|
|
|
Internal size (mm) |
5640*2320*2430 |
|
|
|
||
|
Folding size(mm) |
5800*2480*410 |
|
|
|
||
|
Weight(kg) |
1300 |
|
|
|
||
|
Design Parameters |
Structural design service life |
10-15 years |
|
|
|
|
|
Floor live load |
200kg/㎡ |
|
|
|
||
|
Roof live load |
100kg/㎡ |
|
|
|
||
|
Wind load |
8 level |
|
|
|
||
|
Earthquake resistance level |
10 level |
|
|
|
||
|
Heat-resistant temperature |
- 40 ℃ ~40 ℃ |
|
|
|
||
|
Quantities that 1*40HC container can load |
10 sets |
|
|
|
||
|
Framework |
Roof part |
Q235B square tube |
40*80*2.44m |
1.8 |
PC |
5 |
|
Q235B square tube |
20*40*5.9m |
1.8 |
PC |
1 |
||
|
Q235B square tube |
80*80*5.64m |
1.8 |
PC |
2 |
||
|
P shaped tube |
40*80 |
1.8 |
PC |
2 |
||
|
Galvanized steel sheet |
5.75m*1.5m |
0.8 |
PC |
2 |
||
|
Glass wool insulation |
12m*1.5m |
0.75 |
M |
12 |
||
|
Ceiling panels |
|
0.37 |
PC |
3 |
||
|
Material for 5800mm long side |
Q235B square tube |
40*80 |
1.8 |
PC |
8 |
|
|
L shaped steel(Galvanized) |
1.165m |
2 |
PC |
4 |
||
|
L shaped steel(Galvanized) |
1.180m |
2 |
PC |
4 |
||
|
P shaped tube |
40*80*5.84m |
1.8 |
PC |
8 |
||
|
P shaped tube |
1.05m |
1.8 |
PC |
4 |
||
|
Hinge |
High strength |
1.8 |
PC |
34 |
||
|
Wall panels |
1080*2.88m |
0.3 |
PC |
8 |
||
|
Galvanized corner steel |
1.08m |
0.8 |
PC |
16 |
||
|
D type E type rubber strip |
5.9m |
|
PC |
24 |
||
|
Material for 2480mm long side |
P shaped tube |
2640 |
1.8 |
PC |
4 |
|
|
2485 |
1.8 |
PC |
4 |
|||
|
2400 |
1.8 |
PC |
1 |
|||
|
860 |
1.8 |
PC |
1 |
|||
|
Wall panels |
950 |
0.3 |
M |
8.66 |
||
|
Galvanized corner steel |
50# |
0.8 |
M |
20.41 |
||
|
Windows |
|
|
PC |
2 |
||
|
Hanging head baffle |
|
|
PC |
8 |
||
|
Door |
|
|
PC |
1 |
||
|
Vinyl strip |
|
|
M |
21.32 |
||
|
Floor part |
Custom bottom beam (galvanized) |
160*80*5.9m |
2 |
PC |
2 |
|
|
80*80 |
1.8 |
PC |
2 |
|||
|
Hinge |
High strength |
|
PC |
4 |
||
|
C purlin |
|
1.8 |
PC |
14 |
||
|
Floor panel |
1165*2690 |
15mm |
PC |
5 |
||
|
Corner steel |
30# |
|
PC |
3.5 |
||
|
Roof top treatment |
Overall frame coating |
Electrostatic spray/straight white powder |
||||
|
External steel |
Galvanized sheet,0.8mm thickness |
|||||
|
Internal ceiling panels |
Single skin color steel,V830,0.40mm thickness |
|||||
|
Wall panel |
5800mm long side |
75mm thick glass wool sandwich panels, Surface color steel sheet:0.40mm |
||||
|
2480mm long side |
75mm thick glass wool sandwich panels, Surface color steel sheet:0.40mm |
|||||
|
Floor panel |
Fireproof glass magnesium floor, size:1165*2690mm,thickness:18mm |
|||||
|
Electrical System |
Electrical wiring shall be installed in strict accordance with moisture-proof regulations. All electrical products comply with CE certification. Connect the circuit according to the circuit engineering specifications, indoor: 4² national standard soft copper wire, 1 20A circuit breaker, 2.5² socket inlet, 1 five-hole single-open socket, 1 five-hole socket, and 1 LED light. |
|||||
|
Security door |
High-quality steel security door (warm white) Size:980mm*1980mm*75mm |
|||||
|
Window |
920*920 single glass sliding window, plastic steel window, with protective fence, screen window, glass thickness 4mm (warm white) |
|||||
Product advantage
☆Easy Installation
Its innovative folding design allows for rapid on-site deployment. Major components are pre-assembled, significantly reducing construction time and labor costs compared to traditional building methods.
☆Effortless Transportation
When fully collapsed, the unit occupies minimal space. This compactness drastically reduces shipping volume, allowing for cost-effective logistics and easier movement to remote or difficult-to-access sites.
☆Low-Cost Solution
The combination of efficient factory prefabrication, reduced shipping fees, and minimal on-site labor requirements makes this folding container house a highly affordable and economical housing alternative.
☆Modular Flexibility
Designed with a modern modular approach, these units can be easily combined or stacked in various configurations. This allows for customizable layouts to create larger spaces tailored to specific needs.

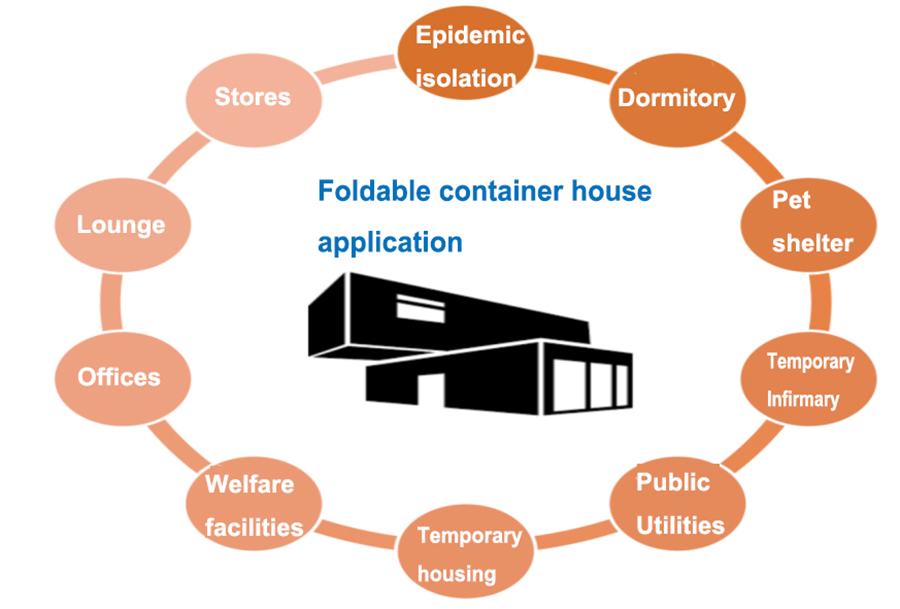

Product application
This versatile modular folding container house is ideally suited for a wide range of applications including emergency epidemic isolation units, temporary housing, site offices, mobile stores, dormitories, portable infirmaries, public utility stations, welfare facilities, pet shelters, and commercial lounges.
Packing & Delivery

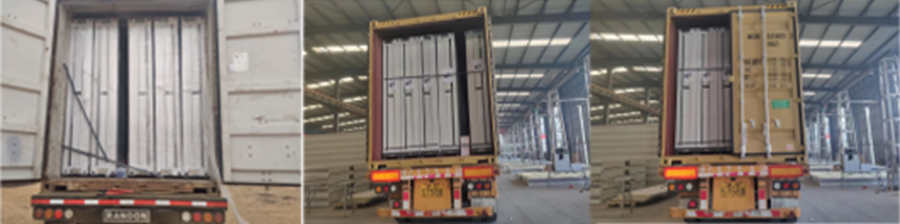

☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
