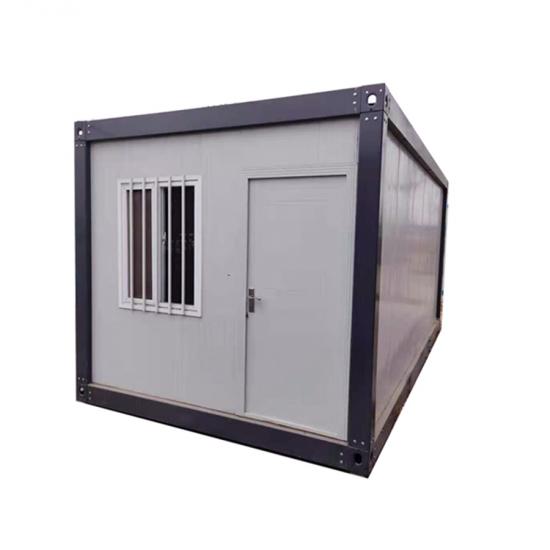

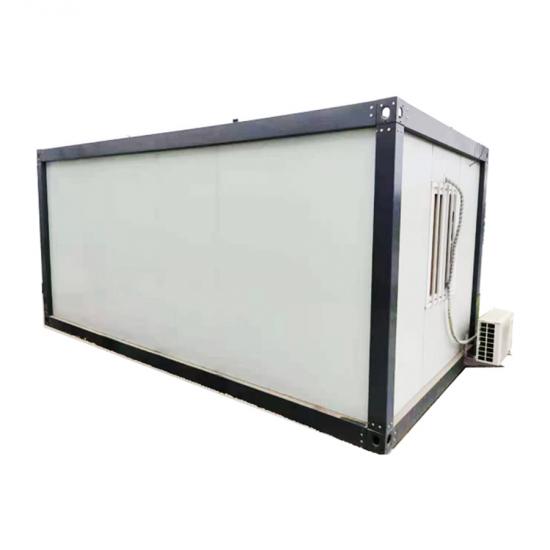

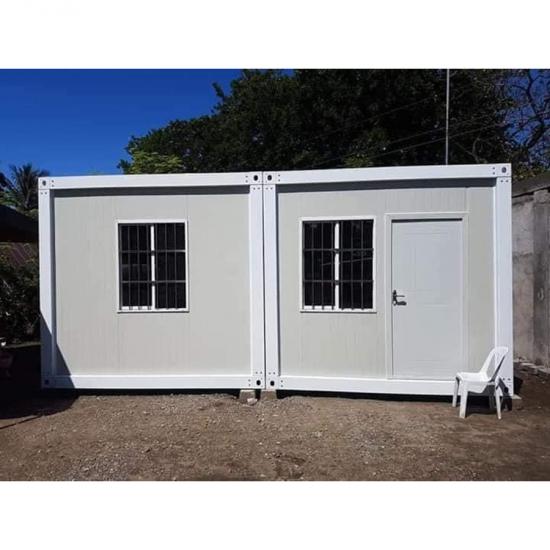

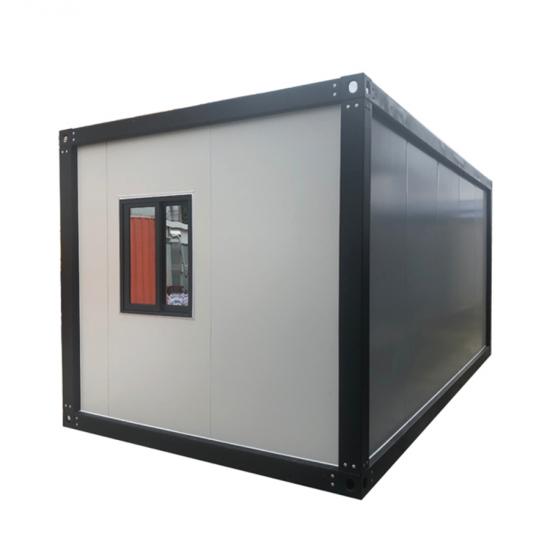

Prefabricated modern luxury flat pack container house
20ft prefabricated container house is built with cold-rolled steel plates and use sandwich panels for wall insulation. MOQ:1 set
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
CustomizedProduct introduction

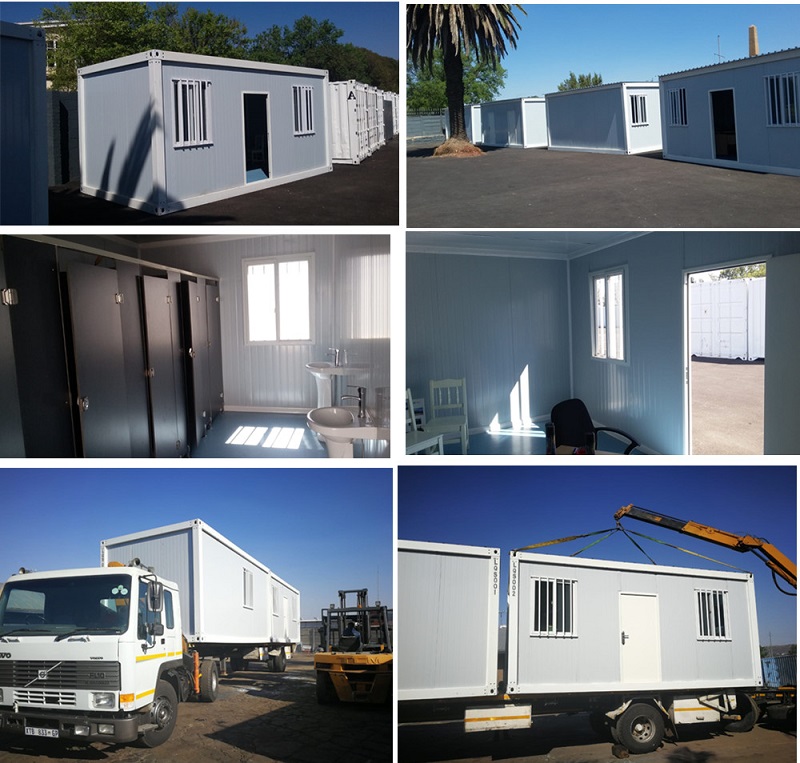

Quick assemble container
All the material ared in scattered status,you should have one professional installation team to assemble them together.Also the sealing and waterproof is very important.
Standard size：5950*3000*2800mm(L*W*H).with 2.5mm steel frames+50mm rockwool wall sandwich panels.1*40HC can load 14sets.
Product specification
|
Quick Assembled Container house(Standard size) |
||||
|
External Size:5950X3000X2800mm |
Internal Size:5750X2800X2500mm |
|||
|
NO. |
Item |
Material specification |
Quantity |
|
|
1 |
Wall panels |
50 mm thick Rockwool sandwich panels; |
39.52 M² |
|
|
2 |
||||
|
3 |
||||
|
4 |
Main frames |
Bottom beams:2.50mm(±0.2mm) thickness |
1 Set |
|
|
5 |
Upper beams:2.50mm(±0.2mm) thickness |
|||
|
6 |
Steel post:2.50mm (±0.2mm) thickness |
|||
|
7 |
Groove plates(To connect Upper beam and wall panels) |
|||
|
8 |
Corner angle steel(for each corner):8PCs |
|||
|
9 |
Galvanized square tube |
Floor purlins:80*80*1.20mm(±0.2mm) |
1 Set |
|
|
10 |
Floor purlins:40*80*1.20mm(±0.2mm) |
|||
|
11 |
Roof purlins:50*50*1.50mm(±0.2mm) |
|||
|
12 |
Roof purlins:40*80*1.20mm(±0.2mm) |
|||
|
13 |
Roof purlins:40*60*1.20mm(±0.2mm) |
|||
|
14 |
Aluminum L angle |
Size:25*25*0.70mm |
17 m |
|
|
15 |
Roof panels |
Panel width:980mm |
1 Set |
|
|
16 |
Ceiling tile |
Panel width:980mm |
||
|
17 |
Glass wool insulation coil for roof |
20mm thick Glass wool coils |
||
|
18 |
Anti-theft steel door |
2110*975mm(Height*Width) galvanized steel door, |
1 Set |
|
|
19 |
Anti-theft window |
Plastic steel sliding window |
2 Sets |
|
|
20 |
Fireproof floor |
Size:2.8m*1.147m(Length*Width) |
5 PCs |
|
|
21 |
Paint (painting process) |
Color available:Whit/Gray Blue/Black/Red |
Special paint for ships, acid and alkali resistant, corrosion resistant, color retention |
1 Set |
|
|
Fasteners |
High-strength bolt, self-tapping, rivet,sealants,etc |
1 Set |
|
Product advantage
☆Rapid Installation
These prefab homes feature pre-engineered components that enable incredibly fast on-site assembly. This significantly reduces construction time and labor costs compared to traditional building methods.
☆Cost-Effectiveness
The streamlined manufacturing and quick assembly process makes these container houses a highly affordable housing solution. You achieve substantial savings on both construction and labor expenses.
☆Mobility and Flexibility
A key advantage is their inherent mobility. These homes can be easily relocated to different sites as needed, offering unparalleled flexibility for changing project requirements or locations.
☆Eco-Friendly and Recyclable
Constructed using recyclable materials, primarily steel containers, these homes are a sustainable choice. This reduces environmental impact and supports green building initiatives.
Product application

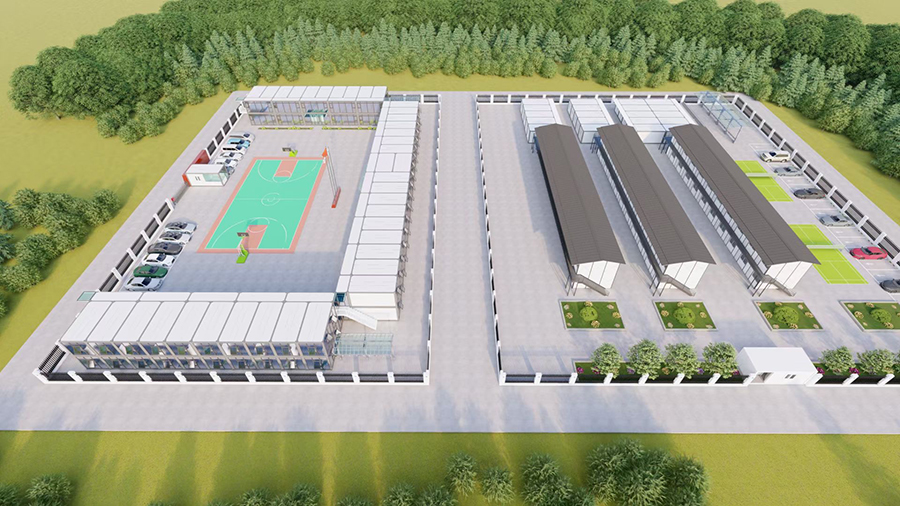

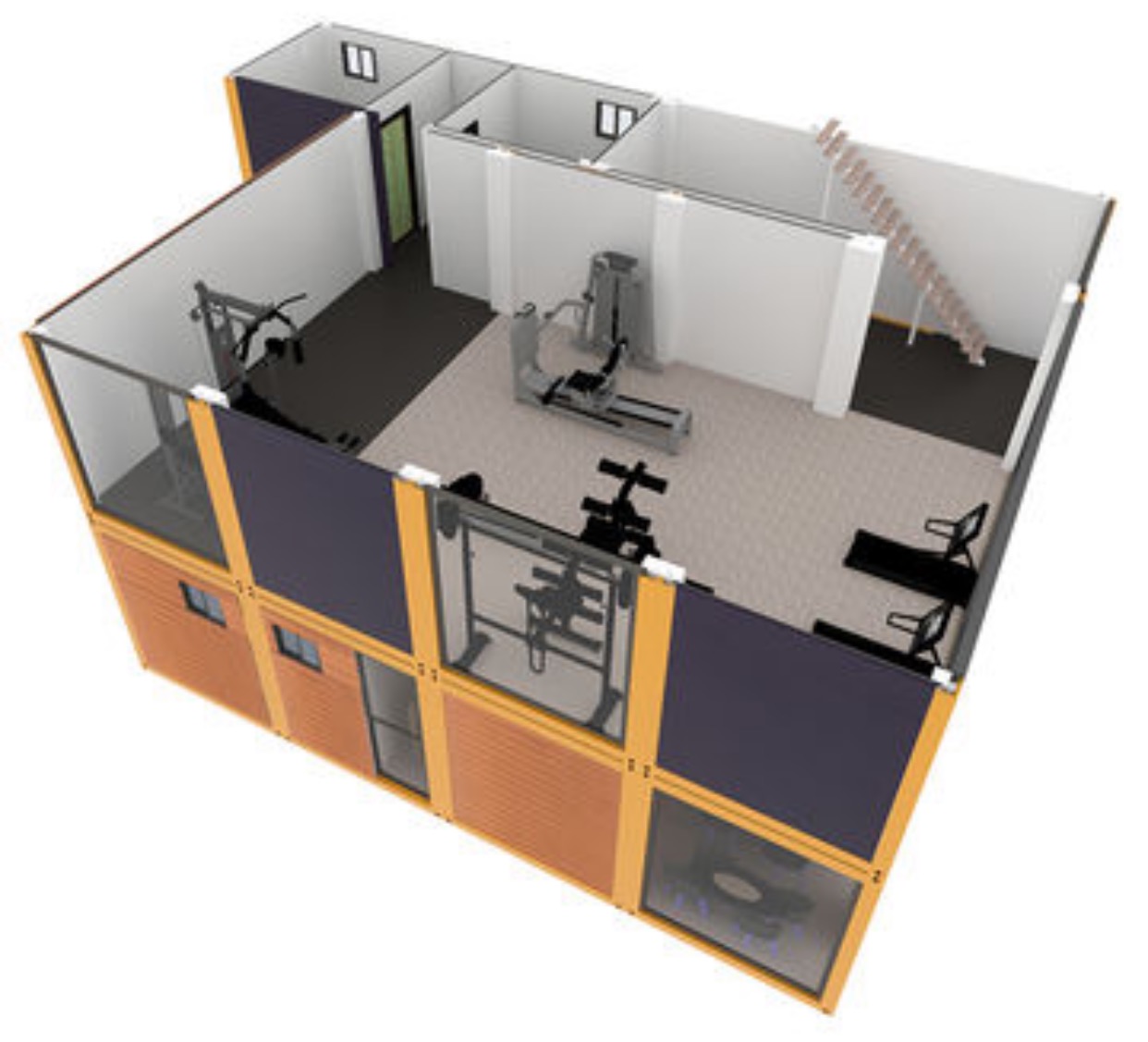

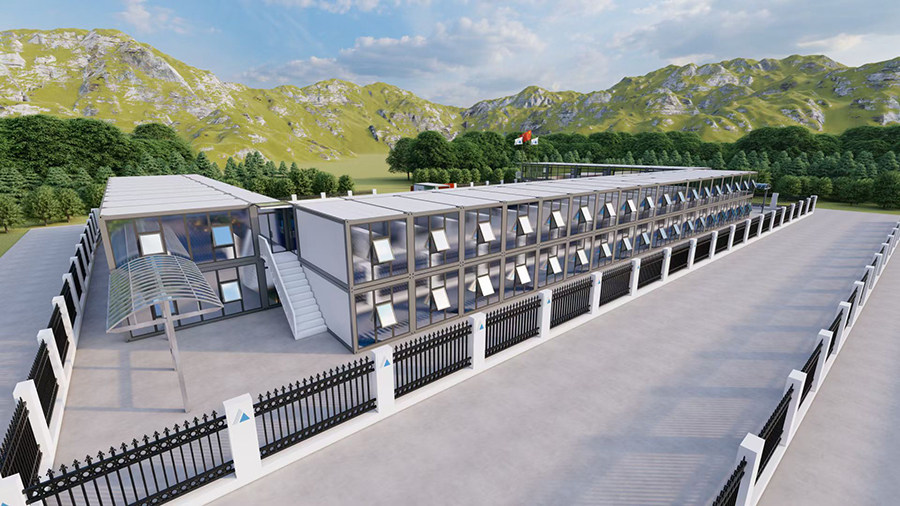

Quick assembled container houses are ideal for diverse applications including temporary site offices, emergency disaster relief shelters, compact residential homes, portable pop-up shops, and comfortable backyard studios. Their versatility also extends to creating mobile healthcare clinics and modular hotel rooms.
Packing & Delivery

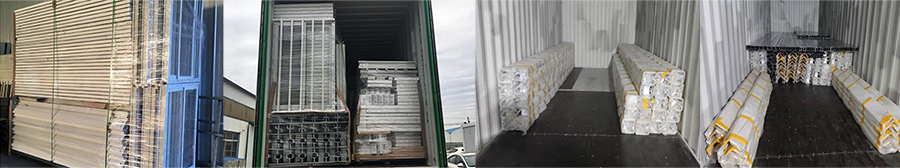

☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
