Prefabricated modern luxury flat pack container house
20ft prefabricated container house is built with cold-rolled steel plates and use sandwich panels for wall insulation. MOQ:1 set
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
All the parts are already made in our workshop,it's quick and easy installation.The side frame is made of stainless steel,and the roof is specially treated to make it more waterproof.Only 10 minutes to install a house,just 3 steps,2 people.
Standard size：5800*2480*2580mm(L*W*H).1*40HC can load 10 sets.
Product specification
|
Material list of folding container house |
||||||
|
|
|
|
|
|
|
|
|
Item |
Details |
Material |
Type |
Thickness |
Unit |
QTY |
|
Base data |
External size(mm) |
5800*2480*2560 |
|
|
|
|
|
Internal size (mm) |
5640*2320*2430 |
|
|
|
||
|
Folding size(mm) |
5800*2480*410 |
|
|
|
||
|
Weight(kg) |
1300 |
|
|
|
||
|
Design Parameters |
Structural design service life |
10-15 years |
|
|
|
|
|
Floor live load |
200kg/㎡ |
|
|
|
||
|
Roof live load |
100kg/㎡ |
|
|
|
||
|
Wind load |
8 level |
|
|
|
||
|
Earthquake resistance level |
10 level |
|
|
|
||
|
Heat-resistant temperature |
- 40 ℃ ~40 ℃ |
|
|
|
||
|
Quantities that 1*40HC container can load |
10 sets |
|
|
|
||
|
Framework |
Roof part |
Q235B square tube |
40*80*2.44m |
1.8 |
PC |
5 |
|
Q235B square tube |
20*40*5.9m |
1.8 |
PC |
1 |
||
|
Q235B square tube |
80*80*5.64m |
1.8 |
PC |
2 |
||
|
P shaped tube |
40*80 |
1.8 |
PC |
2 |
||
|
Galvanized steel sheet |
5.75m*1.5m |
0.8 |
PC |
2 |
||
|
Glass wool insulation |
12m*1.5m |
0.75 |
M |
12 |
||
|
Ceiling panels |
|
0.37 |
PC |
3 |
||
|
Material for 5800mm long side |
Q235B square tube |
40*80 |
1.8 |
PC |
8 |
|
|
L shaped steel(Galvanized) |
1.165m |
2 |
PC |
4 |
||
|
L shaped steel(Galvanized) |
1.180m |
2 |
PC |
4 |
||
|
P shaped tube |
40*80*5.84m |
1.8 |
PC |
8 |
||
|
P shaped tube |
1.05m |
1.8 |
PC |
4 |
||
|
Hinge |
High strength |
1.8 |
PC |
34 |
||
|
Wall panels |
1080*2.88m |
0.3 |
PC |
8 |
||
|
Galvanized corner steel |
1.08m |
0.8 |
PC |
16 |
||
|
D type E type rubber strip |
5.9m |
|
PC |
24 |
||
|
Material for 2480mm long side |
P shaped tube |
2640 |
1.8 |
PC |
4 |
|
|
2485 |
1.8 |
PC |
4 |
|||
|
2400 |
1.8 |
PC |
1 |
|||
|
860 |
1.8 |
PC |
1 |
|||
|
Wall panels |
950 |
0.3 |
M |
8.66 |
||
|
Galvanized corner steel |
50# |
0.8 |
M |
20.41 |
||
|
Windows |
|
|
PC |
2 |
||
|
Hanging head baffle |
|
|
PC |
8 |
||
|
Door |
|
|
PC |
1 |
||
|
Vinyl strip |
|
|
M |
21.32 |
||
|
Floor part |
Custom bottom beam (galvanized) |
160*80*5.9m |
2 |
PC |
2 |
|
|
80*80 |
1.8 |
PC |
2 |
|||
|
Hinge |
High strength |
|
PC |
4 |
||
|
C purlin |
|
1.8 |
PC |
14 |
||
|
Floor panel |
1165*2690 |
15mm |
PC |
5 |
||
|
Corner steel |
30# |
|
PC |
3.5 |
||
|
Roof top treatment |
Overall frame coating |
Electrostatic spray/straight white powder |
||||
|
External steel |
Galvanized sheet,0.8mm thickness |
|||||
|
Internal ceiling panels |
Single skin color steel,V830,0.40mm thickness |
|||||
|
Wall panel |
5800mm long side |
75mm thick glass wool sandwich panels, Surface color steel sheet:0.40mm |
||||
|
2480mm long side |
75mm thick glass wool sandwich panels, Surface color steel sheet:0.40mm |
|||||
|
Floor panel |
Fireproof glass magnesium floor, size:1165*2690mm,thickness:18mm |
|||||
|
Electrical System |
Electrical wiring shall be installed in strict accordance with moisture-proof regulations. All electrical products comply with CE certification. Connect the circuit according to the circuit engineering specifications, indoor: 4² national standard soft copper wire, 1 20A circuit breaker, 2.5² socket inlet, 1 five-hole single-open socket, 1 five-hole socket, and 1 LED light. |
|||||
|
Security door |
High-quality steel security door (warm white) Size:980mm*1980mm*75mm |
|||||
|
Window |
920*920 single glass sliding window, plastic steel window, with protective fence, screen window, glass thickness 4mm (warm white) |
|||||
Product advantage
☆Easy Relocation & Mobility
Designed with integrated lifting points and a compact folded profile, this mobile home can be easily transported by standard truck to any desired location, offering true flexibility and nomadic living.
☆Space-Saving Design
The innovative folding mechanism allows the entire structure to collapse into a compact unit, drastically reducing its footprint for efficient storage or transport when not in use.
☆Simple & Quick Installation
Pre-assembled components and a straightforward unfolding process enable rapid on-site setup, typically requiring minimal tools and no heavy machinery, saving significant time and labor.
☆Low-Cost Solution
Achieved through efficient factory prefabrication, reduced material waste, and minimized shipping volume, this foldable mobile home provides a highly affordable and economical alternative to traditional construction.

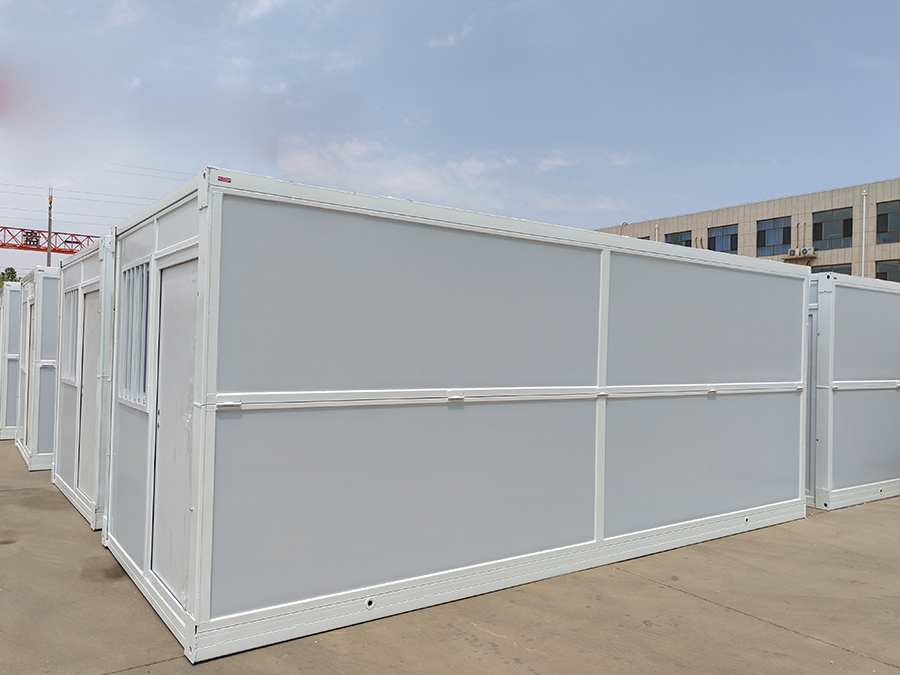

Product application

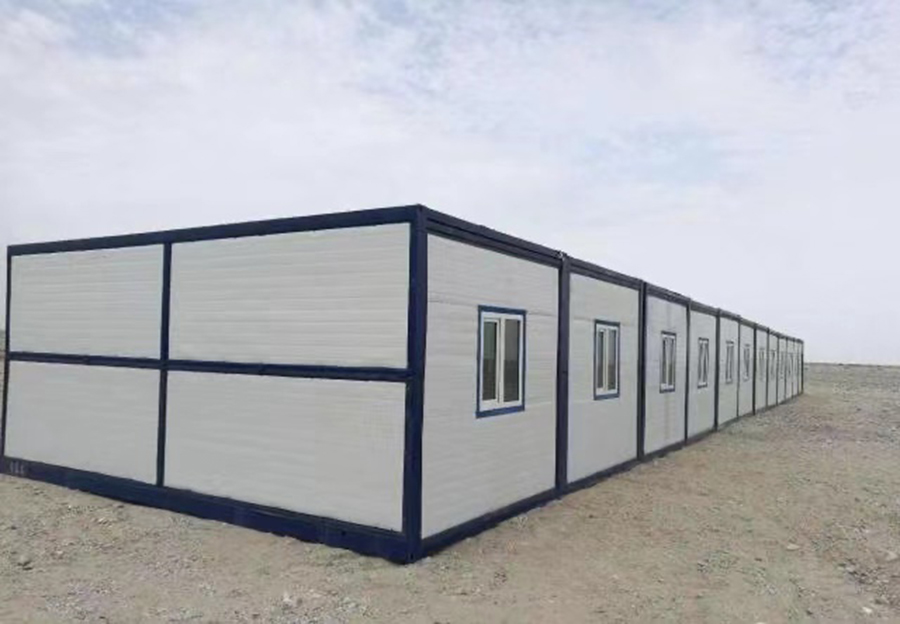

These folding container houses are ideal as a temporary housing solution, emergency shelter, site office, pop-up retail store, vacation cabin, or backyard studio. Its mobility and compact design also make it perfect for use as a classroom, clinic, or guard booth in various urban and remote settings.

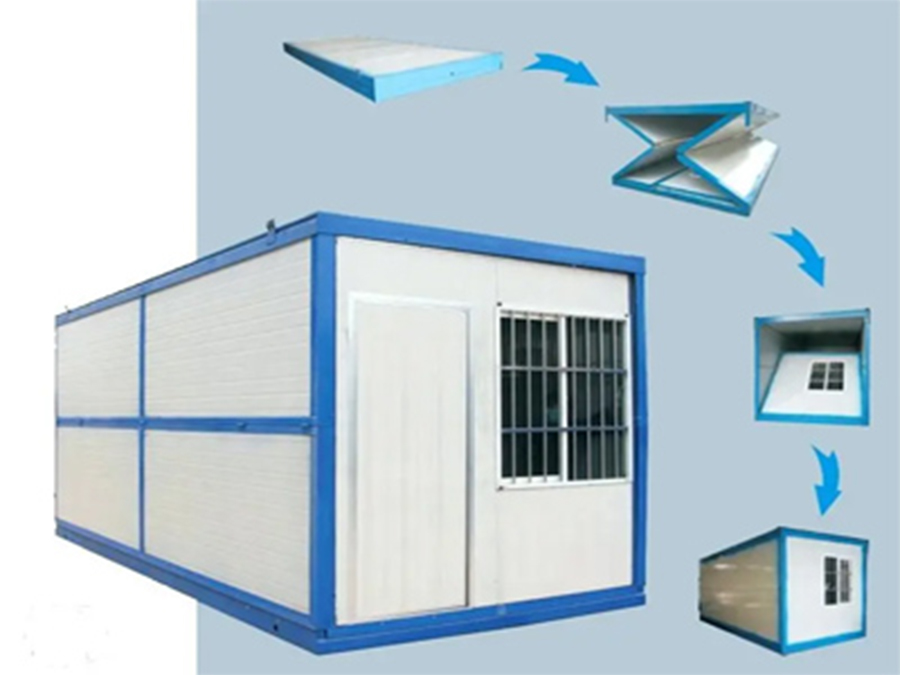

Installation
Packing & Delivery

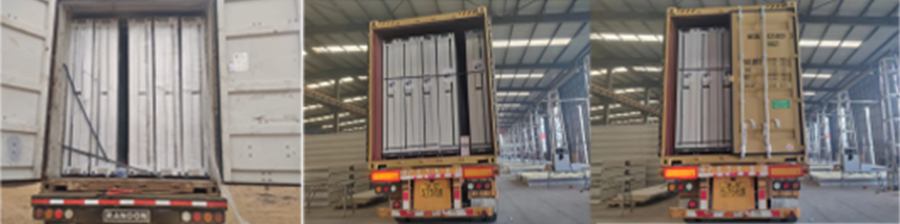

☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
