50mm pioneer coloured PUR/PIR insulated wall sandwich panels
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product introduction
A cleanroom panel is a building material used to construct the walls, ceilings, and floors of controlled, contamination-free environments known as cleanrooms. These panels are designed to create airtight, smooth, and easy-to-clean surfaces that minimize airborne particles, making them essential for industries like pharmaceuticals, biotechnology, electronics, and food processing. They are available in various materials, such as stainless steel, galvanized iron, and high-pressure laminate, chosen based on the specific cleanliness, durability, and fire-resistance needs of the facility.

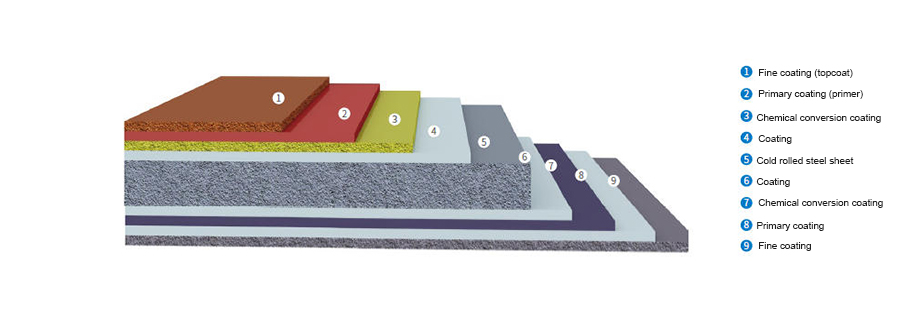

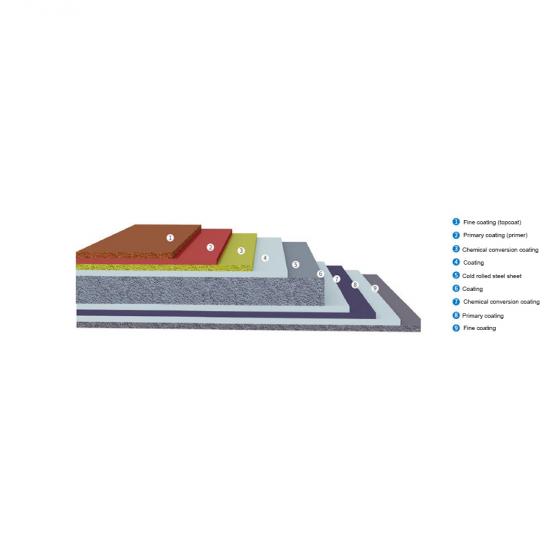

Product Composition
Fine coating (topcoat)+Primary coating (primer)+Coating+Cold rolled steel sheet+Coating+Chemical conversion coating+Primary coating+Fine coating
Product features
☆Contamination control
Panels form the physical barriers of a cleanroom, sealing it off from external contaminants and maintaining the required level of cleanliness.
☆Airtight and insulated
They are engineered to be airtight, which helps control airflow, temperature, and humidity.
☆Easy to clean
Smooth, non-porous surfaces are crucial for rigorous cleaning and sterilization protocols without shedding particles.
☆Structural integrity
Panels provide the strength and stability needed for a cleanroom environment, with some systems designed for durability and fire resistance.
Product specifications
|
Panel name |
Cleanroom Sandwich Panel |
|
Effecitve width |
980/1180mm |
|
Core thickness |
50-150mm |
|
Coating type |
PE, SMP, HDP, PVDF |
|
Steel sheet (GI/PPGI/PPGL) |
0.40-0.75 mm |
|
Aluminum metal sheets |
0.60-1.20 mm |
|
Surface sheets |
Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm |
|
Aluminum metal sheets:0.60-1.20 mm |
|
|
Aluminum foils:0.065 mm |
|
|
PVC sheets |
|
|
Core material |
PU |
|
Core density |
35-45kg/m3 |
|
Thermal conductivity |
≤0.023 w/m· k |

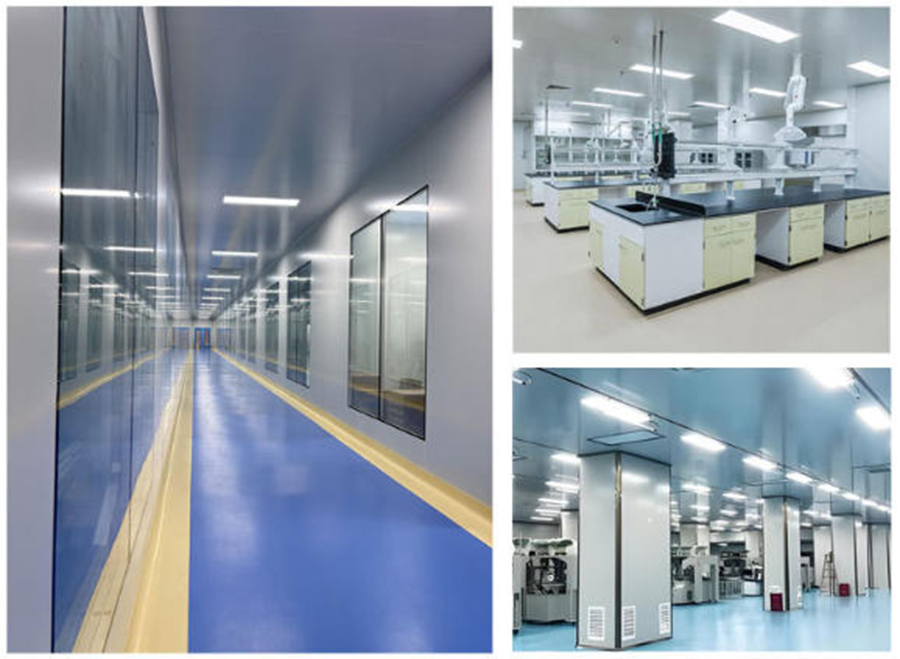

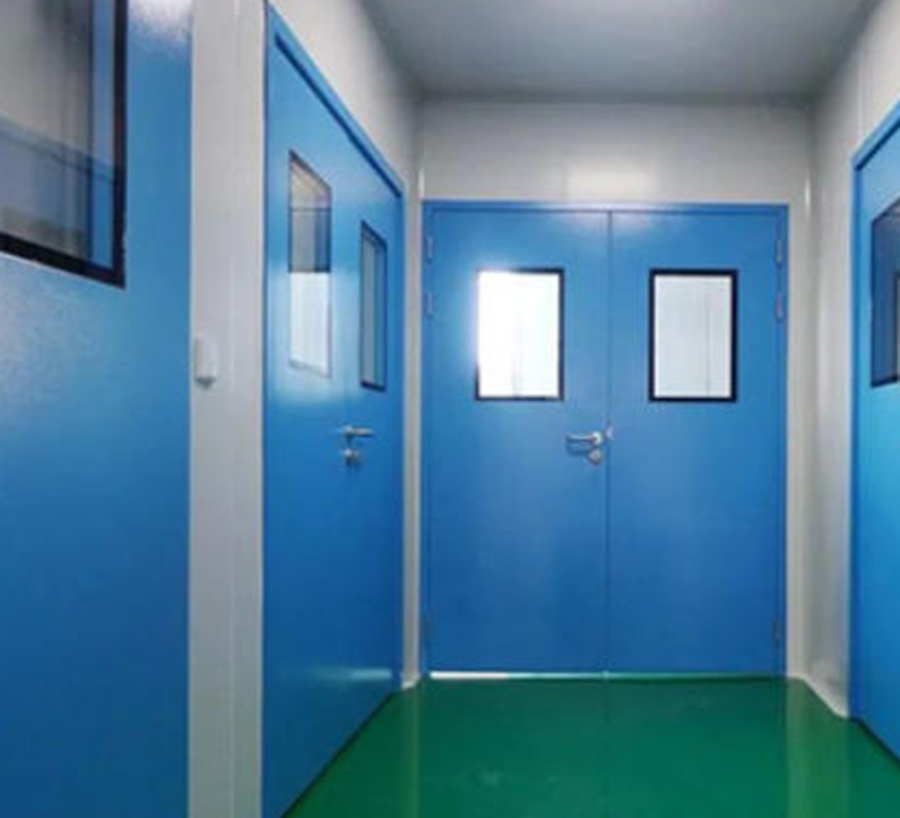

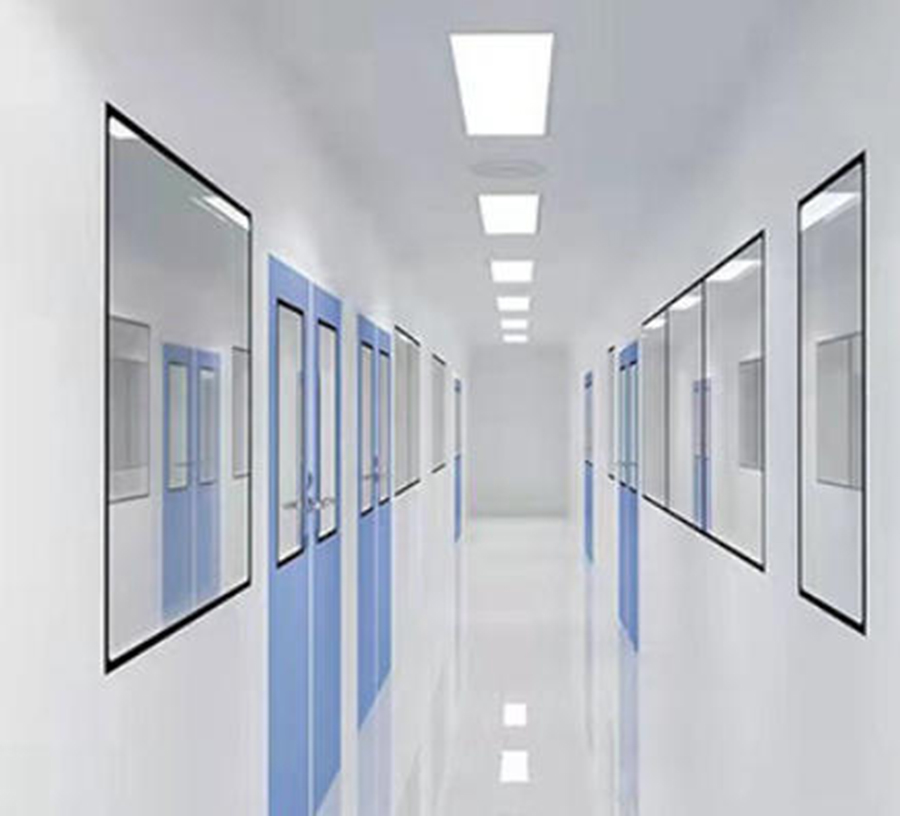

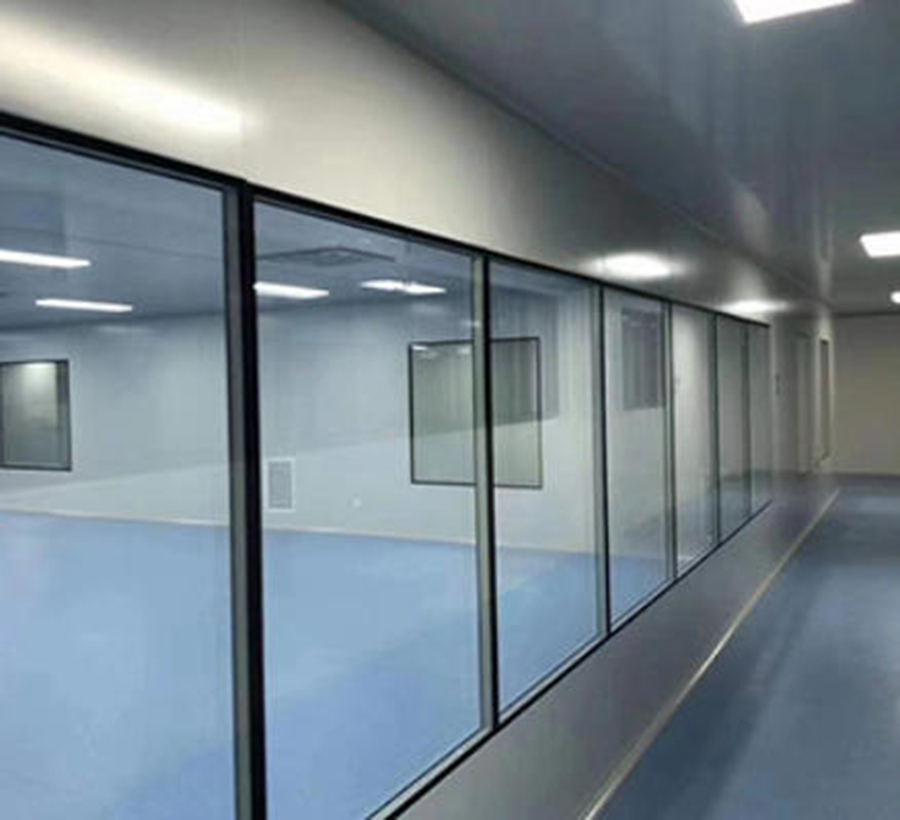

Product applications
Cleanroom panels are used to construct specialized controlled environments essential for industries that require strict contamination control. Applications include electronics manufacturing, pharmaceutical labs and operating rooms, food processing facilities, and hazardous material laboratories. These panels provide the physical barriers for the cleanroom, ensuring it is sealed against external pollutants and contaminants.
Packing & Delivery
☆ Packing
·Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
The PU sandwich wall panel is widely used in the large-sized factory buildings, warehoused, cold room, storages, parking shed, exhibition halls, gymnasiums, etc. MOQ:500M²/Color & Size
35mm thick PU wall sandwich panels can be 930mm,1000mm or 1120mm.This is an affordable option.MOQ:500 M²/Color & Size
Insulated Polyisocyanurate (PIR) sandwich panels in 75mm thickness,is a favorable choice for cold room projects. MOQ:500 M²/ Color & Size.
100mm is a regular thickness for cold room panels,our tongue and groove joint PIR panel can be your best choice. MOQ:500 M²/ Color & Size
PIR sandwich panel with high density, ranges from 45-55 kg/m³, the thermal ocnductivity as low as 0.018W/mK, applicable for cold room storage facilities. MOQ: 500㎡ color&size
