50mm pioneer coloured PUR/PIR insulated wall sandwich panels
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
item no.:
N/Aproduct orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product Introduction
Designed to solve the critical challenges of cold storage environments,including temperature instability, energy inefficiency, and condensation risks,our PU Insulated Polyurethane Sandwich Panels deliver exceptional thermal performance with minimal thickness. The high-density polyurethane core provides superior insulation, preventing thermal bridging and moisture infiltration while ensuring consistent temperatures. Perfect for cold storage warehouses, food processing facilities, pharmaceutical cold chain centers, and refrigerated distribution hubs, these panels offer reliable performance, reduced energy costs, and long-term durability.
Product Specification
|
Type |
PU/PIR Sandwich Panel |
|
Thickness |
40/50/60/75/80/100/120/150/200mm |
|
Metal skin thickness |
0.4~0.8mm |
|
Panel Effective Width |
1000mm for wall and roof |
|
Density |
40~45kg/m³ |
|
Skin material |
PPGL,PPGI,Stainless steel,aluminum coil Pre-painted PE/SMP/HDP/PVDF etc. |
|
Fireproof Grade |
B1 |
|
Thermal Conductivity |
≤0.023/≤0.02 |
|
Temperature Range |
40~43/40~50ºC |
|
Length |
Max 5.8m for 20GP container Max 11.8m for 40GP/HQ container |
Overlapping method

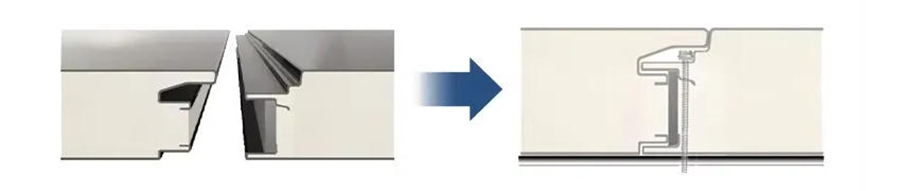

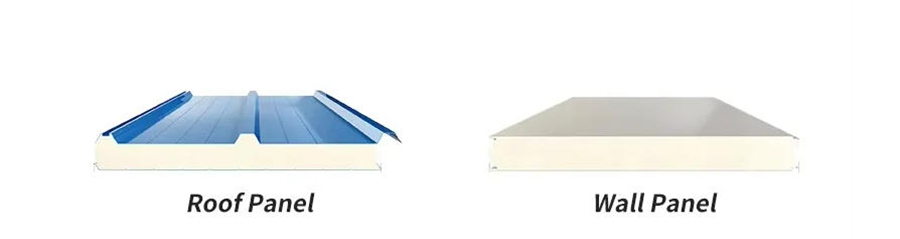

PU wall sandwich panel

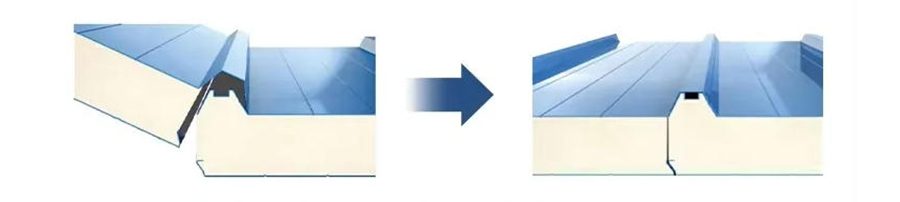

PU roof sandwich panel
Why choose us?
Yumisteel-Your Trusted Construction Material Partner
✅ Excellent Quality
High-grade production lines + strict quality management = reliable products every time.
✅ Prompt Delivery
Big production capacity ensures fast delivery and on-time shipment worldwide.
✅ Worldwide Sales
Exported to 80+ countries, trusted by global customers for superior quality.
✅ Diverse Product Range
Container Houses | Corrugated Sheets | Steel Frames | Floor Deck | Sandwich Panels & more.
✅ Outstanding Services
24/7 responsive communication—before, during, and after your purchase.
✅ Professional Team
One-stop solution from design consultation to final installation support.
✅ Competitive Price
Factory-direct pricing designed to fit your budget without sacrificing quality.
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
The PU sandwich wall panel is widely used in the large-sized factory buildings, warehoused, cold room, storages, parking shed, exhibition halls, gymnasiums, etc. MOQ:500M²/Color & Size
35mm thick PU wall sandwich panels can be 930mm,1000mm or 1120mm.This is an affordable option.MOQ:500 M²/Color & Size
Insulated Polyisocyanurate (PIR) sandwich panels in 75mm thickness,is a favorable choice for cold room projects. MOQ:500 M²/ Color & Size.
100mm is a regular thickness for cold room panels,our tongue and groove joint PIR panel can be your best choice. MOQ:500 M²/ Color & Size
PIR sandwich panel with high density, ranges from 45-55 kg/m³, the thermal ocnductivity as low as 0.018W/mK, applicable for cold room storage facilities. MOQ: 500㎡ color&size
