50mm exterior thermal rockwool wall sandwich panel
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product introduction
Rockwool wall and roof insulated sandwich panels are composite building materials with a core of fireproof rock wool insulation sandwiched between two metal sheets. They are prized for their excellent thermal insulation, high fire resistance, and acoustic performance. These panels are ideal for applications requiring speed and efficiency, such as industrial warehouses, cold rooms, and prefabricated buildings.
Product features
☆Construction
A three-layer system comprising an inner rock wool core and two outer metal facings (typically galvanized or aluminum steel sheets).
☆Fire resistance
The non-combustible nature of rock wool provides high fire protection, making these panels a top choice for safety.
☆Thermal insulation
The rock wool core helps regulate indoor temperatures, reducing energy consumption for heating and cooling.
☆Acoustic insulation
The panels effectively block unwanted noise, making them suitable for applications where soundproofing is critical, like workshops or residential buildings.
☆Fast installation
Their pre-fabricated nature and compatibility with other panels allow for quick and flexible installation, which can significantly shorten construction times.
☆Durability
The combination of durable metal facings and a long-lasting insulation core provides a stable and long-term building solution.
Product specifications
|
Panel name |
Rockwool Sandwich Panel |
|
Effective width |
500-1000mm |
|
Core thickness |
50-100mm |
|
Coating type |
PE, SMP, HDP, PVDF |
|
Steel sheet (GI/PPGI/PPGL) |
0.40-0.75 mm |
|
Aluminum metal sheets |
0.60-1.20 mm |
|
Surface sheets |
Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm |
|
Aluminum metal sheets:0.60-1.20 mm |
|
|
Aluminum foils:0.065 mm |
|
|
PVC sheets |
|
|
Core material |
Rockwool |
|
Core density |
80-160 kg/m3 |
|
Thermal conductivity |
0.035-0.041 w/m·k |
Product applications

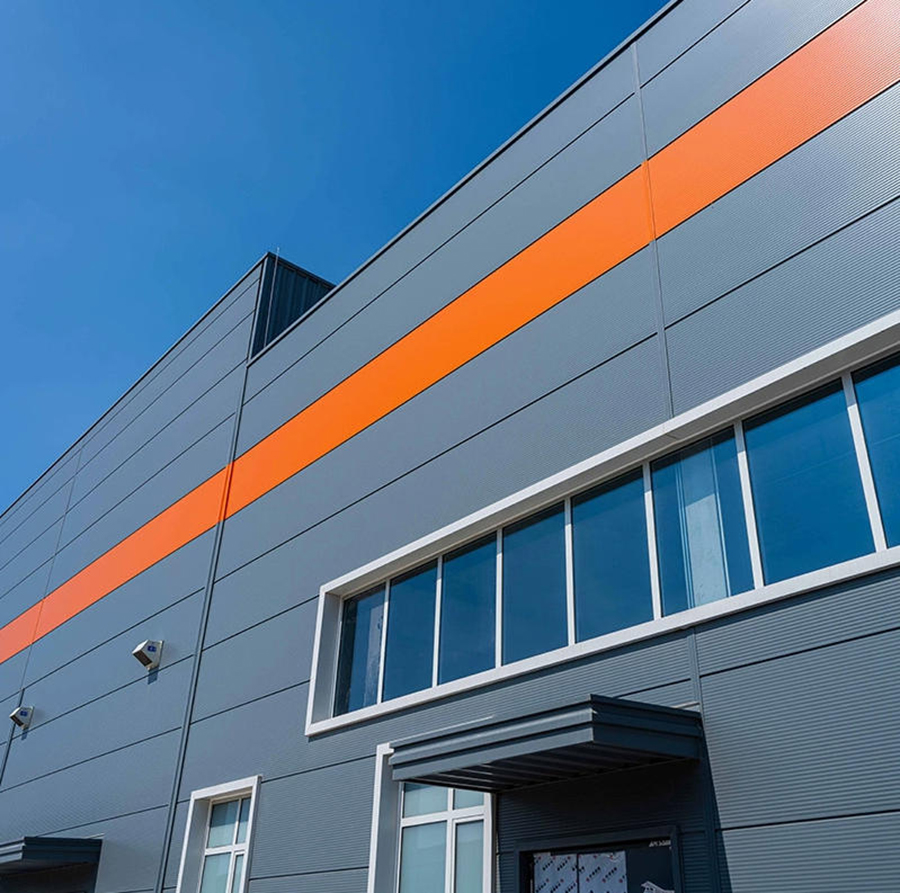

☆Industrial and commercial buildings
☆Warehouses

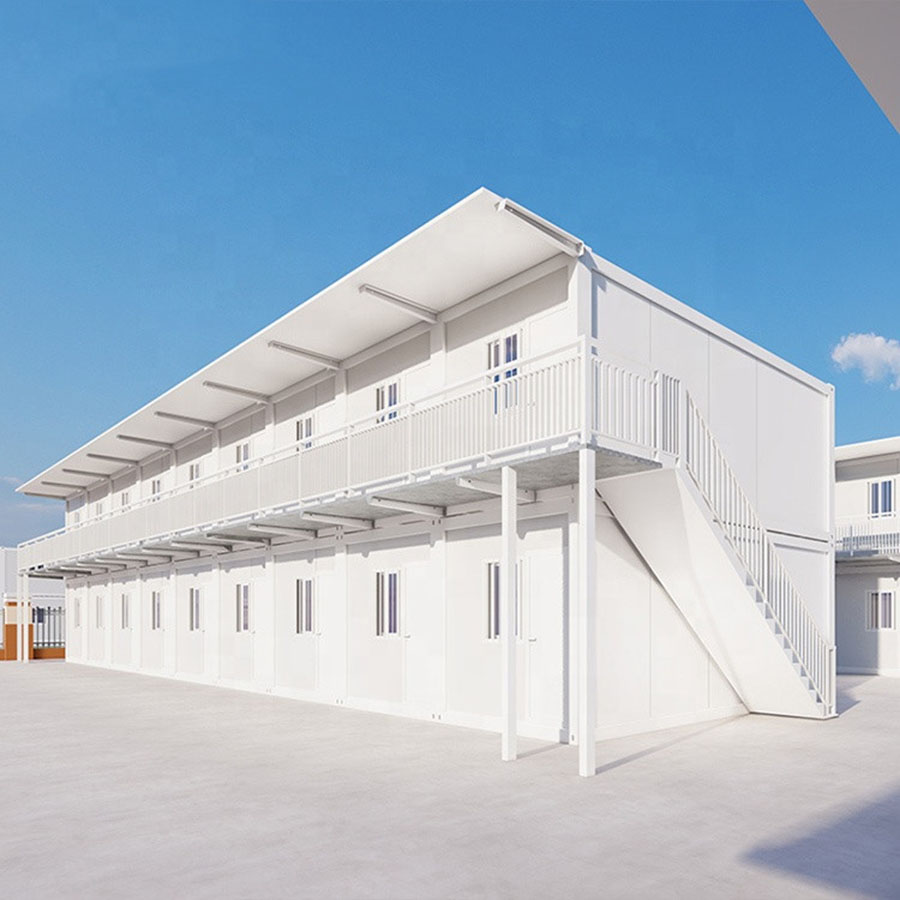

☆Prefabricated and container houses
☆
☆Partition walls and facades

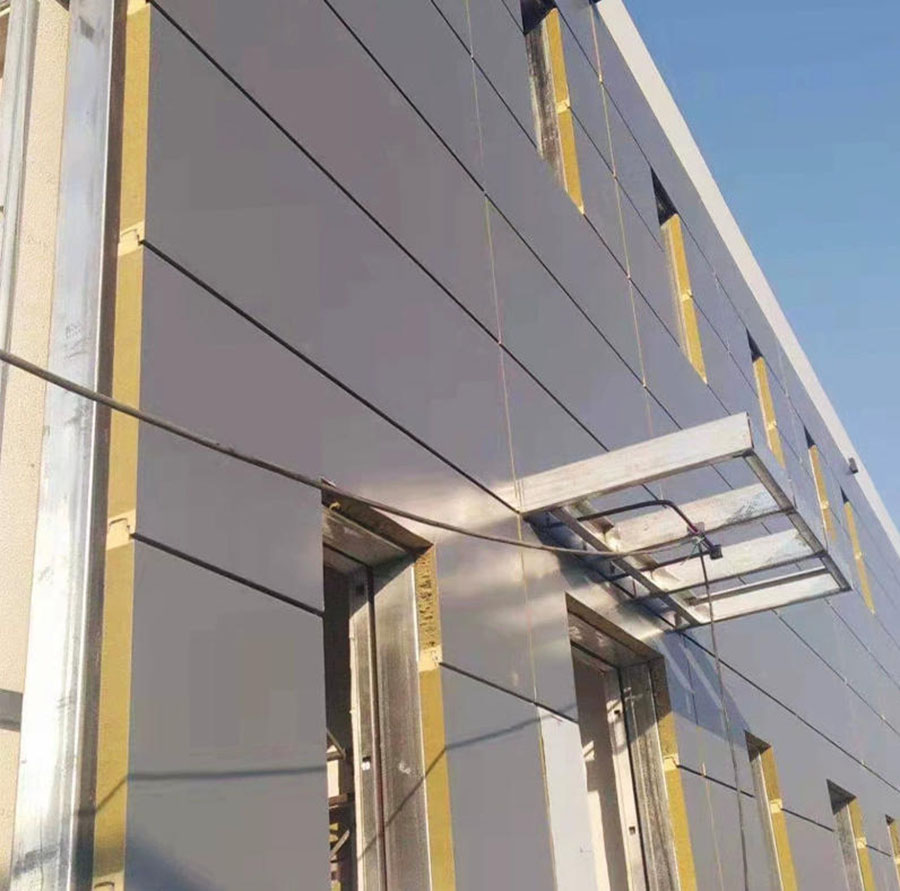

☆ Firewalls
Packing & Delivery
☆ Packing
·Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
The rockwool sandwich panel are consist of excellent quality of rockwool insulated material, and two steel layers(PPGL), with fireproof performance with grade A. MOQ:500M²/Color & Size
Upper and lower surface: adopt galvanized color steel plate with thickness of 0.4-0.75mm. Based on the specific requirements of customers, aluminum-zinc-plated color steel plates or galvanized steel plates can also be used.MOQ:500㎡ color&size
Rockwool as the core material is the most environment friendly building material nowadays. MOQ:500㎡/Color&Size
Core material rockwool is suitable for the buildings which need the effect of fire and sound insulation as it plays these performances excellent. MOQ: 500M2/Color&Size
Mineral wool sandwich panels providing best sound and fire protection for buildings; MOQ 5000 meters;
