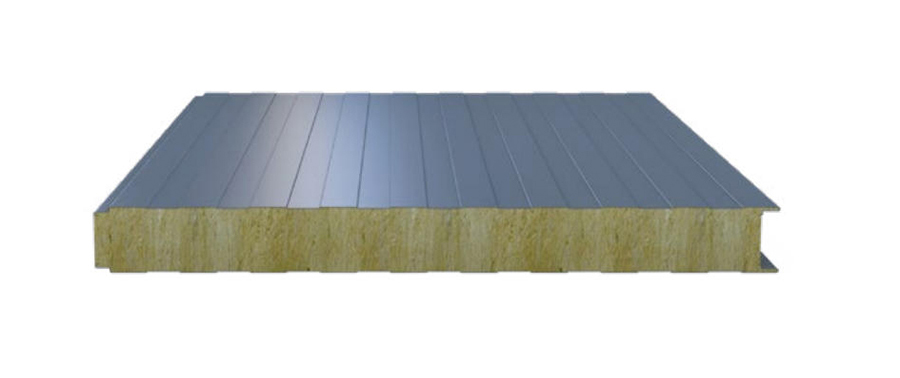

50mm exterior thermal rockwool wall sandwich panel
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product introduction
These advanced panels are engineered to maximize the unique properties of their core materials, delivering a superior combination of fire resistance, thermal insulation, and sound absorption. This integrated performance creates a safe, energy-efficient, and quiet environment, making them an ideal, multi-functional building solution for demanding architectural and industrial applications.
Product features
☆Fire Performance
The rock wool core is a non-combustible material with a melting point exceeding 1000°C, effectively blocking flame spread and minimizing fire damage.
☆Thermal Insulation
Rock wool has low thermal conductivity (0.043 W/m·K), providing good insulation. Excellent joint design ensures a tight seal and optimal thermal performance.
☆Sound Insulation
With a sound insulation rating of ≥30 dB, it effectively reduces external noise.
☆Durability
Made from high-quality, hydrophobic rock wool , the panels are robust and long-lasting.
☆Aesthetic Appeal
Features concealed screw joints for a flat panel surface. The coated finish provides rich, long-lasting color options.
Product specifications
|
Panel name |
Rockwool Sandwich Panel |
|
Effective width |
950/1150mm |
|
Core thickness |
50mm 75mm 100mm 150mm 200mm |
|
Coating type |
PE, SMP, HDP, PVDF |
|
Steel sheet (GI/PPGI/PPGL) |
0.40-0.75 mm |
|
Aluminum metal sheets |
0.60-1.20 mm |
|
Surface sheets |
Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm |
|
Aluminum metal sheets:0.60-1.20 mm |
|
|
Aluminum foils:0.065 mm |
|
|
PVC sheets |
|
|
Core material |
Rockwool |
|
Core density |
80-200 kg/m3 |
|
Thermal conductivity |
0.035-0.041 w/m·k |
Product applications

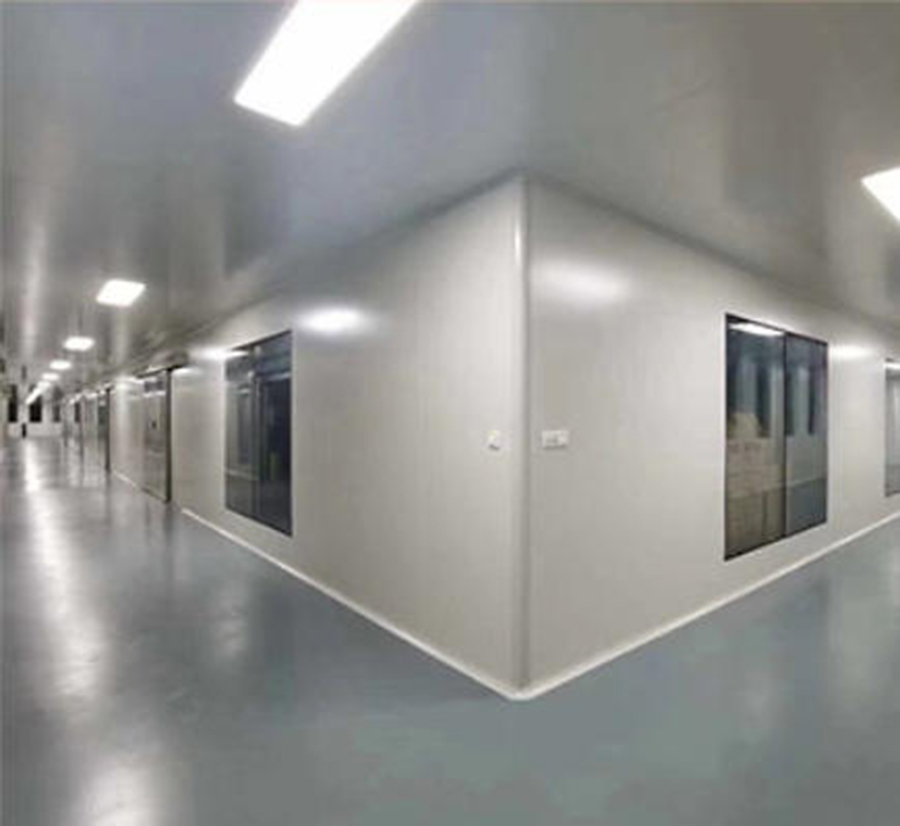

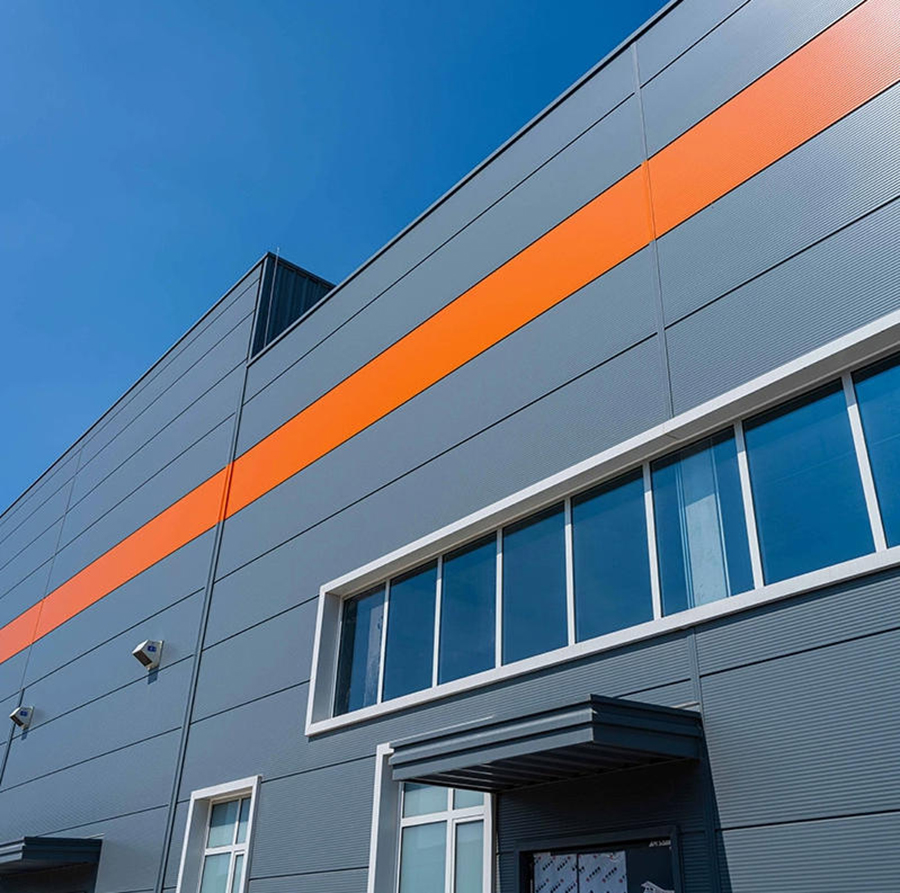

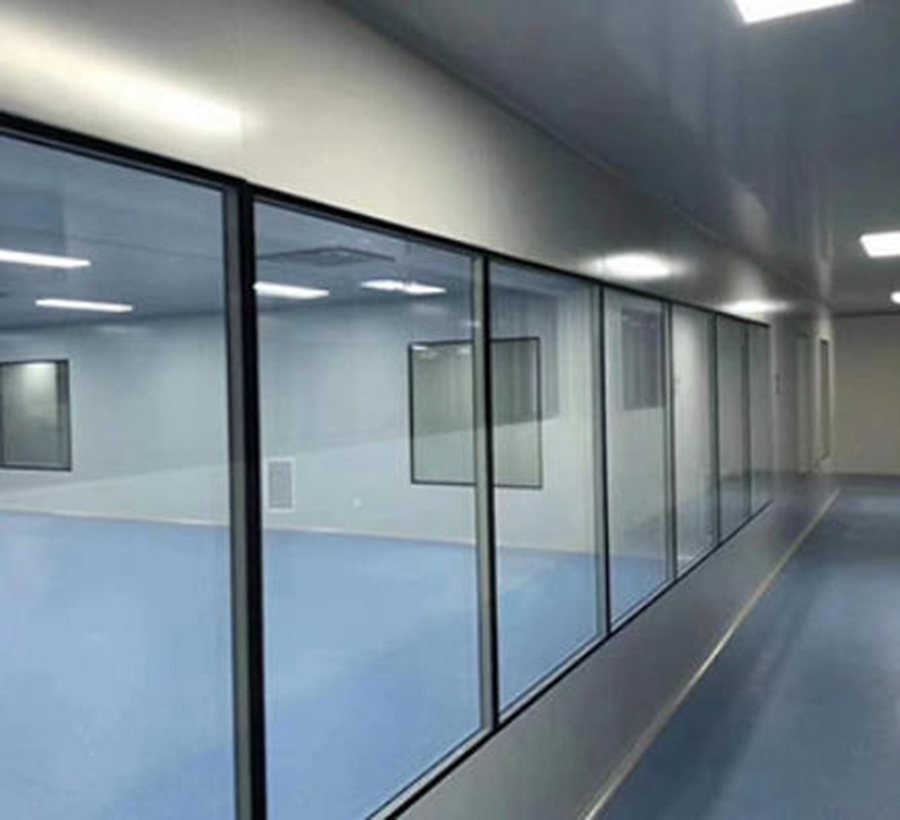

These fireproof rock wool sandwich panels are ideal for exterior walls and interior partitions in commercial, industrial, and residential buildings. They provide excellent fire resistance, thermal insulation, and an aesthetically pleasing finish in a single, efficient building solution.
Packing & Delivery

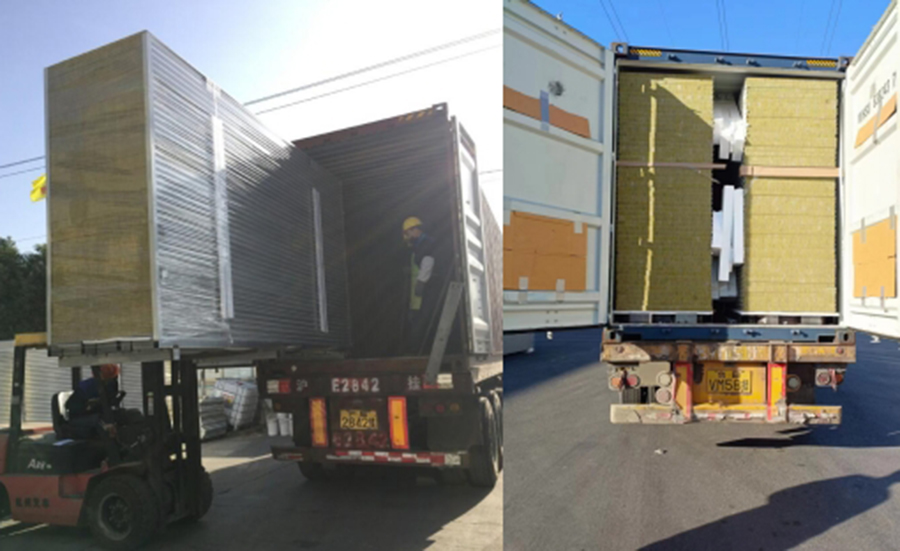

☆ Packing
·Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
The rockwool sandwich panel are consist of excellent quality of rockwool insulated material, and two steel layers(PPGL), with fireproof performance with grade A. MOQ:500M²/Color & Size
Upper and lower surface: adopt galvanized color steel plate with thickness of 0.4-0.75mm. Based on the specific requirements of customers, aluminum-zinc-plated color steel plates or galvanized steel plates can also be used.MOQ:500㎡ color&size
Rockwool as the core material is the most environment friendly building material nowadays. MOQ:500㎡/Color&Size
Core material rockwool is suitable for the buildings which need the effect of fire and sound insulation as it plays these performances excellent. MOQ: 500M2/Color&Size
Mineral wool sandwich panels providing best sound and fire protection for buildings; MOQ 5000 meters;
