Competitive Price 50mm Fireproof NF EPS Sandwich Panels Wall for Perfab Homes For Sale

50mm Fireproof NF EPS Sandwich Panels Wall for Perfab Homes

NF EPS steel wall sandwich panels are combined with steel sheets and expanded NF polystyrene.NF EPS is actually meaning Nonflammable (Fireproof) expanded polystyrene,which has excellent thermal insulation performance, fire prevention performance of A, B1-class non-combustible.

item no.:

YUMI-EPS-WALL-50MM

product orgin:

China

shipping port:

Xiamen/Qingdao

payment:

T/T;L/C at sight

color:

Customized

product categories

new products

product details

Product introduction

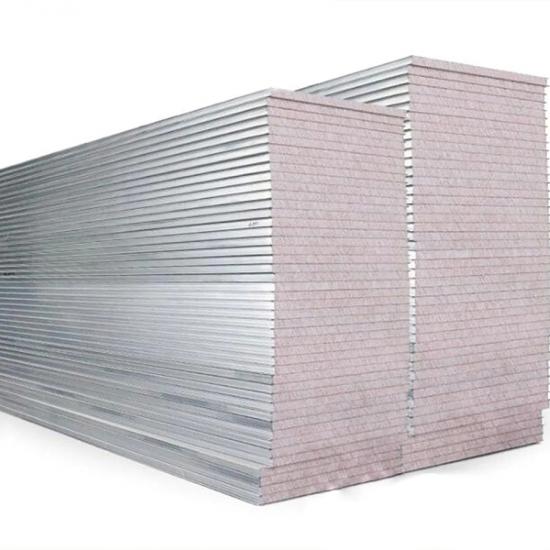

NF EPS steel wall sandwich panels

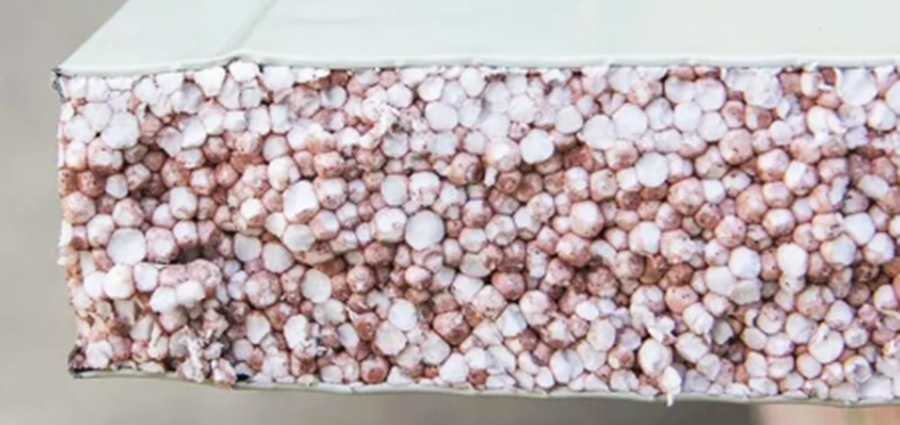

NF EPS steel wall sandwich panels are combined with steel sheets and expanded NF polystyrene.This kind of sandwich panels were originally from South Korea. The basic principle is to use the particle fire barrier technology. The copolymer modification is used to make the EPS monomer particles have the same characteristics as the fireproof material, and the micro phase conforming technology is used to form the fireproof separator on the surface of each organic particle. So that each particle forms a relatively independent organic particle fire protection unit.

Product advantages

☆Excellent fire performance

☆Efficient insulation performance

☆Green energy saving and environmental protection

☆Good ventilation

☆Product application cost-effective

Product specifications

Name	50mm fireproof NF EPS sanwich wall panels
Steel sheet thickness	0.30-0.70mm
Steel type	PPGL, PPGI steel / Aluminum sheet / Stainless steel sheets
Core material thickness	50mm
Core material density	20-30KG/M³
Effective width	950mm or 1150mm
Regular color	White grey, Sea blue, Sliver grey, Dk grey, Iron grey
Length	For 20FT containe, ≤ 5.9 meters; For 40FT container, ≤ 11.9 meters;
Fire resistant level	A
Installation accessories	Aluminum U channels,self screws, flashings, etc.

Product ribs

Product applications

NF EPS insulated sandwich panels could offer a complete usage for commercial , residential, agricultural and USDA food grade buildings,and all the designs could meet up customers' individual needs.

NF EPS steel wall sandwich panels applications

Packing & Delivery

☆ Packing

·15 ~ 20 panels per package;

·20FT container max loading quantities:

Effective width	950 mm	1150 mm
Loading quantities /m²	493.24	597.07
Packages	4	4

·40FT container max loading quantities:

Effective width	950 mm	1150 mm
Loading quantities /m²	1130.50	1392.10
Packages	4	4

·Seaworthy packing standards

PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

Service&Support

☆Service
Xiamen Yumi Imp. &Exp. Co., Ltd. Is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
