/75mm Prefabricated Steel Building EPS Sandwich Wall Panel

75mm Prefabricated Steel Building EPS Sandwich Wall Panel

EPS sandwich panel, regular colors are white, blue, white gray, others can as per RAL color. MOQ: 500㎡ color&size
  • item no.:

    950/1150
  • lead time:

    7-20 days
  • product orgin:

    China
  • shipping port:

    Xiamen/Qingdao/Shanghai,China
  • payment:

    T/T; LC at sight
  • color:

    Customized
  • product details

Material introduction

Surface: colored steel sheet, or can be aluminum sheet, with good anti corrosion performance;

Core material: polystyrene it is formed by continous heated and pressured in molding machine, synthesized by the heat-curing adhesive.



Advantages

Easy to install;

Weight bearing;

Waterproofing;

Aanti-fingerprint;

Corrosion resistance;

Acid and alkali resistant;

Light weight, 1/20-1/30 equivalent weight of concrete;

Easy for cleaning and maintenance;

Durable color coated, with coating of PE/PVDF/HDP/SMP, etc.;

Heat insulating, its heat transfer value is 0.034W/mk;


Application

Wall of House: EPS sandwich panel is not only pleasing to the sense of beauty;

The facade of the Building: you can use EPS sandwich panel in all the exterior part of your building.

Storage: one of the distinguishing features of EPS sandwich panel is this reason, EPS Sandwich Panel can be used as a storage space.

Offices: EPS can be constructed in the factory and erected on your site into an official structure of several stories building.

Mobile Restrooms for Parties and Occasions: you can erect your EPS sandwich panel for just two hours and set up your toilet facility to serve you for a short period of time.

Private House: you can use EPS sandwich panel for your private house for time-saving construction and cost-efficiency.


Specifications

Product name:75mm EPS sandwich panel
Effective width:950/1150 mm
Core material thickness:75 mm (50/100/150/200/250 mm)
Core material density:8-20 kg/m³
Available sheet material: GI/GL/PPGI/PPGL/Al-Mg-Mn alloy metal sheet
Available sheet thickness:

PPGI/PPGL steel sheets: 0.3-0.75mm;

Al-Mg-Mn alloy metal sheets: 0.7-1.2mm;

Galvanized steel sheets: 0.3-0.8mm;

Alu-zinc steel sheets: 0.3-0.8mm;

Color aluminum sheets: 0.6-1.2mm.

Available length:

20FT container: ≤5.95m

40 FT container: ≤ 11.95m

Surface treatment: Original pre-painted color, or natural zinc coated color
Coating type:PE, PVDF, HDP, SMP, etc.
Regular sheet color:White grey, sea blue, sliver grey, DK grey, Iron grey, or as per RAL color


Panel rendering

sandwich wall panel for storage

insulated conposite panel for prefabricated building

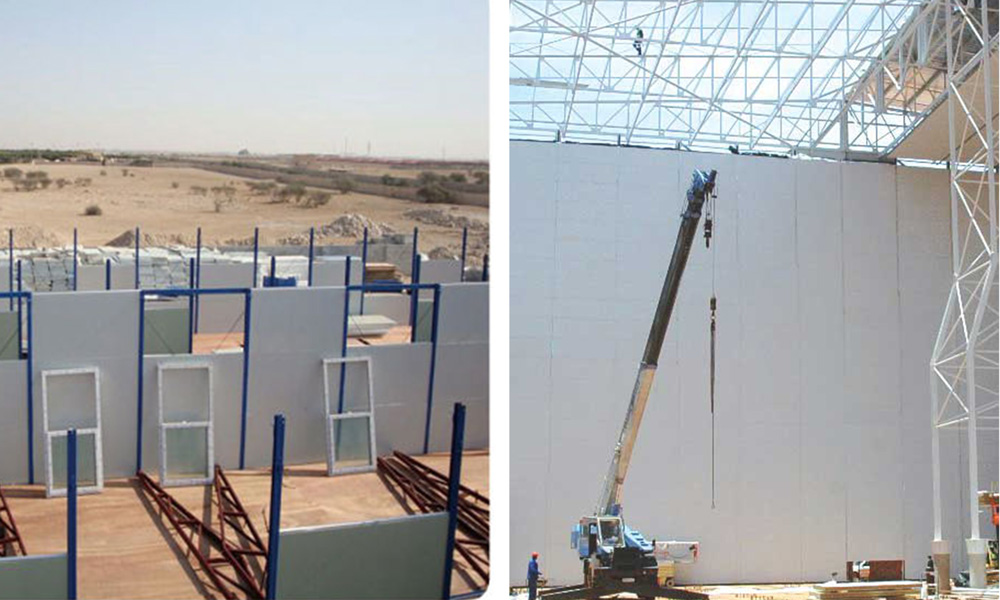

sandwich panel installation


Packing & Delivery

☆ Packing:

Seaworthy packing standards:

Premium packing:

Packed with steel box,in order to protect the panels in good status before installation.


☆ Delivery:

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
