Competitive Price PU Edge-Sealed Rock Wool Board Sound-Absorbing Sandwich Panels For Sale

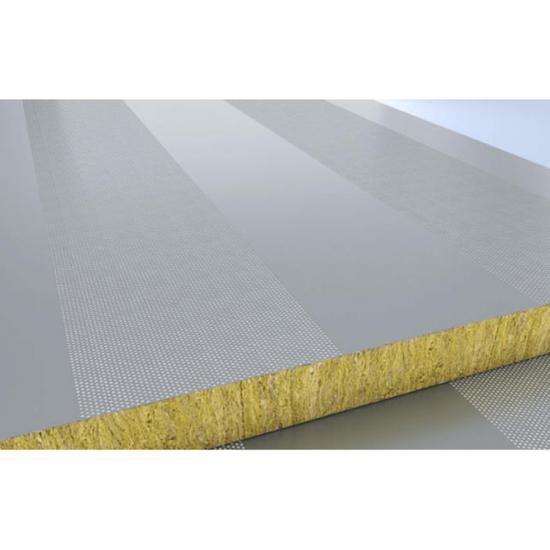

PU Edge-Sealed Rock Wool Board Sound-Absorbing Sandwich Panels

These sandwich panels are composite building materials that combine excellent fire resistance and noise reduction with enhanced thermal insulation, making them ideal for demanding industrial and commercial environments.

product orgin:

China

shipping port:

Xiamen/Qingdao

payment:

T/T;L/C at sight

color:

Customized

product categories

new products

product details

Product introduction

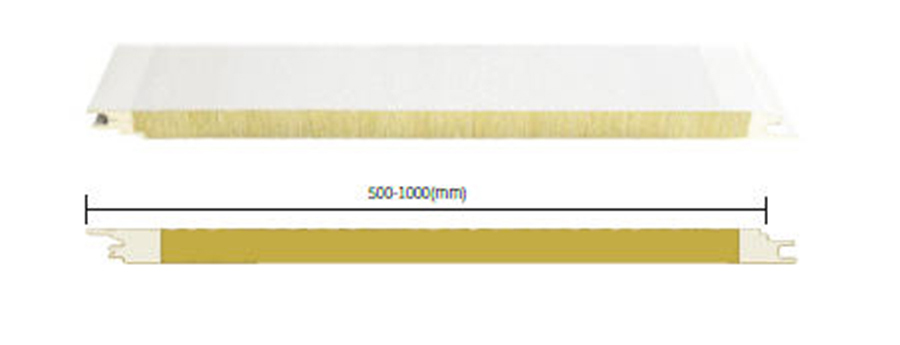

sound absorption panels

These acoustic panels offer sound absorption, environmental safety, flame retardancy, thermal insulation, moisture resistance, and mold prevention. They are easy to clean, cut, and install, providing high stability, impact resistance, and excellent cost-effectiveness. Available in multiple colors and 50-100mm thicknesses, they meet diverse aesthetic and functional requirements for sound-absorbing decoration.

Product Composition

Color-coated galvanized steel sheet (outer panel) + Glass wool + Non-woven fabric + Perforated color-coated galvanized steel sheet (inner panel)

Product features

☆Airtight Sound Insulation

Excellent sound absorption, significantly reducing impact noise from rain and hail. Provides effective acoustic sealing.

☆Eco-Friendly

Formaldehyde-free, resistant to microbial growth, and fully recyclable. Meets green building standards.

☆Economical & Aesthetic

Diverse surface designs and color options minimize material waste and installation time. Reduces overall project costs while maintaining visual appeal.

☆Rapid Installation

Factory-produced polyurethane panels ensure consistent quality and enable fast on-site assembly under controlled manufacturing conditions.

Product specifications

Panel name	Sound-Absorbing Sandwich Panel
Effective width	500-1000mm
Core thickness	50-100mm
Coating type	PE, SMP, HDP, PVDF
Steel sheet (GI/PPGI/PPGL)	0.40-0.75 mm
Aluminum metal sheets	0.60-1.20 mm
Surface sheets	Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm
	Aluminum metal sheets:0.60-1.20 mm
	Aluminum foils:0.065 mm
	PVC sheets
Core material	Rockwool with PU edges
Core density	110-150 kg/m3
Thermal conductivity	0.035-0.041 w/m·k

Product applications

These sandwich panels are specifically engineered for demanding environments requiring superior noise control and fire safety. These high-performance panels are ideal for industrial facilities, commercial buildings, and specialized applications like data centers and cleanrooms where both acoustic management and thermal insulation are critical. The unique edge-sealing technology enhances their durability and performance in temperature-controlled spaces.

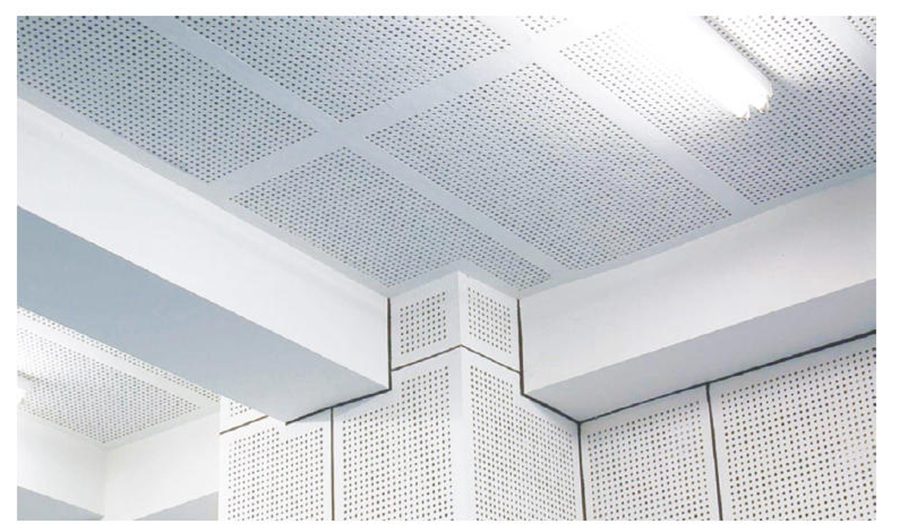

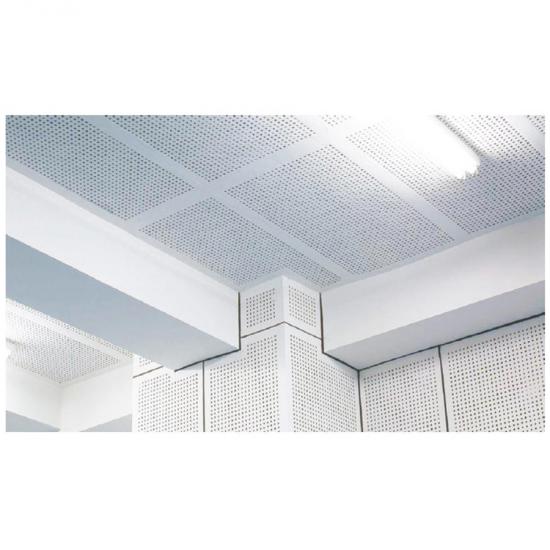

Soundproof roof and walls

Packing & Delivery

☆ Packing

·Seaworthy packing standards:

PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

Service&Support

☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

1)Professional sales team,One-to-one service;

2)Combination of industry and trade company,to ensure the service and price;

3)Experienced engineer team to offer professional technology service;

4)Intimate after-sales service.

☆Support

Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
