1

Main area = length of the outer side of the exterior wall * width * number of floors

2

Area of outdoor stairs and walkways = horizontal projection area of natural floor x canopy area

3

Half of the horizontal projection area of canopy

Total area = 1+ 2 + 3

1

Laying the foundation

2

Installing the ground beam

3

Installing the ground strips

4

Installing the purlin ring beam

5

Installing the letter beam

6

Installing the wall panels

7

Installing the interior partition panels

8

Installing the roof panels

9

Installing the doors

10

Installing the windows

11

Finished product

1

Roof truss

2

Roof purlin

3

Ring beam

4

Corner column

5

Gable column

6

Floor secondary beam

7

Stair handrail

8

Railing

9

Stairs

10

Platform bracket column

11

Roof tile

12

Ridge tile

13

Awning

14

Railing

15

Walkway board

16

Aluminum alloy sliding window

17

Composite door

18

Adjustment rod

19

Middle column

20

Ground beam

21

Floor beam

22

Walkway bracket

23

Platform bracket

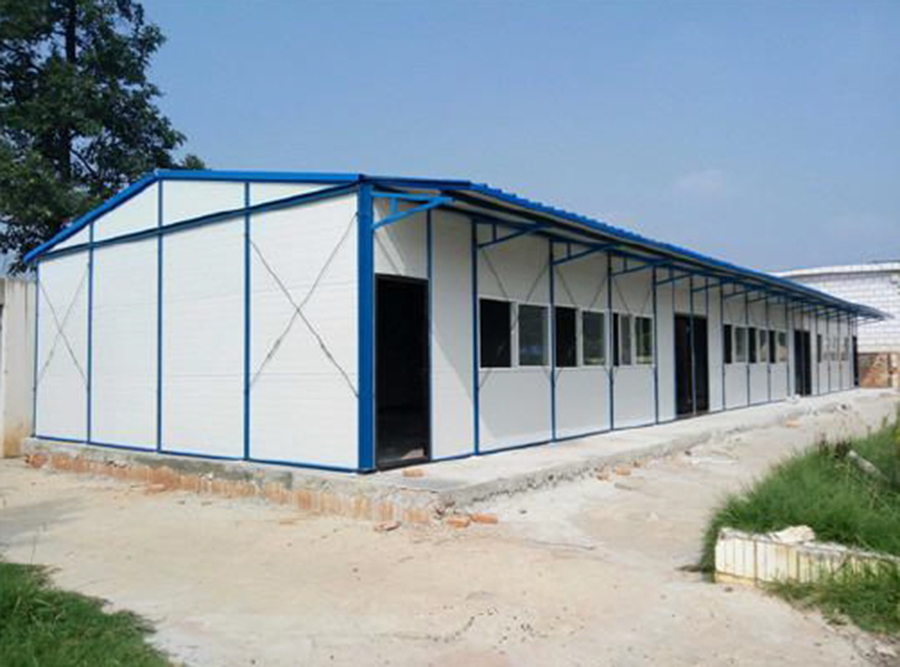

Main Materials of K-style Movable House

For the first-floor structure:

Indoor clear height: 2600mm

For the two-story structure:

The height of the first floor is 2560mm, and the height of the second floor is also 2560mm.

Ground beam:

C80# shaped steel

Column:

Assembled and welded by C80# shaped steel

Floor beam:

Parallel chord truss beam (welded by C80# shaped steel and C50 shaped steel)

Secondary floor beam:

C80# shaped steel

Roof purlin:

C50# shaped steel

Stairs:

The wide steel structure stairs are welded by C160X50X20, and the steps are made of 2.5mm thick embossed steel plates.

Corridor plate:

2.5mm thick embossed steel plate

Wall panel:

50mm thick double-sided color steel profiled panel

Roof panel:

50mm thick double-sided color steel profiled panel

Floor slab:

15mm thick plywood

Door:

200mm*89mm anti-theft door

Window:

174mm*92mm plastic-steel window
