50mm exterior thermal rockwool wall sandwich panel
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product introduction
PU edges rockwool sandwich panels are advanced composite building panels that integrate a rockwool core for exceptional fire resistance and thermal insulation, with polyurethane (PU) reinforced edges to enhance sealing, moisture barrier properties, and structural durability.
|
|

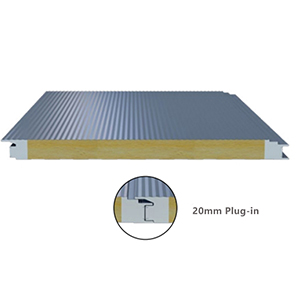

20mm Plug-in |
The socket incorporates precision fastening grooves for accurate and efficient installation. |
|
|

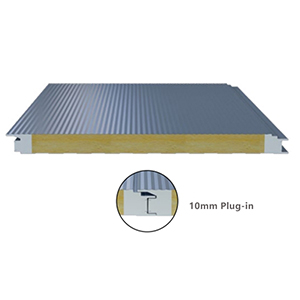

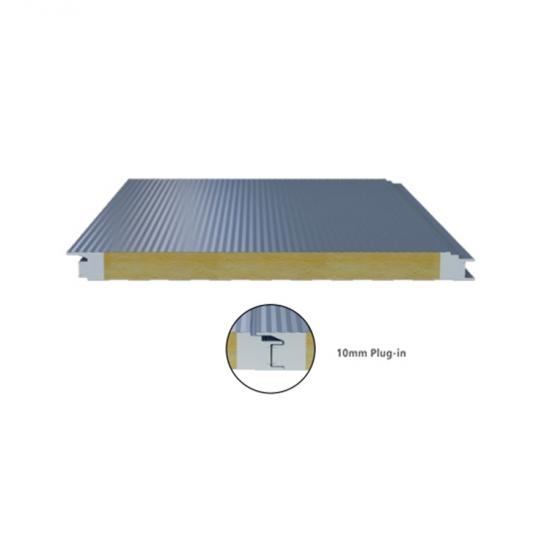

10mm Plug-in |
The insulated core of the socket maintains tight connections, effectively blocking thermal conduction. |
|
|

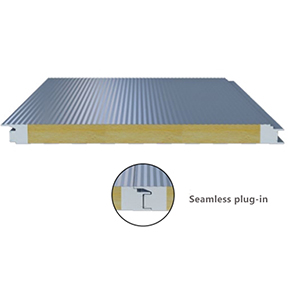

Seamless Plug-in |
The socket exterior features an air chamber structure, achieving equal-pressure rain screen functionality to prevent water infiltration. |
Product advantages
☆Fireproof performance
The rock wool core material is a non-combustible material with an ultra-high 1000℃ fusion temperature, which can effectively block the flame in a fire and minimize the fire loss.
☆Insulation and energy saving
Rock wool has a low thermal conductivity (0043w/m·k) and good thermal insulation performance. Excellent node design ensures sealing performance and thermal insulation effect.
☆Good sound insulation
The sound insulation volume is ≥ 30DB, which effectively reduces the interference of external noise.
☆Watertightness/airtightness
Using polyurethane edge sealing, the tongue and groove are flat and can effectively prevent water from entering; the joints of the board are sealed inside to maintain good airtightness.
☆Sturdy and durable
Use high-quality rock wool materials or glass wool, with high water-reliability and long-lasting stability.
Product specifications
|
Specification |
Details |
|
Core Thickness |
50/75/100/150/200 mm |
|
Panel Width |
Standard 950mm,1130mm |
|
Panel Length |
20FT container: ≤ 5.95m |
|
Density of Core |
80-150 kg/m³ |
|
Thermal Conductivity |
≤ 0.022 W/(m·K) |
|
Fire Rating |
Class A1 - s1 (excellent fire resistance) |
|
Surface sheets |
PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel |
|
Aluminumsheets/Al-Mg-Mnalloymetal sheet |
0.70 - 1.20 mm |
|
Steel thickness |
0.40 - 0.70 mm |
|
Stainless steel |
0.40 - 0.60 mm |
Product ribs
There are 4 different kinds of panel surface treatment (ribs),we named them as micro ribs, wide ribs, pure flat, and embossed. You can choose which type is suitable for your project.
Product applications

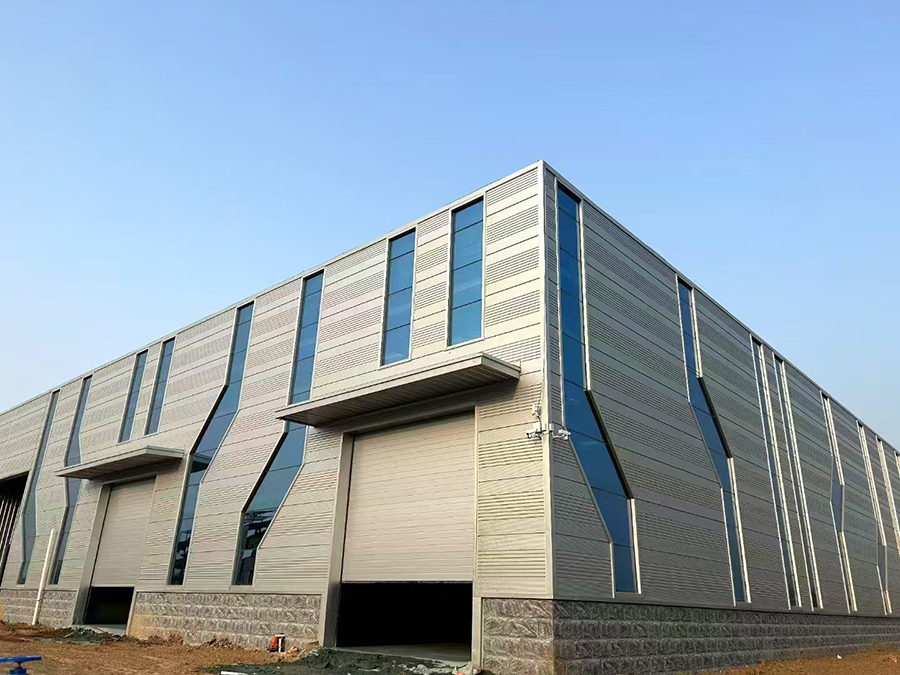

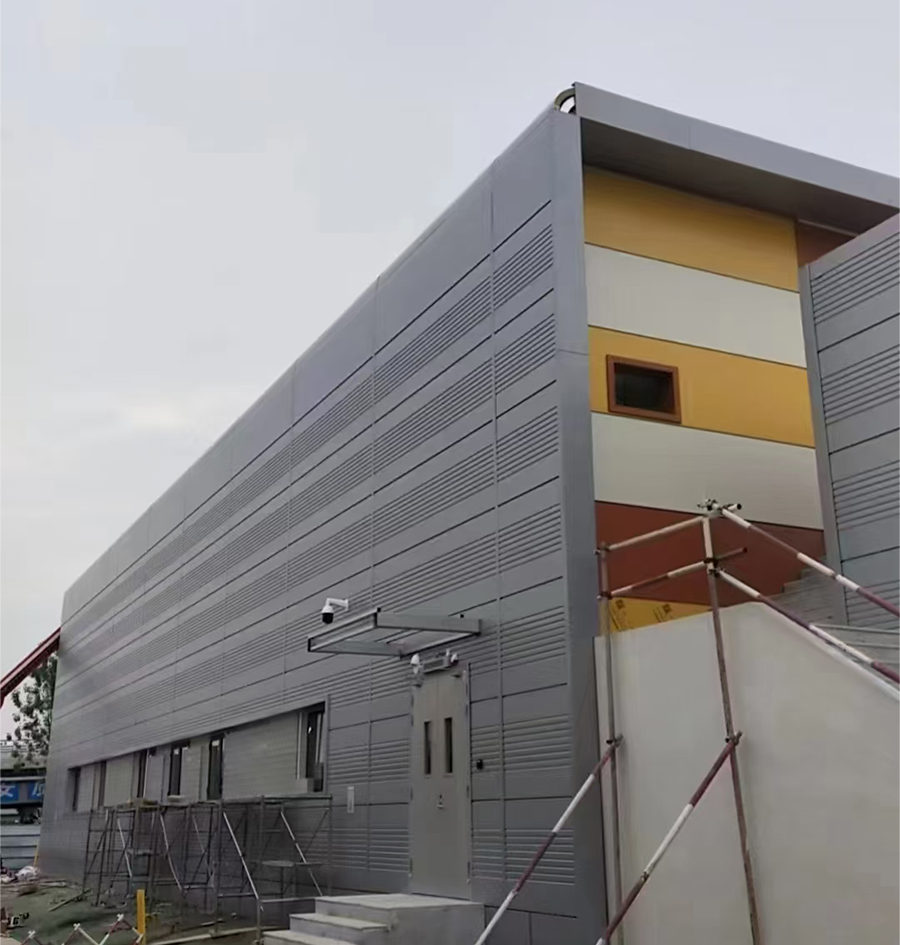

Thermal Rockwool and PU sandwich wall panels provide superior fireproof insulation for industrial buildings, cold storage, and prefab structures. With excellent thermal resistance and fire safety ratings (A1/A2 class), these lightweight yet durable panels ensure energy efficiency and compliance with strict building regulations. Ideal for walls, roofs, and partitions.
Packing & Delivery
☆ Packing
·Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi Imp. &Exp. Co., Ltd. Is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
The rockwool sandwich panel are consist of excellent quality of rockwool insulated material, and two steel layers(PPGL), with fireproof performance with grade A. MOQ:500M²/Color & Size
Upper and lower surface: adopt galvanized color steel plate with thickness of 0.4-0.75mm. Based on the specific requirements of customers, aluminum-zinc-plated color steel plates or galvanized steel plates can also be used.MOQ:500㎡ color&size
Rockwool as the core material is the most environment friendly building material nowadays. MOQ:500㎡/Color&Size
Core material rockwool is suitable for the buildings which need the effect of fire and sound insulation as it plays these performances excellent. MOQ: 500M2/Color&Size
Mineral wool sandwich panels providing best sound and fire protection for buildings; MOQ 5000 meters;
