Competitive Price Thermal Insulated Panels PU Sandwich Panels Walls for Office For Sale

Thermal Insulated Panels PU Sandwich Panels Walls for Office

PU sandwich panels provide superior thermal insulation, fire resistance, and sleek finishes for modern office walls and partitions.

product orgin:

China

shipping port:

Xiamen/Qingdao

payment:

T/T;L/C at sight

color:

Customized

product categories

new products

product details

Product introduction

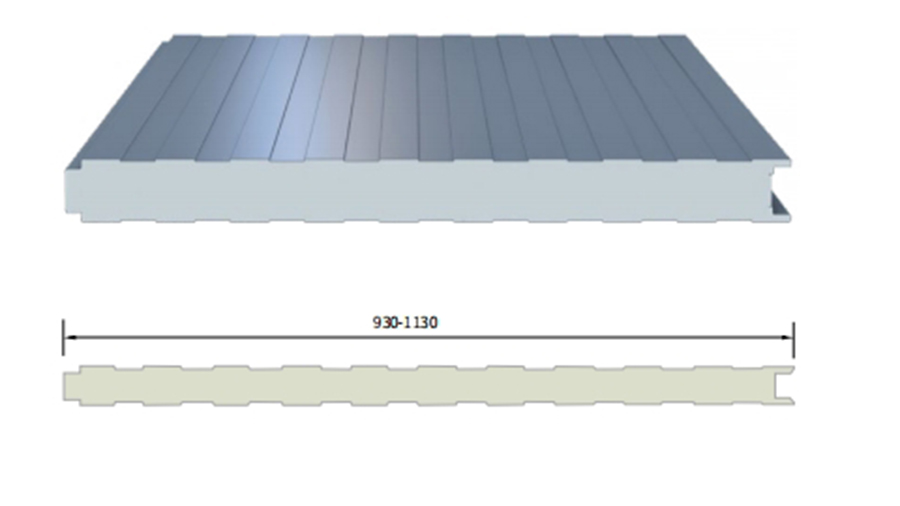

sandwich panel

Polyurethane Sandwich Panels, often known as PU Panels, are structures consisting of polyurethane foam sandwiched between two side skins made of a different material, such as metal. Thermal insulation is provided by foam in between.

Product advantages

Partition panels are used for interior walls and ceilings in buildings, as well as for walls in mobile container houses.

Feature:

☆Excellent load-bearing capacity (self-supporting structure)

☆High air tightness (effective sealing performance)

☆Thermal insulation & cold bridge prevention (energy-efficient design)

Product specifications

Specification	Details
Effective width	950-1130mm
Panel thickness	50/ 75/ 100/ 150/200mm
Coating type	PE, SMP, HDP, PVDF
Steel sheet (GI/PPGI/PPGL)	0.40-0.75 mm
Aluminum metal sheets	0.60-1.20 mm
Surface sheets	Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm
	Aluminum metal sheets:0.60-1.20 mm
	Aluminum foils:0.065 mm
	PVC sheets
Core material	PIR/PUR	Rockwool with PU edges	Glass wool with PU edges
Core density	35-45 kg/m3	110-150 kg/m3	48-64 kg/m3
Thermal conductivity	≤0.023 w/m· k	0.035-0.041 w/m·k	0.035-0.041 w/m·k

Product applications

This model sandwich panels are ideal for office partition walls, interior ceilings, and mobile container house construction. These lightweight yet durable panels provide excellent load-bearing capacity, airtight sealing, and superior thermal insulation with cold-bridge prevention. Available in steel, aluminum, or stainless steel finishes for modern architectural needs.

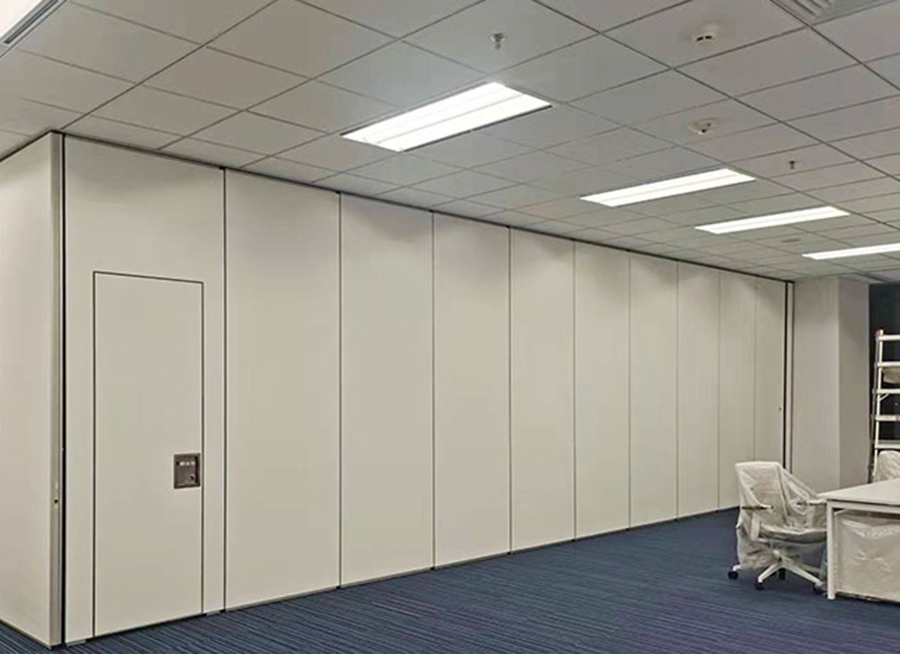

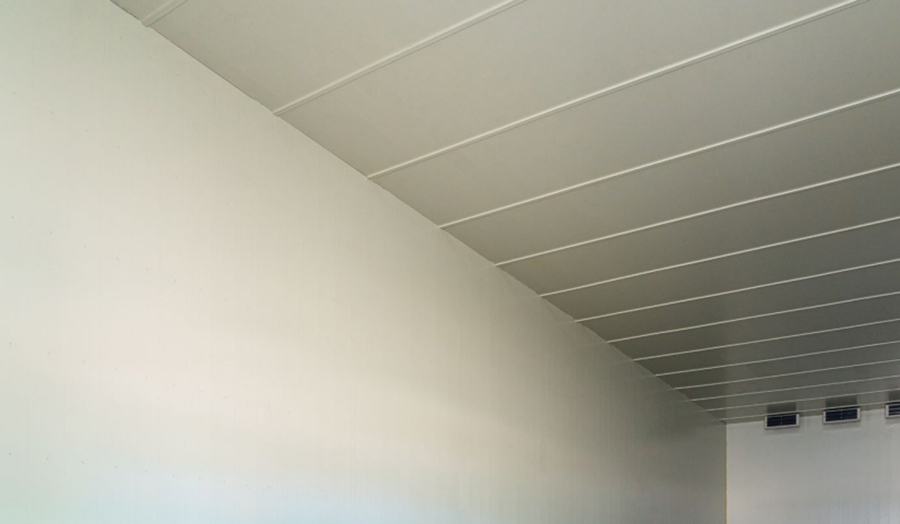

office interior ceilings

Packing & Delivery

☆ Packing

·Seaworthy packing standards:

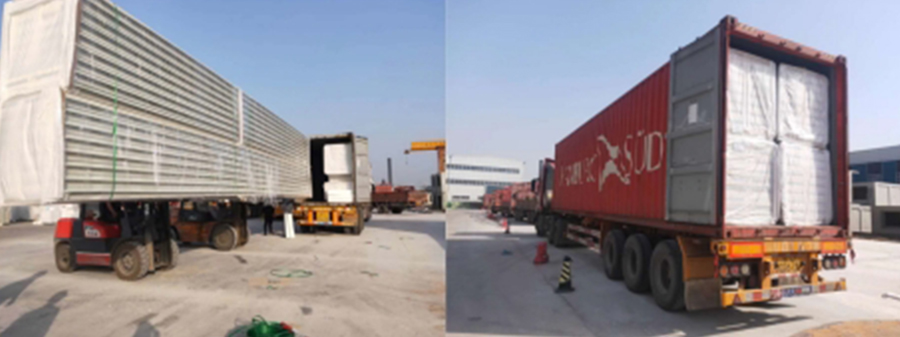

sandwich panels packing

PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

Service&Support

☆Service
Xiamen Yumi New Material Tech. Co., Ltd. Is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
