item no.:
YX100-274.3-823lead time:
7-15 daysproduct orgin:
Chinashipping port:
Xiamen / Qingdao / Tianjin,Chinapayment:
T/T; LC at sightcolor:
Customized
Product Features:
☆ 823mm cover width has the advantage to make the metal panel itself be easier to be handled and fixed in long lengths at site;
☆ The 100mm super high rib profile offers greater strength and spanning abilities, which reduces the number of purlins and girts that required;
☆ Available length is from 1m to 11.95m, as per internal size limitation of shipping container;
☆ Deep profiled ribs are making the metal roof cladding panel have excellent drainage performance, when it used as roof.
Product Specifications:
|
Model NO. : |
YX100-274.3-823 |
|
Rib height : |
100 mm |
|
Rib distance : |
274.3 mm |
|
Modular width : |
1250 mm |
|
Feeding width : |
823 mm |
|
Available thickness : |
0.40 - 0.75 mm for steel sheets; 0.60 - 1.20 mm for aluminum alloy metal sheets |
|
Available length : |
20FT container: ≤ 5.90m |
|
Available material : |
PPGI/ PPGL/ Galvanized steel/Aluminum alloy metal sheets |
|
Surface treatment : |
Original pre-painted color |
|
Coating type : |
PE, PVDF, HDP, SMP, etc. |
|
Fastening system : |
Exposed fastener |
|
Remark : |
This model type can be used as steel deck, thickness range is 0.65-1.20 mm. |
Applications & Renderings:
This deep profiled metal panels can be used as both roof and wall panels, and is very suitable for commercial, industrial or agricultural buildings.
Metal panels as roof:
Metal panels as wall:
Accessories needed for installation:
|
Self drilled screws:5.5/6.3*125mm |
Metal flashing & trims to install panel |
Outside & Inside foam closure for panel |
|
Butyl tape: 19m per each roll |
Rivets attach metal flashing on panel |
Tube silicone sealant:590ml per tube |
Packing & Delivery:

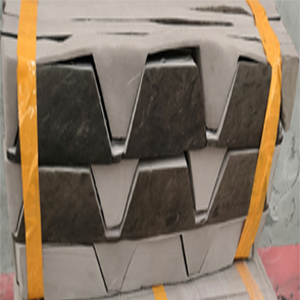

☆ Packing:
Seaworthy packing standards: normally we pack with moisture-proof kraft paper and stick panel list details on outside package, and put steel skids under the metal panels to make container unloading easier for our customers.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
