High strength customized steel structure for industry
According to your industrial use, Yumisteel can provide you with one-stop service from design, mechanics calculation and material supply.MOQ:1 set
item no.:
N/Aproduct orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product introduction

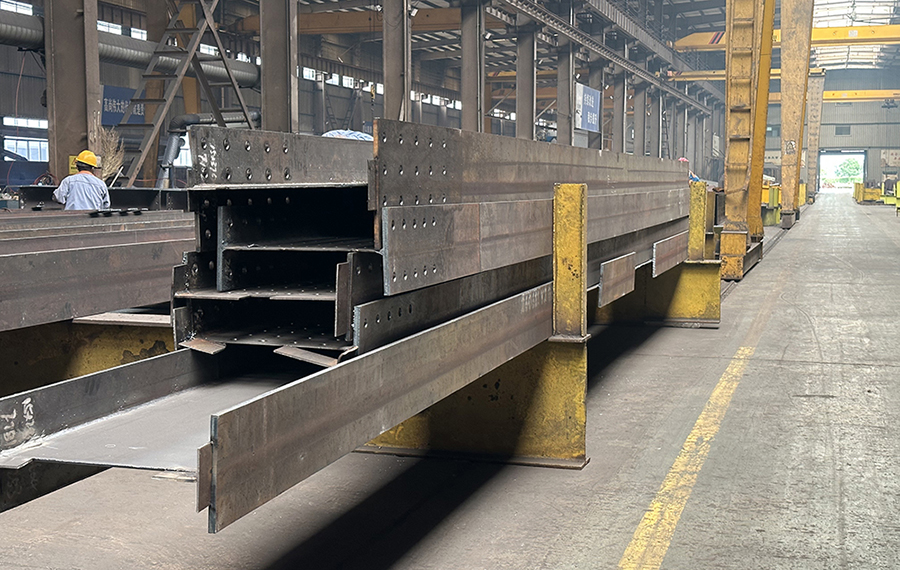

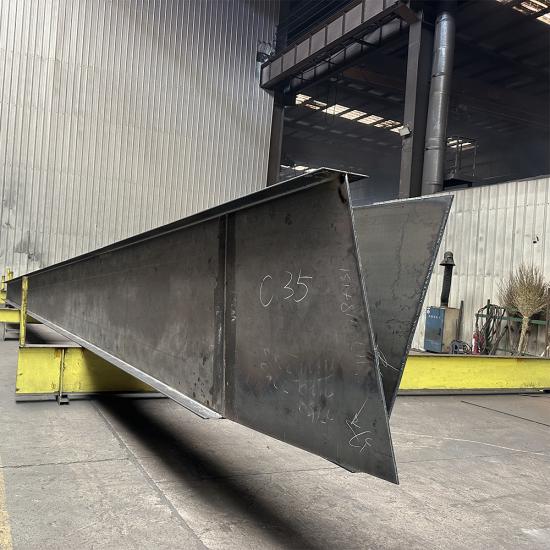

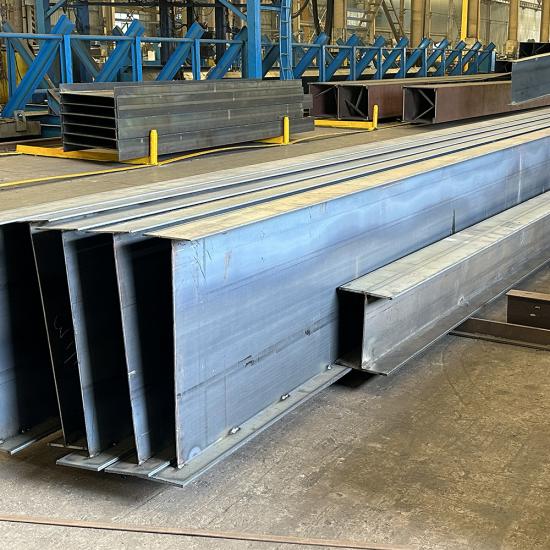

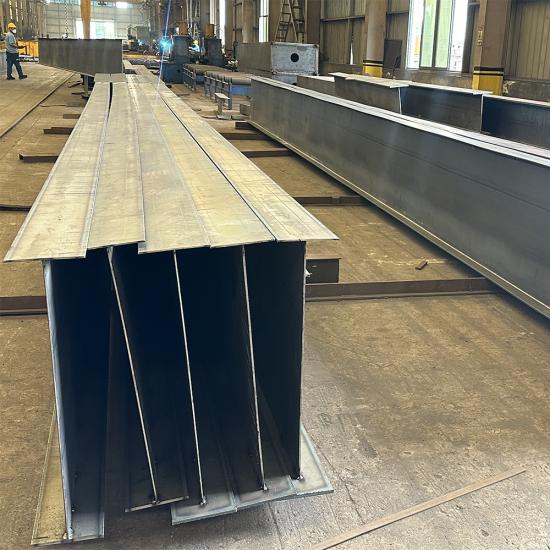

Structural steel H-beams and columns form the essential framework for building support in high-rises, industrial facilities, and bridges. These steel sections deliver exceptional load capacity with efficient weight distribution. Precision-rolled to ASTM and EN standards, they ensure reliable performance under heavy vertical and lateral forces, enabling safe, long-lasting structural systems.
Product specification
|
Item |
Name |
Specification |
|
Main steel frame |
Column |
Welded or hot rolled Section Steel |
|
Beam |
Welded or hot rolled Section Steel |
|
|
Secondary frame |
Purline |
Galvanized C/Z purline |
|
Column & beam brace |
Round bar/circular steel tube |
|
|
Tie rod |
Circular steel tube |
|
|
Flying brace |
Angle steel |
|
|
Tie bar |
Round bar |
|
|
Maintenance system |
Roof panel |
0.326~0.6mm color corrugated sheet or 50~100mm EPS / rock wool / PU sandwich panel |
|
Wall panel |
0.326~0.6mm color corrugated sheet or 50~100mm EPS / rock wool / PU sandwich panel |
|
|
Window |
Aluminum Alloy Window / PVC Window |
|
|
Door |
Sliding door or Rolling metal Door |
|
|
Accessories |
Gutter |
Colour steel / galvanized steel / stainless steel |
|
High strength bolts |
High strength steel |
|
|
Anchor bolt |
M24~M65 |
|
|
Others |
Common bolt,skylight board,downpipe ventilation ball,glass wool,etc. |
|
|
Surface Finishing |
Laser/Auto-welding/Punching/Bending etc |
|
|
OEM Service |
Nature/Powder Painting/Galvanizing |
|
|
Material |
Q235B/Q355B or Customized |
|
Construction Metals Introduction

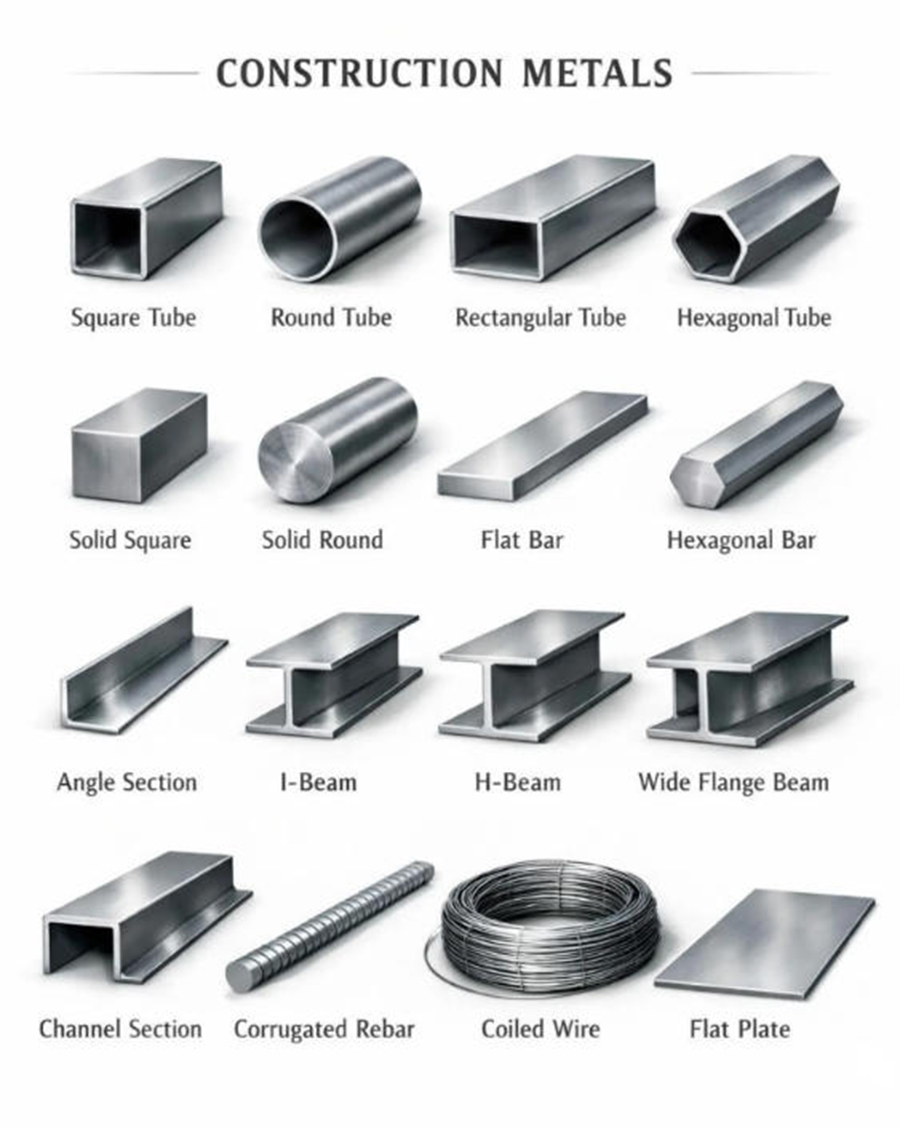

Construction Metals offers a comprehensive inventory of structural steel and metal profiles for building, fabrication, and engineering projects. Our product range includes square, round, rectangular, and hexagonal tubes, solid bars, flat bars, angle sections, I-beams, H-beams, wide flange beams, channel sections, corrugated rebar, coiled wire, and flat plates. Each profile meets international standards, ensuring reliable performance across diverse construction applications.
Product Categories Featured:
Hollow Sections: Square Tube, Round Tube, Rectangular Tube, Hexagonal Tube
Solid Sections: Solid Square, Solid Round, Hexagonal Bar, Flat Bar
Structural Sections: Angle, I-Beam, H-Beam, Wide Flange Beam, Channel
Other Products: Corrugated Rebar, Coiled Wire, Flat Plate
Production Project
Product Certificate
A CE certificate for steel structures confirms compliance with EU harmonized standards like EN 1090. It covers fabrication, material traceability, and load-bearing safety. Required for structural steel beams, columns, and prefab buildings sold in Europe.
Service
☆If you have the drawings
We can provide you the full service of production, shipment and
Installation guide, which is high quality and low cost.Because we own all kinds of technical facilities, complete test instruments and advanced production processes.
☆If you have no drawings
Our excellent design team will freely design the steel structure buildings for you.If you give us the following information, we will give you an satisfactory drawing.
1. Dimension:Length, width, ridge height, eave height, etc.
2. Doors and Windows:Dimension, quantity, installation position.
3. Local Climate:Wind load, snow load, roof load, Seismic load
4. Insulation materials:Insulated Sandwich panel or Single Steel Sheet
5. Crane beam:If you need it, it will be very helpful that you tell us its technological parameters.
6. Usage:If you tell us the application of light steel structure warehouse, we can exactly design the drawings or match suitable materials for you.
7. Other requirements:Such as fire proofing, transparent roof, etc.Please kindly inform us, too.
Packing & Delivery
☆ Packing
Seaworthy packing standards:
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
FAQ
Q1: What is the maximum span?
A: Our system supports clear spans up to 60 meters without interior columns. Standard beams span 10-30 meters, while heavier girders can go longer for warehouses.
Q2: How does it save costs?
A: It saves money three ways-lighter foundations, faster installation, and no interior columns. This typically cuts 15-25% off total project costs compared to multi-span designs.
Q3: How do you control sagging (deflection)?
A: We use tapered frames, proper beam sizing, and set deflection limits. For spans over 35 meters, we add tie beams or knee braces to reduce the effective span without using floor columns.
Q4: What steel grades are available?
A: We offer ASTM A992 for the US, S355 for Europe, and Q355B for Asia. Stronger grades let us use lighter sections, which lowers steel weight and shipping costs.
Q5: How is corrosion protected?
A: For coastal or humid areas, we offer hot-dip galvanizing (lasts 20–30 years) or weathering steel (Corten). For indoor use, epoxy paint works well and lasts 10–15 years.
According to your industrial use, Yumisteel can provide you with one-stop service from design, mechanics calculation and material supply.MOQ:1 set
This is garden sheds can be used as outdoor dressing room, outdoor storage room, pet room, tool room, etc.Except this,its space can be extended from 1 room to 6 rooms to meet your needs for space size.
Weather resistance outdoor structures and garden buildings of plastic sheds for Tools/Storage/Potting sheds/Outdoor activities/Office/Store MOQ:1set
Affordable hot-rolled mild H-I steel beams for durable, cost-effective construction projects.
Premium Q235 Q345 structural steel C channels with slotted design, offering high strength and versatility for industrial framing and construction applications.
Prefabricated road bridge steel structures with precision laser-cut components for seamless welding and rapid assembly.
