When maintaining or inspecting a building, one common question arises: Can you walk on a roof sandwich panel? The short answer is that it depends on multiple factors. While sandwich panels are engineered for structural support and thermal insulation, they are not automatically designed to handle foot traffic. Understanding the key factors, including panel composition, load distribution, and application specific design, is essential before stepping onto any insulated roof panel.

Understanding Sandwich Panel Construction

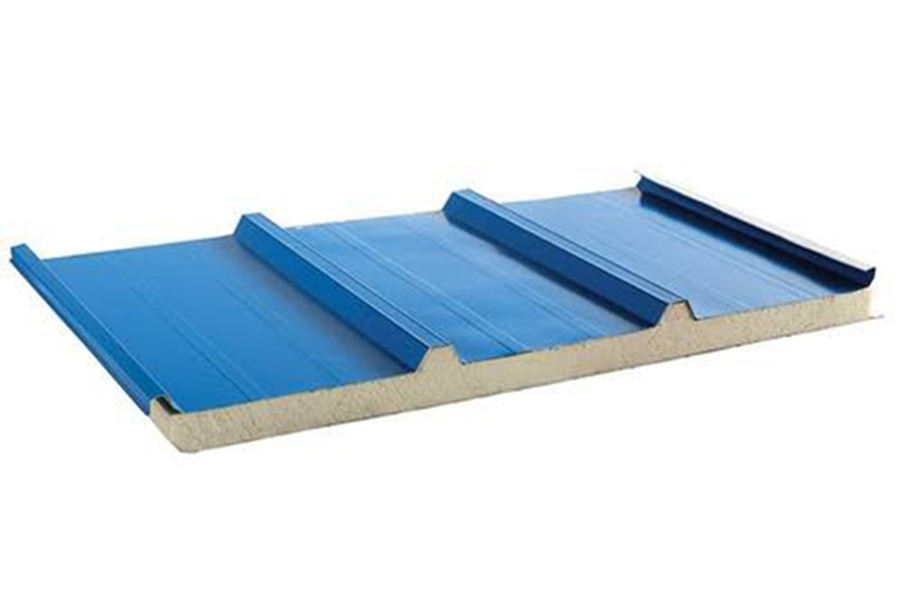

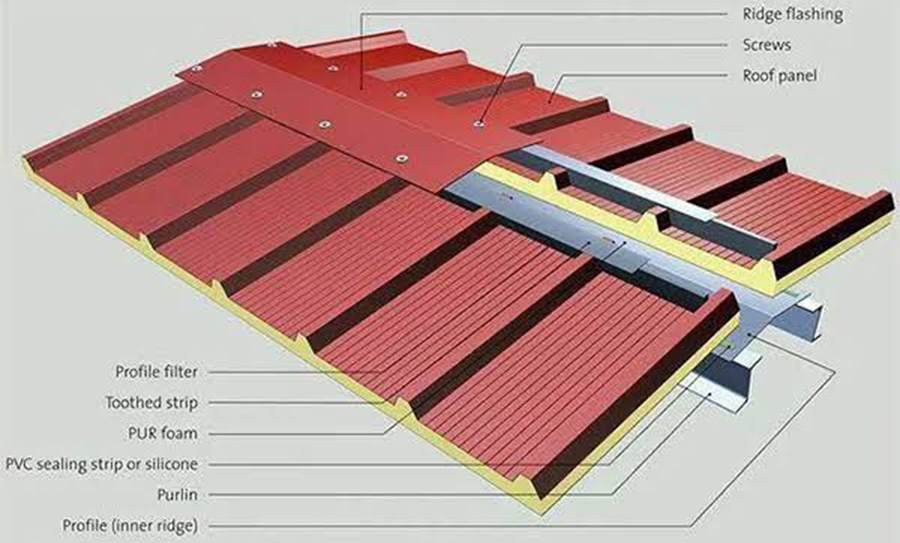

Roof sandwich panels consist of two external metal facings bonded to a rigid foam or mineral wool core. This composite structure gives them an excellent strength to weight ratio, making them ideal for roofing and wall cladding. However, their lightweight nature, while advantageous for installation and structural economy, also means they are not inherently built for heavy loads or repeated foot traffic.

The load bearing capacity of a sandwich panel depends on several variables:

1.Core material and density, which affects overall rigidity and point load resistance.

2.Metal facing thickness, which determines surface dent resistance.

3.Panel thickness and span, as thicker panels with shorter spans handle loads better.

4.Support spacing, or purlin distance, with narrower spacing increasing capacity.

5.Load distribution, as concentrated loads like a worker's heel are more damaging than evenly spread loads.

When Is It Safe to Walk on a Roof Sandwich Panel?

Walking on a sandwich panel roof is only advisable when the system has been specifically designed and certified for foot traffic. In these cases, the manufacturer or structural engineer typically provides clear guidance covering:

1.Weight restrictions, meaning the maximum allowable person weight and tool load.

2.Load distribution, requiring the use of walking boards or planks to spread weight across multiple panel ribs.

3.Walking paths that follow structural support lines directly over purlins.

4.Protective measures such as soft soled footwear and careful foot placement to avoid denting the metal surface.

If the roof was not originally specified for access, assume it is not walkable. Unauthorized foot traffic can cause permanent panel deformation, core crushing, seal failure, and eventual leaks.

Always confirm your roof panel's load rating with the manufacturer before stepping on it. When in doubt, use walking boards and stay over purlins. Safety comes first.
