Rockwool Sandwich Panel Wall Insulation for Steel Structure Buildings

Fire-resistant rockwool sandwich panels provide superior thermal and acoustic insulation for steel structure buildings, combining durability, energy efficiency, and easy installation.

product orgin:

China

shipping port:

Xiamen/Qingdao

payment:

T/T;L/C at sight

color:

Customized

product categories

new products

product details

Product introduction

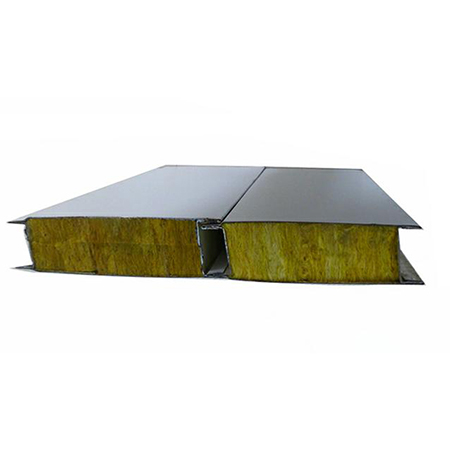

Rockwool wall panels

Rockwool sandwich panel is a prefabricated building material used for walls, roofs, and partitions, consisting of two outer metal sheets with a core of high-density rock wool (also known as mineral wool) insulation in between. This construction provides excellent fire resistance, thermal insulation, and acoustic properties.

Product advantages

☆Fire Resistance

Rock wool is inherently non-combustible, making these panels highly effective in preventing fire spread and contributing to building safety.

☆Thermal Insulation

The rock wool core effectively insulates against heat and cold, leading to energy savings in heating and cooling.

☆Acoustic Performance

Rock wool sandwich panels are also excellent at absorbing sound, reducing noise pollution.

☆Durability

The panels are stable and resistant to changes in temperature and humidity, ensuring longevity.

☆Versatility

They are widely used in various applications including steel structure buildings, prefabricated houses, clean rooms, cold storage, warehouses, and more.

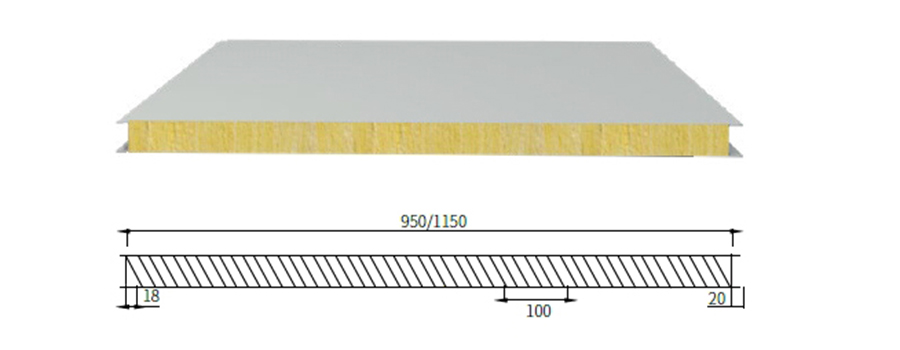

Product specifications

Specification	Details
Core Thickness	50/75/100/150/200 mm
Panel Width	Standard 950mm,1150mm
Panel Length	20FT container: ≤ 5.95m 40FT container: ≤ 11.95m
Density of Core	80 kg/m³
Thermal Conductivity	50mm	0.749 W/(m·K)
	75mm	0.530 W/(m·K)
	100mm	0.411 W/(m·K)
	150mm	0.268 W/(m·K)
	200mm	0.210 W/(m·K)
Fire Rating	Class A1 (excellent fire resistance)
Surface sheets	PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel
Aluminumsheets/Al-Mg-Mnalloymetal sheet	0.70 - 1.20 mm
Steel thickness	0.40 - 0.70 mm
Stainless steel	0.40 - 0.60 mm

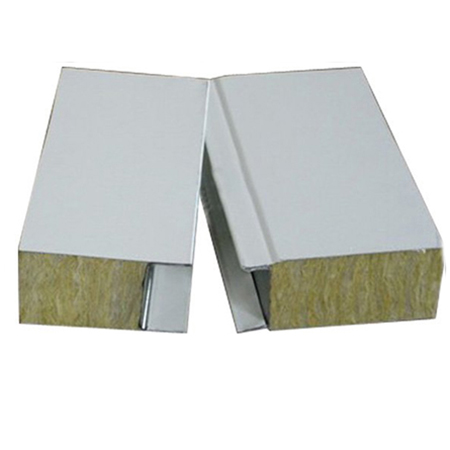

Sandwich panels connection types

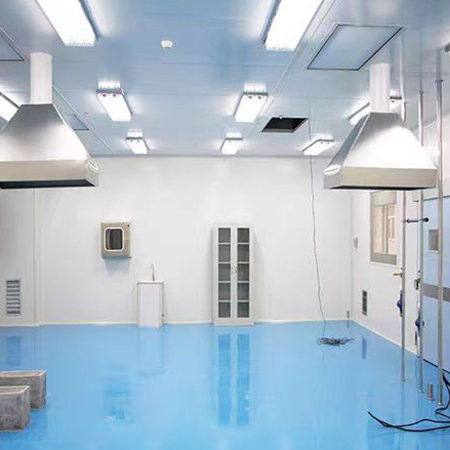

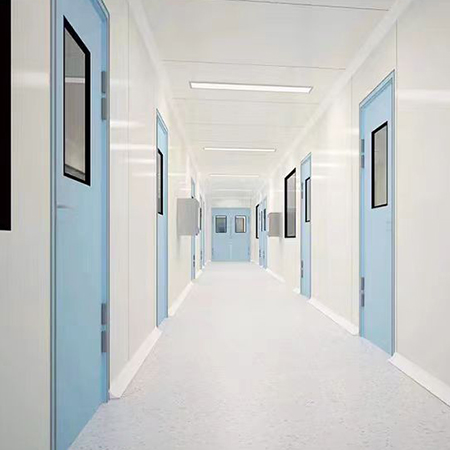

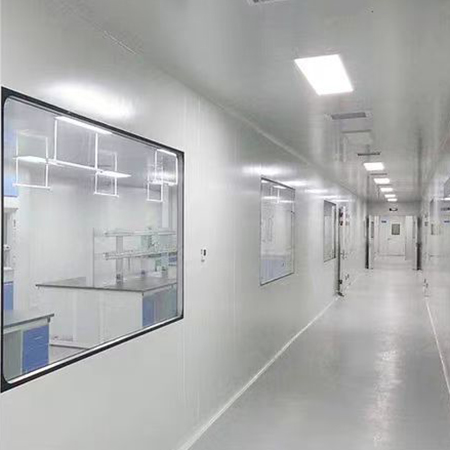

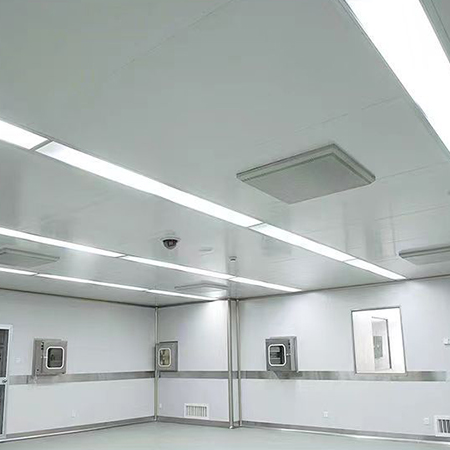

Product applications

These rockwool sandwich panels deliver fireproof wall insulation for steel structures. Their thermal and acoustic properties enhance energy efficiency while meeting strict safety standards, making them ideal for cold storage, workshops, and noise-sensitive facilities.They are perfect for industrial warehouses, factories, and commercial buildings.

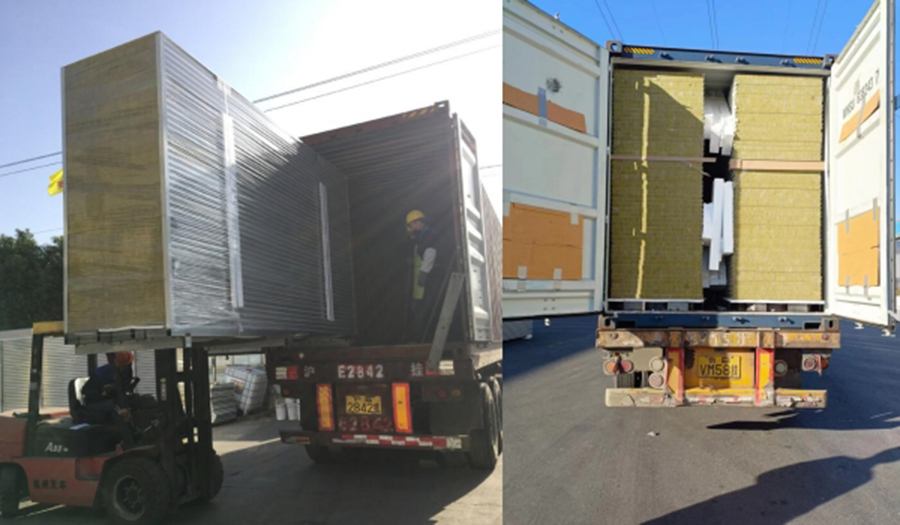

Packing & Delivery

☆ Packing

·Seaworthy packing standards:

Rockwool panels packing

PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

Service&Support

☆Service
Xiamen Yumi New Material Tech. Co., Ltd. Is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
