50mm pioneer coloured PUR/PIR insulated wall sandwich panels
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product introduction
PU/PIR energy-saving panels feature a unique polyurethane core that delivers exceptional thermal efficiency with minimal thickness. This innovative design achieves maximum energy conservation while optimizing space. The core's low thermal conductivity ensures superior insulation, making these panels an ideal, compact solution for high-performance building envelopes that require outstanding energy savings and material efficiency.
Product features
☆Fire Performance
Polyurethane is a Class B fire-rated material, effectively reducing fire damage.
☆Thermal Insulation
With a thermal conductivity between 0.019-0.023 W/m·K, polyurethane is an excellent insulating material. Superior joint design ensures air tightness and optimal thermal performance.
☆Sound Insulation
Offers good sound insulation, effectively reducing noise disturbance.
☆Water/Air Tightness
The hydrophobic nature of polyurethane (water absorption ≤5%) and well-designed joints maintain excellent air tightness.
☆Durability
High strength and long-lasting stability, with an approximate density of 42 kg/m³.
☆Aesthetic Appeal

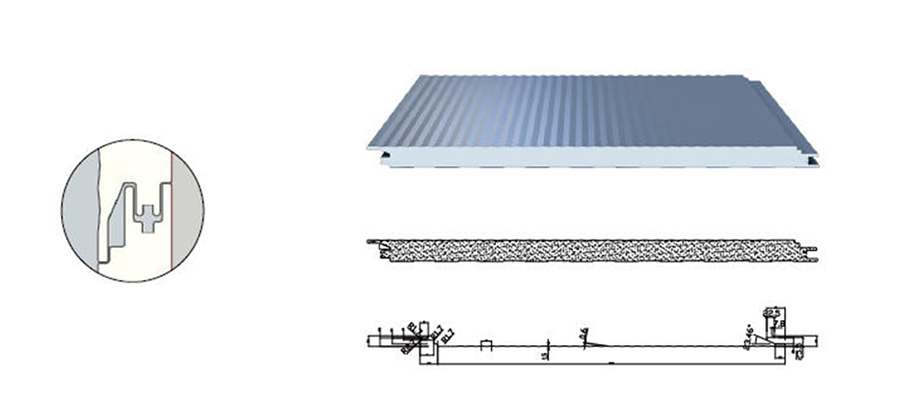

Features concealed screw joints for a flat panel surface. The coated finish provides rich, long-lasting color options.
Product specifications
|
Panel name |
Polyurethane Sandwich Panel |
|
Effective width |
950/1150mm |
|
Core thickness |
50mm 75mm 100mm 150mm 200mm |
|
Coating type |
PE, SMP, HDP, PVDF |
|
Steel sheet (GI/PPGI/PPGL) |
0.40-0.75 mm |
|
Aluminum metal sheets |
0.60-1.20 mm |
|
Surface sheets |
Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm |
|
Aluminum metal sheets:0.60-1.20 mm |
|
|
Aluminum foils:0.065 mm |
|
|
PVC sheets |
|
|
Core material |
PIR/PUR |
|
Core density |
35-45 kg/m3 |
|
Thermal conductivity |
≤0.023 w/m· k |
Product applications

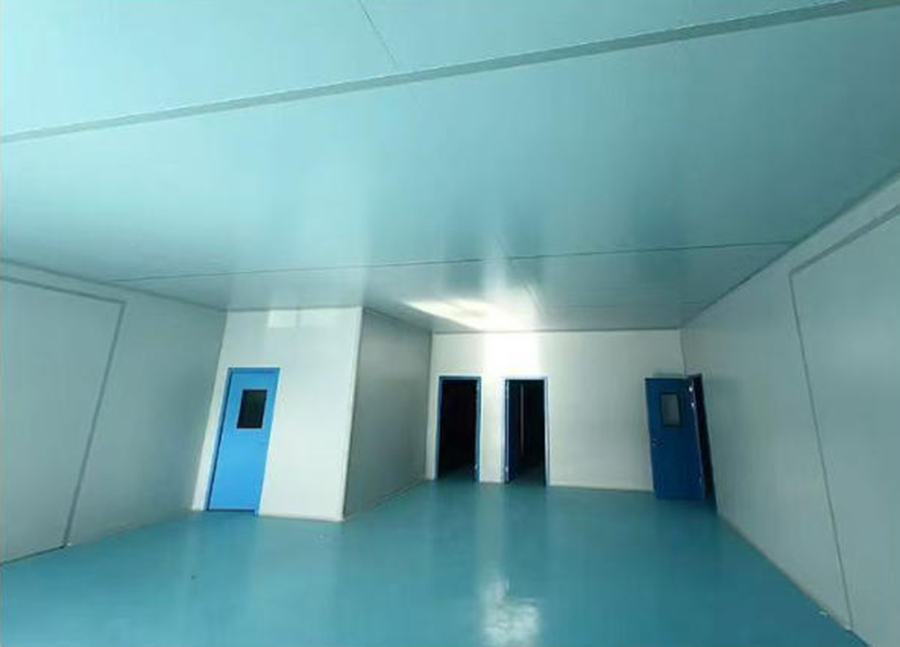

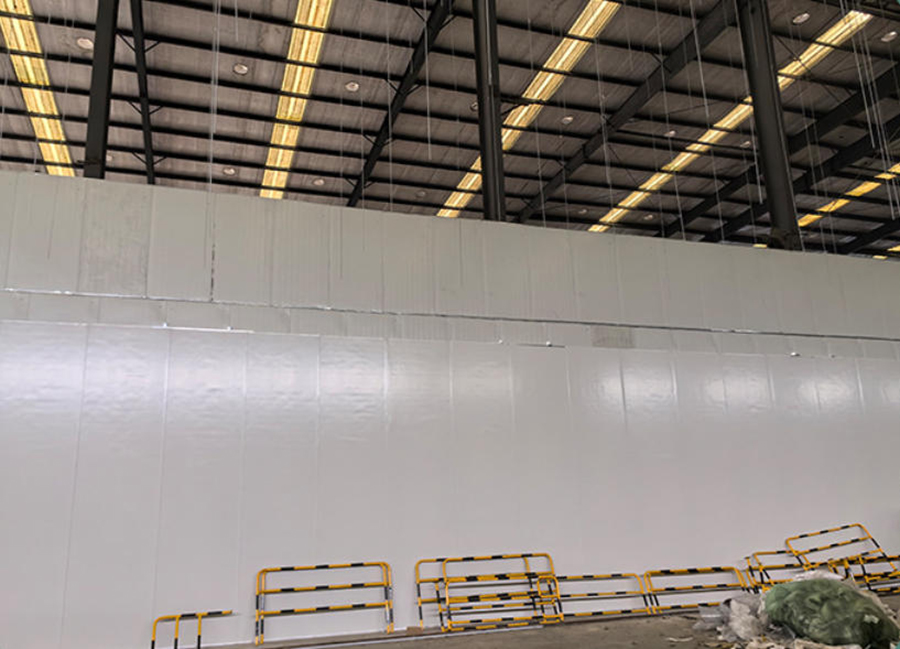

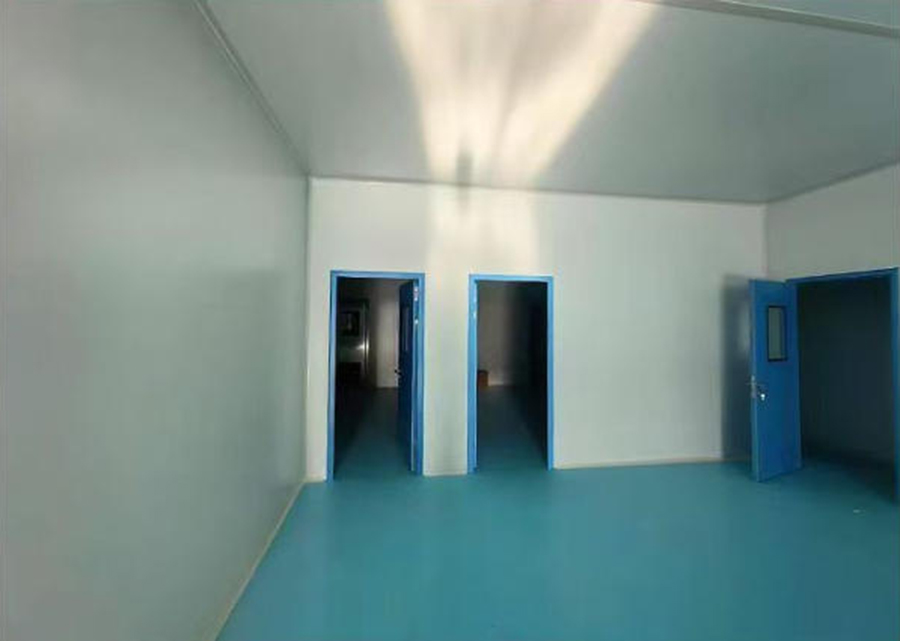

These sandwich panels are ideal for constructing cold storage facilities, clean rooms, and industrial buildings. Our prefabricated PU/PIR insulated wall panels provide excellent thermal insulation and fire resistance. These sandwich panels ensure energy efficiency, safety, and quick installation for durable, high-performance building envelopes.
Product installation
Packing & Delivery
☆ Packing
·Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
The PU sandwich wall panel is widely used in the large-sized factory buildings, warehoused, cold room, storages, parking shed, exhibition halls, gymnasiums, etc. MOQ:500M²/Color & Size
35mm thick PU wall sandwich panels can be 930mm,1000mm or 1120mm.This is an affordable option.MOQ:500 M²/Color & Size
Insulated Polyisocyanurate (PIR) sandwich panels in 75mm thickness,is a favorable choice for cold room projects. MOQ:500 M²/ Color & Size.
100mm is a regular thickness for cold room panels,our tongue and groove joint PIR panel can be your best choice. MOQ:500 M²/ Color & Size
PIR sandwich panel with high density, ranges from 45-55 kg/m³, the thermal ocnductivity as low as 0.018W/mK, applicable for cold room storage facilities. MOQ: 500㎡ color&size
