50mm pioneer coloured PUR/PIR insulated wall sandwich panels
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product introduction
Prefabricated insulated sandwich panels are engineered for high-performance interior walls and ceilings. These ready-to-install panels integrate superior thermal insulation and effective sound absorption into a single, lightweight unit. They significantly reduce construction time, provide excellent fire resistance, and create durable, energy-efficient partitions ideal for commercial, industrial, and residential applications.
Product features
☆These partition panels are designed for interior walls and ceilings in buildings, as well as for walls in mobile container houses.
☆The panels offer excellent load-bearing capacity and superior air tightness.
☆They provide effective thermal insulation and prevent thermal bridging.
☆The surface layers are available in color-coated steel, aluminum foil, petrochemical steel, and stainless steel.

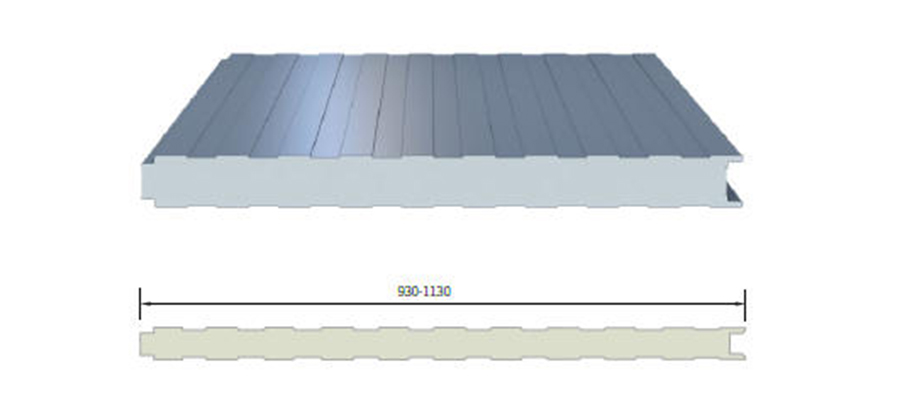

Product specifications
|
Panel name |
Polyurethane Sandwich Panel |
||
|
Effective width |
950/1120mm |
||
|
Core thickness |
40mm 50mm 75mm 100mm |
||
|
Coating type |
PE, SMP, HDP, PVDF |
||
|
Steel sheet (GI/PPGI/PPGL) |
0.40-0.75 mm |
||
|
Aluminum metal sheets |
0.60-1.20 mm |
||
|
Surface sheets |
Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm |
||
|
Aluminum metal sheets:0.60-1.20 mm |
|||
|
Aluminum foils:0.065 mm |
|||
|
PVC sheets |
|||
|
Core material |
PIR/PUR |
Rockwool with PU edges |
Glass wool with PU edges |
|
Core density |
35-45 kg/m3 |
110-150 kg/m3 |
48-64 kg/m3 |
|
Thermal conductivity |
≤0.023 w/m· k |
0.035-0.041 w/m·k |
0.035-0.041 w/m·k |
Product applications

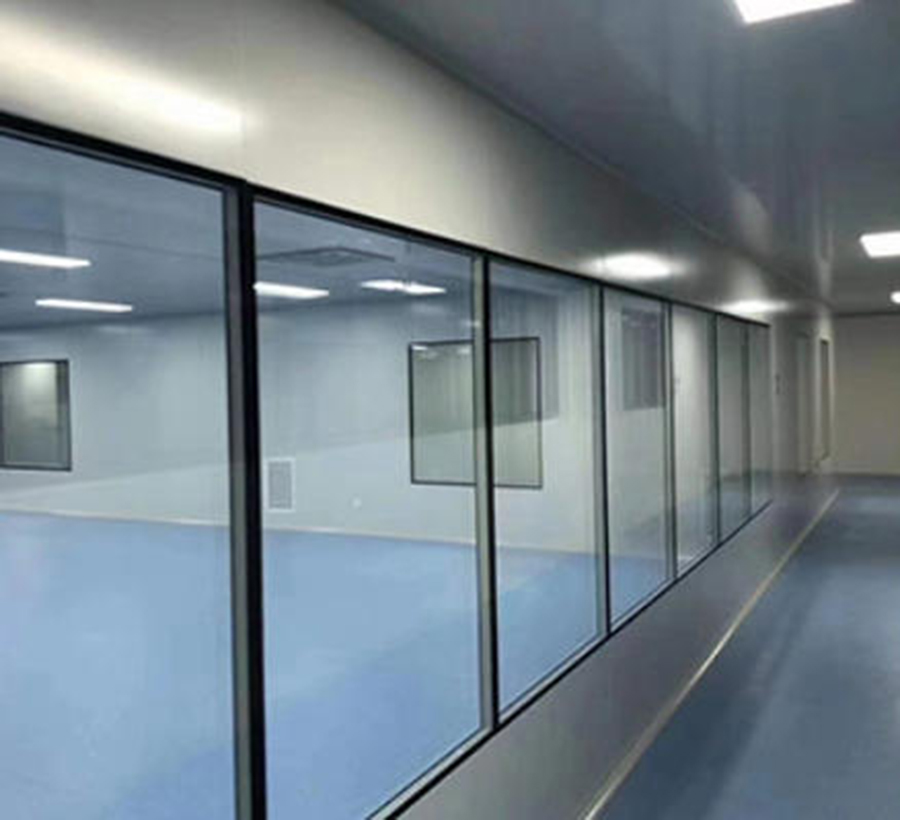

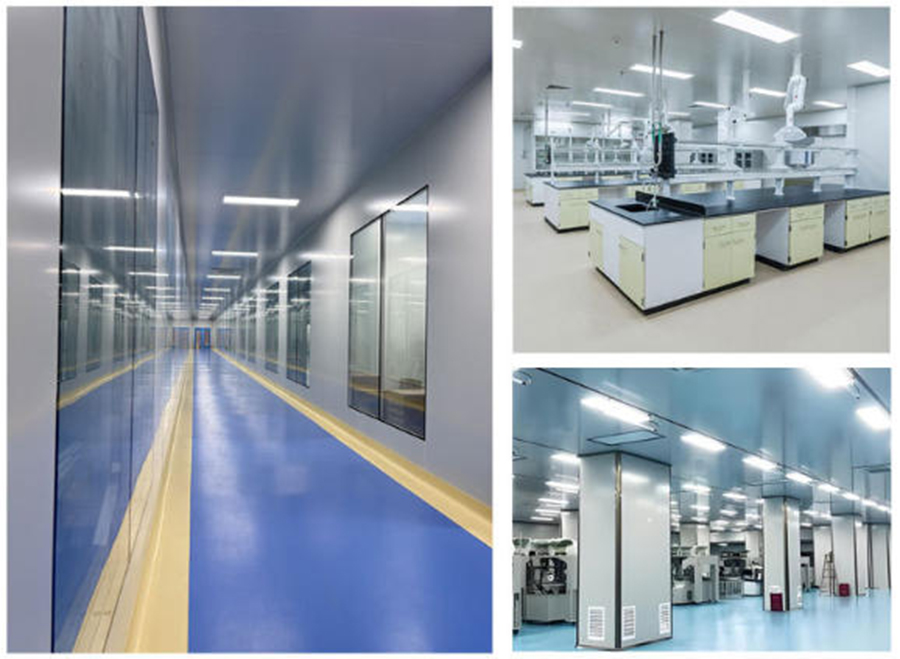

Prefabricated insulated sandwich panels are ideal for interior walls and ceilings in commercial buildings, industrial facilities, and residential projects. These ready-to-install panels provide excellent thermal insulation, sound absorption, and fire resistance, making them perfect for offices, hotels, hospitals, and clean rooms.
Packing & Delivery
☆ Packing
·Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
The PU sandwich wall panel is widely used in the large-sized factory buildings, warehoused, cold room, storages, parking shed, exhibition halls, gymnasiums, etc. MOQ:500M²/Color & Size
35mm thick PU wall sandwich panels can be 930mm,1000mm or 1120mm.This is an affordable option.MOQ:500 M²/Color & Size
Insulated Polyisocyanurate (PIR) sandwich panels in 75mm thickness,is a favorable choice for cold room projects. MOQ:500 M²/ Color & Size.
100mm is a regular thickness for cold room panels,our tongue and groove joint PIR panel can be your best choice. MOQ:500 M²/ Color & Size
PIR sandwich panel with high density, ranges from 45-55 kg/m³, the thermal ocnductivity as low as 0.018W/mK, applicable for cold room storage facilities. MOQ: 500㎡ color&size
