50mm pioneer coloured PUR/PIR insulated wall sandwich panels
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product introduction

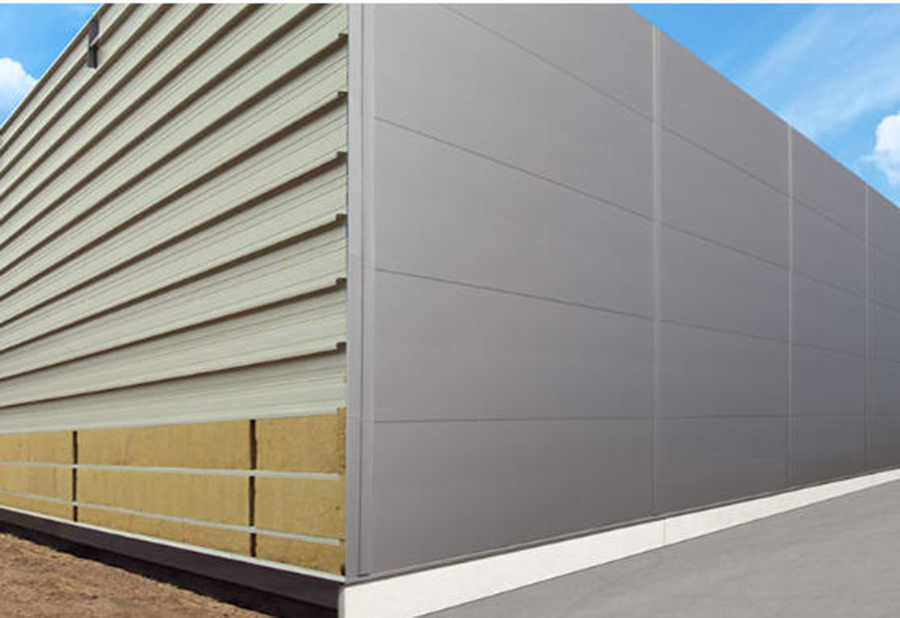

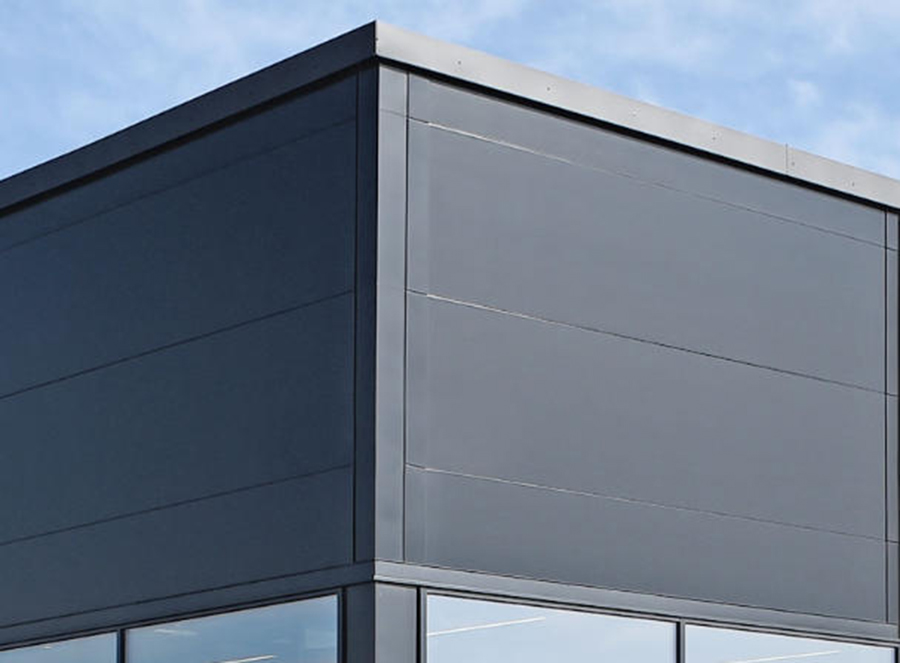

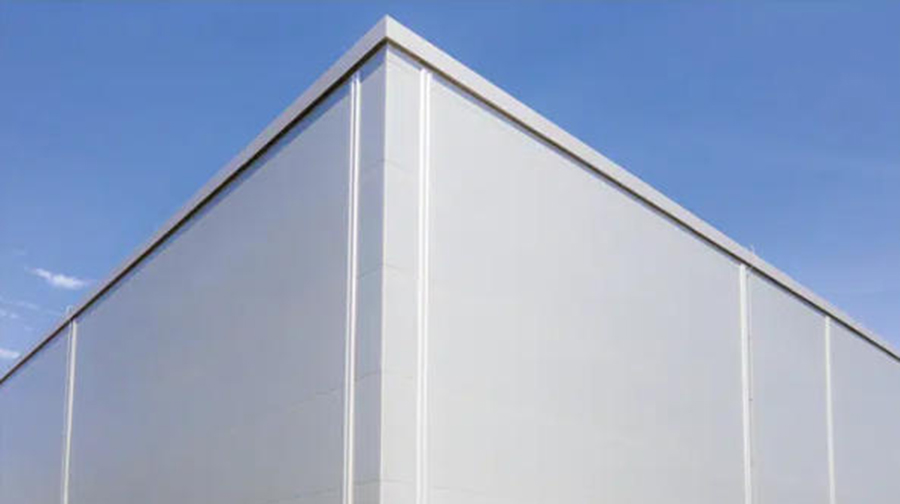

A sandwich corner panel is an L-shaped or Z-shaped component that provides a finished and reinforced connection where insulated sandwich panels meet at corners. They are used in construction to enhance structural integrity, improve aesthetics, prevent moisture and air leaks, and protect the edges of the panels from impact. These specialized corners are available in various materials and can be designed for internal, external, or roof applications.
Product features
☆Structural integrity
Reinforces the joint where panels meet, adding strength to the corner.
☆Aesthetic appeal
Provides a clean, professional, and often seamless finish, reducing the need for separate, less attractive corner flashings.
☆Weatherproofing
Seals joints to prevent water and air ingress, which is crucial for external and roof corners.
☆Protection
Shields the edges of the panels from impact and wear, extending the life of the construction.
☆Thermal performance
Helps maintain the insulation continuity at the corners, improving the energy efficiency of the building.
☆Hygiene
Creates a seamless transition in internal corners, which can simplify cleaning in environments like cold stores or clean rooms.
Product specifications
|
Panel name |
Sandwich Corner Panel |
||
|
Effective width |
300-2000mm |
||
|
Core thickness |
30mm 40mm 50mm 70mm 80mm 100mm 150mm |
||
|
Coating type |
PE, SMP, HDP, PVDF |
||
|
Steel sheet (GI/PPGI/PPGL) |
0.40-0.75 mm |
||
|
Aluminum metal sheets |
0.60-1.20 mm |
||
|
Surface sheets |
Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm |
||
|
Aluminum metal sheets:0.60-1.20 mm |
|||
|
Aluminum foils:0.065 mm |
|||
|
PVC sheets |
|||
|
Core material |
PU/PIR |
Rockwool with PU edges |
Glass wool with PU edges |
|
Core density |
35-45 kg/m3 |
110-150 kg/m3 |
48-64 kg/m3 |
|
Thermal conductivity |
≤0.023 w/m· k |
0.035-0.041 w/m·k |
0.035-0.041 w/m·k |
Product applications
☆Internal corners
Used for seamless transitions between internal walls and ceilings.
☆External corners
Provide weather-tight seals and protection for external walls.
☆Roof corners
Ensure proper water drainage and prevent leaks at roof junctions.
☆Curved corners
Available as pre-made panels to create unique and modern architectural designs.
Packing & Delivery
☆ Packing
·Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service & Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
The PU sandwich wall panel is widely used in the large-sized factory buildings, warehoused, cold room, storages, parking shed, exhibition halls, gymnasiums, etc. MOQ:500M²/Color & Size
35mm thick PU wall sandwich panels can be 930mm,1000mm or 1120mm.This is an affordable option.MOQ:500 M²/Color & Size
Insulated Polyisocyanurate (PIR) sandwich panels in 75mm thickness,is a favorable choice for cold room projects. MOQ:500 M²/ Color & Size.
100mm is a regular thickness for cold room panels,our tongue and groove joint PIR panel can be your best choice. MOQ:500 M²/ Color & Size
PIR sandwich panel with high density, ranges from 45-55 kg/m³, the thermal ocnductivity as low as 0.018W/mK, applicable for cold room storage facilities. MOQ: 500㎡ color&size
