50mm lightweight insulated EPS foam wall panels
EPS sandwich wall panels can be used indoors as partition wall and ceiling,or implemented vertically or horizontally for the external appearance of your building.MOQ:500M²/Color & Size
item no.:
N/Aproduct orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
EPS (Expanded Polystyrene) foam board is a lightweight rigid closed-cell foam. It is made of polystyrene particles containing volatile liquid foaming agents through pre-expansion, curing, molding, drying, and cutting. It can not only be made into foam products of different densities and shapes, but also foam boards of various thicknesses. EPS sandwich panels are widely used in construction, heat preservation, packaging, refrigeration, and other fields. At present, it is mainly used for wall insulation.
Physical Properties of EPS Foam Board
Density: 10~45kg/m3
Thermal conductivity: 0.024~0.041W/m.K
Operating temperature: Max 95°C
Incombustibility: A1-Class
Fire-proof rating: 180 minutes
Water Content: ≤10%
Water absorption: ≤30%
Bending strength: ≥12-18 Mpa
Bulking factor: <0.25%
Dry shrinking rate: <0.09%
Shock strength: ≥2.0Kj/m2
Product specifications
|
Panel type : |
Photovoltaic Roof Panels |
||
|
Effective width |
950/1000mm |
||
|
Panel thickness |
50/ 75/ 100/ 150mm |
||
|
Coating type |
PE, SMP, HDP, PVDF |
||
|
Steel sheet (GI/PPGI/PPGL) |
0.40-0.75 mm |
||
|
Aluminum metal sheets |
0.60-1.20 mm |
||
|
Surface sheets |
Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm |
||
|
Aluminum metal sheets:0.60-1.20 mm |
|||
|
Aluminum foils:0.065 mm |
|||
|
PVC sheets |
|||
|
Core material |
PIR/PUR |
Rockwool with PU edges |
Glass wool with PU edges |
|
Core density |
35-45 kg/m3 |
110-150 kg/m3 |
48-64 kg/m3 |
|
Thermal conductivity |
≤0.023 w/m· k |
0.035-0.041 w/m·k |
0.035-0.041 w/m·k |
Advantages of EPS Sandwich Panels

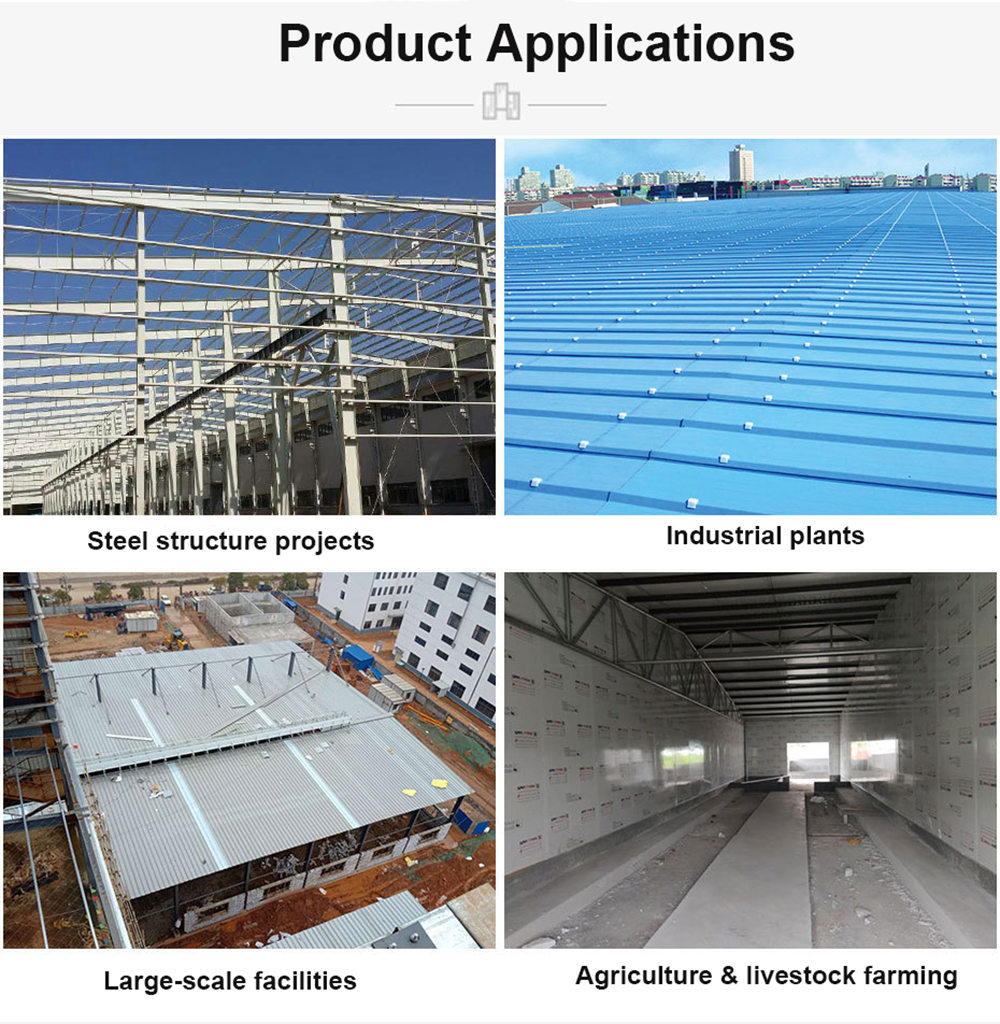

Applications of EPS Sandwich Panels

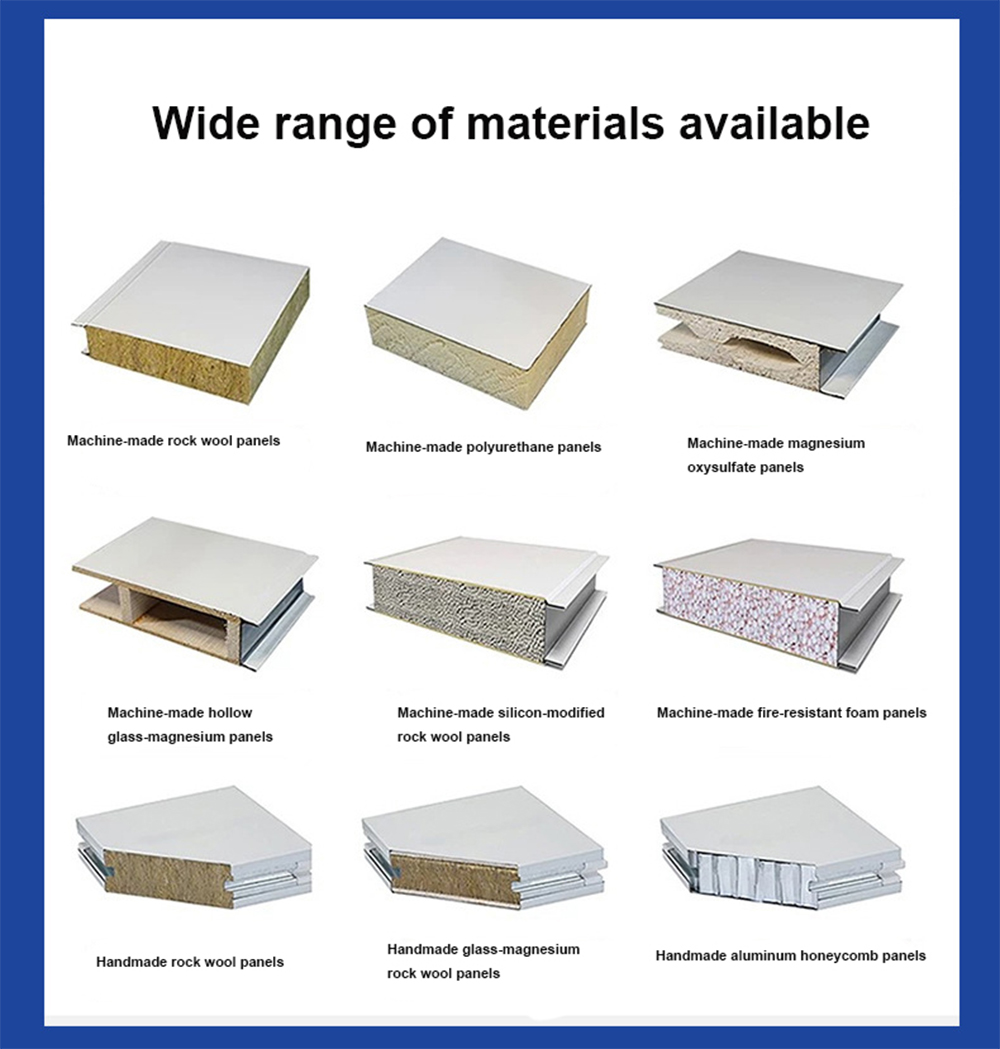

Wide Range of Material Available
Why Choose Yumisteel?
Yumisteel sandwich composite panels offer excellent insulation, heat resistance, high strength, and aesthetic appeal. They are fire-proof, flame-retardant, and easy to assemble, making them ideal for building envelopes and insulation cladding walls across various construction projects.
Our in-house production line for rock wool composite panels is equipped with a 6m bending machine, 6m shearing machine, drilling machine, blast cleaning equipment, and a full CNC system with automatic cutting, assembly, welding, and straightening functions,eliminating manual operation errors.
With strong technical expertise and efficient scale production, Yumisteel has established itself as a premier steel structure and wall panel fabrication and installation provider.
EPS sandwich wall panels can be used indoors as partition wall and ceiling,or implemented vertically or horizontally for the external appearance of your building.MOQ:500M²/Color & Size
25mm is the minimum thickness that we can make for now.MOQ:1000M²/ Color & Size.
A sandwich panel is one structure made of three layers of material: low density core inserted material in between two relatively thin steel skin layers. MOQ：500m²color&size
EPS sandwich panel, regular colors are white, blue, white gray, others can as per RAL color. MOQ: 500㎡ color&size
The EPS sandwich panel is beautiful in appearance ,bright in color and good in overall effect .it integrates load-bearing ,heat-insulation and waterproof ,and does not require secondary decoration.MOQ:500m²/color
EPS sandwich panels for insulate construction; MOQ 1000 meters;
