Product introduction

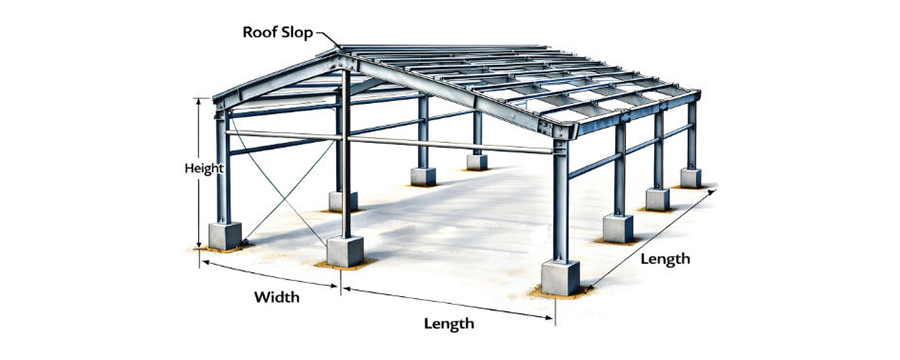

Steel structure frame

Pre-engineered steel structure with channel steel frames offers a modular building system that streamlines construction through factory-fabricated components, ensuring fast assembly, cost efficiency, and reliable structural performance for warehouses, workshops, and commercial facilities.

Product specification

Specification Item	Details / Range
System Type	Pre-Engineered Steel Structure with Channel Steel Frame Modular System
Primary Material	Hot-rolled or cold-formed channel steel (Q235B / Q345B or equivalent)
Frame Connection	Bolted rigid connections; fully bolted assembly (no on-site welding required)
Modular Dimensions (L×W×H)	Standard module: 6m × 3m × 3m; customizable up to 12m span
Floor System	Steel deck with composite concrete topping or OSB flooring (option available)
Wall Panel	Sandwich panel (EPS / Rockwool / PU foam) with steel facings, 50–100mm thickness
Roof Panel	Corrugated steel sheet + insulation + weatherproof membrane; slope ≥ 5%
Column Spacing	3m – 6m center-to-center (depending on load requirements)
Wind Load Resistance	Up to 0.6 kN/m² (equivalent to Typhoon Category 12)
Seismic Performance	Zone 8 (Chinese seismic intensity scale) with proper bracing design
Surface Treatment	Hot-dip galvanizing (≥ 80µm) or anti-corrosion primer + topcoat (color optional)
Thermal Conductivity (Wall)	≤ 0.035 W/(m·K) for PU-filled panels
Fire Resistance Rating	Class B1 (flame retardant) for insulation; Class A for steel structure
Service Life	25 – 50 years (depending on coating and environmental conditions)
Installation Time	40% – 60% faster than conventional cast-in-place construction
Foundation Requirement	Strip footing or pier foundation; lightweight design reduces excavation needs
Applicable Standards	GB 50017 (Chinese Steel Code), ASTM A36 / A572 equivalent accepted
Customization Options	Door/window openings, partition layout, mezzanine floor, roof overhang, color finish

Product Advantages

Speedy installation

Pre-engineered components arrive ready to bolt together, cutting on-site labor time by half compared to conventional steel structure systems.

Cost-efficient design

Lightweight channel steel frames reduce foundation requirements and material waste, lowering overall project budgets significantly.

Flexible scalability

Modular building system layouts adapt easily to warehouses, workshops, or offices, allowing future expansions without major structural changes.

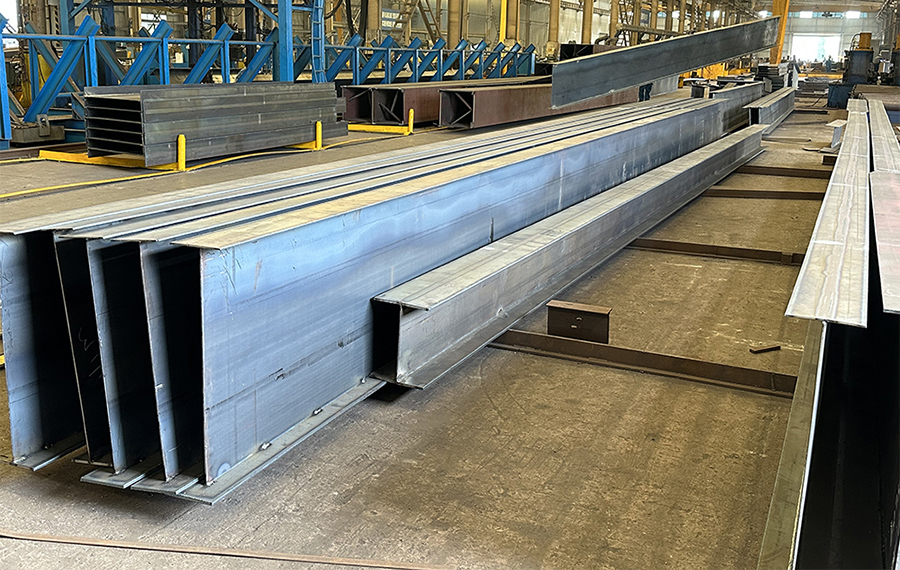

steel structure

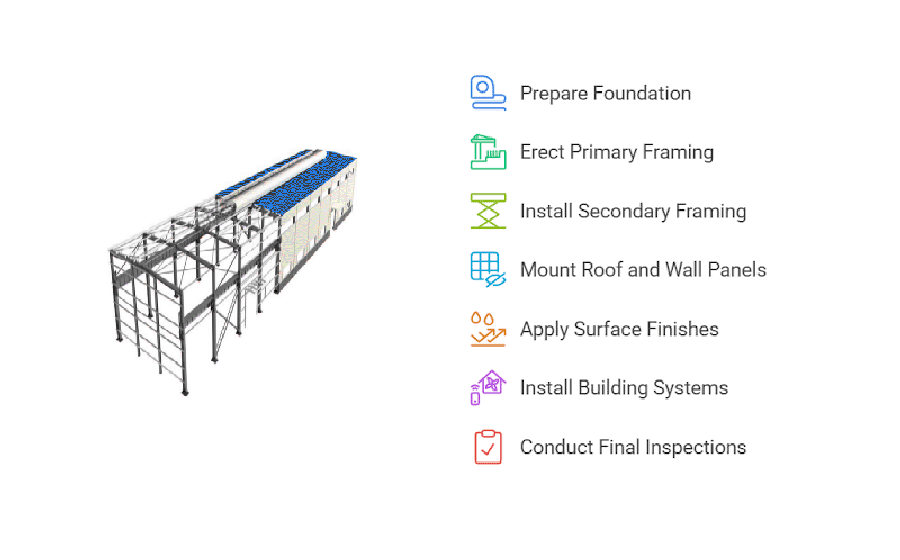

Steel Structure Installation Process

Steel Structure Installation Process

Production Project


Steel structure building strongpack nigeria	Hazmat warehouse in nigeria

Product Certificate

A CE certificate for steel structures confirms compliance with EU harmonized standards like EN 1090. It covers fabrication, material traceability, and load-bearing safety. Required for structural steel beams, columns, and prefab buildings sold in Europe.

CE certificate

Service

☆If you have the drawings

We can provide you the full service of production, shipment and

Installation guide, which is high quality and low cost.Because we own all kinds of technical facilities, complete test instruments and advanced production processes.

☆If you have no drawings

Our excellent design team will freely design the steel structure buildings for you.If you give us the following information, we will give you an satisfactory drawing.

1. Dimension:Length, width, ridge height, eave height, etc.

2. Doors and Windows:Dimension, quantity, installation position.

3. Local Climate:Wind load, snow load, roof load, Seismic load

4. Insulation materials:Insulated Sandwich panel or Single Steel Sheet

5. Crane beam:If you need it, it will be very helpful that you tell us its technological parameters.

6. Usage:If you tell us the application of light steel structure warehouse, we can exactly design the drawings or match suitable materials for you.

7. Other requirements:Such as fire proofing, transparent roof, etc.Please kindly inform us, too.

Packing & Delivery

☆ Packing

Seaworthy packing standards:

If there is other package requested,please feel free to discuss with Yumisteel sales team.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

FAQ

Q1: What is the maximum span?

A: Our system supports clear spans up to 60 meters without interior columns. Standard beams span 10-30 meters, while heavier girders can go longer for warehouses.

Q2: How does it save costs?

A: It saves money three ways-lighter foundations, faster installation, and no interior columns. This typically cuts 15-25% off total project costs compared to multi-span designs.

Q3: How do you control sagging (deflection)?

A: We use tapered frames, proper beam sizing, and set deflection limits. For spans over 35 meters, we add tie beams or knee braces to reduce the effective span without using floor columns.

Q4: What steel grades are available?

A: We offer ASTM A992 for the US, S355 for Europe, and Q355B for Asia. Stronger grades let us use lighter sections, which lowers steel weight and shipping costs.

Q5: How is corrosion protected?

A: For coastal or humid areas, we offer hot-dip galvanizing (lasts 20–30 years) or weathering steel (Corten). For indoor use, epoxy paint works well and lasts 10–15 years.
