Product introduction

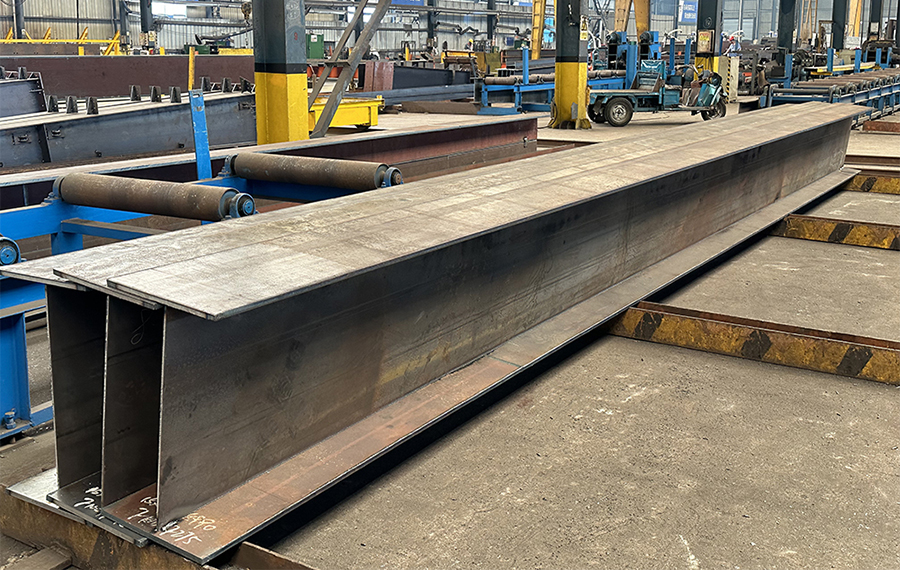

steel structure

Pre engineered steel structure building kits offer industrial warehouses a fast, reliable, and cost-efficient construction solution. Designed with precision, these steel building kits feature durable galvanized frames, clear-span interiors, and flexible bay spacing. Ideal for heavy storage and logistics centers, they ensure rapid assembly, low maintenance, and long-term structural performance in demanding environments.

Product specification

Specification Item	Details / Range
System Type	Pre-Engineered Steel Structure with Channel Steel Frame Modular System
Primary Material	Hot-rolled or cold-formed channel steel (Q235B / Q345B or equivalent)
Frame Connection	Bolted rigid connections; fully bolted assembly (no on-site welding required)
Modular Dimensions (L×W×H)	Standard module: 6m × 3m × 3m; customizable up to 12m span
Floor System	Steel deck with composite concrete topping or OSB flooring (option available)
Wall Panel	Sandwich panel (EPS / Rockwool / PU foam) with steel facings, 50–100mm thickness
Roof Panel	Corrugated steel sheet + insulation + weatherproof membrane; slope ≥ 5%
Column Spacing	3m – 6m center-to-center (depending on load requirements)
Wind Load Resistance	Up to 0.6 kN/m² (equivalent to Typhoon Category 12)
Seismic Performance	Zone 8 (Chinese seismic intensity scale) with proper bracing design
Surface Treatment	Hot-dip galvanizing (≥ 80µm) or anti-corrosion primer + topcoat (color optional)
Thermal Conductivity (Wall)	≤ 0.035 W/(m·K) for PU-filled panels
Fire Resistance Rating	Class B1 (flame retardant) for insulation; Class A for steel structure
Service Life	25 – 50 years (depending on coating and environmental conditions)
Installation Time	40% – 60% faster than conventional cast-in-place construction
Foundation Requirement	Strip footing or pier foundation; lightweight design reduces excavation needs
Applicable Standards	GB 50017 (Chinese Steel Code), ASTM A36 / A572 equivalent accepted
Customization Options	Door/window openings, partition layout, mezzanine floor, roof overhang, color finish

Product Advantages

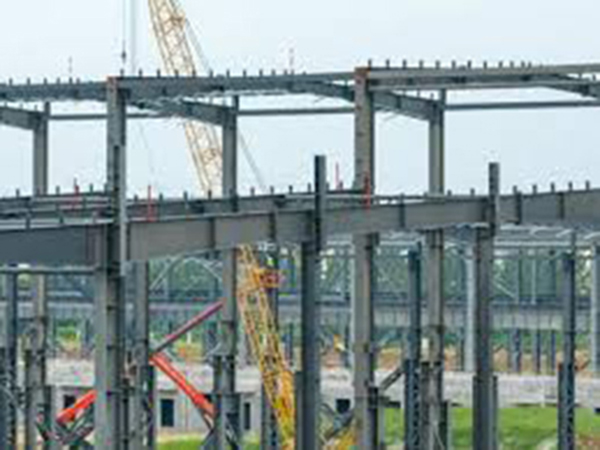

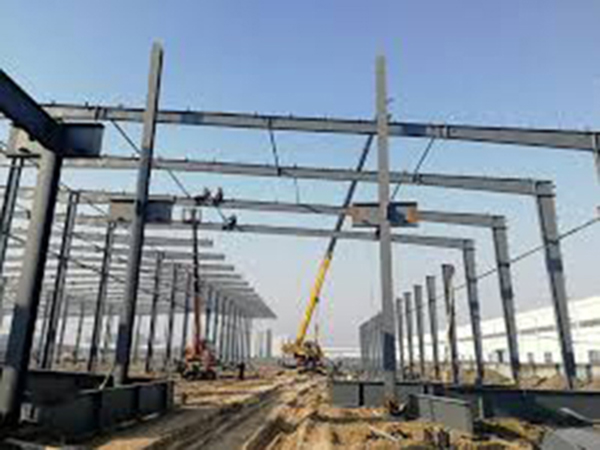

Rapid Construction & Cost Savings	Flexible Clear-Span Design
Pre engineered steel structure building kits ship with pre-drilled, pre-welded components for bolt-up assembly. This slashes construction timelines by up to 50% and reduces on-site labor costs, getting your industrial warehouse operational much faster than conventional methods.	These steel building kits offer clear-span interiors up to 100 meters wide without intermediate columns. This maximizes usable floor space for heavy machinery, racking systems, and logistics operations, allowing industrial warehouses to adapt layouts as storage needs evolve.

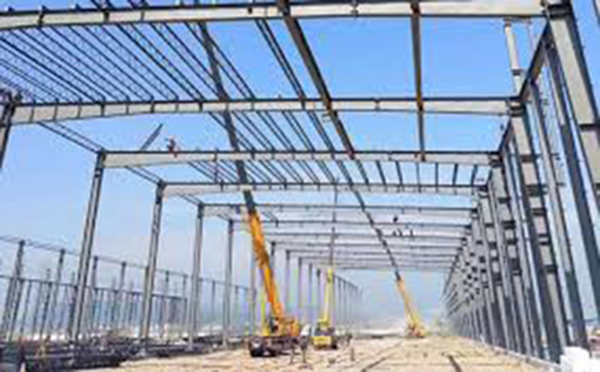

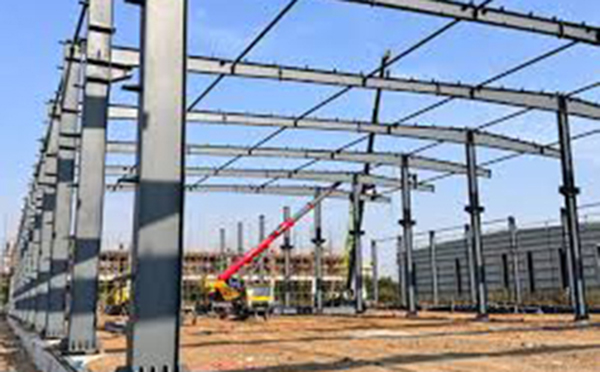

Exceptional Durability & Low Maintenance	Sustainable & Energy-Efficient
Manufactured from high-tensile galvanized steel, these pre engineered structures resist corrosion, pests, and fire. With minimal upkeep requirements, industrial warehouses maintain their structural integrity for decades, even in harsh coastal or high-humidity environments.	Pre engineered steel structure building kits are fully recyclable and can integrate insulated roof and wall panels to reduce heating and cooling loads. This lowers operational energy costs for industrial warehouses while supporting green building certifications like LEED.

Production Project


Steel structure building strongpack nigeria	Hazmat warehouse in nigeria

Product Certificate

A CE certificate for steel structures confirms compliance with EU harmonized standards like EN 1090. It covers fabrication, material traceability, and load-bearing safety. Required for structural steel beams, columns, and prefab buildings sold in Europe.

CE certificate

Service

☆If you have the drawings

We can provide you the full service of production, shipment and

Installation guide, which is high quality and low cost.Because we own all kinds of technical facilities, complete test instruments and advanced production processes.

☆If you have no drawings

Our excellent design team will freely design the steel structure buildings for you.If you give us the following information, we will give you an satisfactory drawing.

1. Dimension:Length, width, ridge height, eave height, etc.

2. Doors and Windows:Dimension, quantity, installation position.

3. Local Climate:Wind load, snow load, roof load, Seismic load

4. Insulation materials:Insulated Sandwich panel or Single Steel Sheet

5. Crane beam:If you need it, it will be very helpful that you tell us its technological parameters.

6. Usage:If you tell us the application of light steel structure warehouse, we can exactly design the drawings or match suitable materials for you.

7. Other requirements:Such as fire proofing, transparent roof, etc.Please kindly inform us, too.

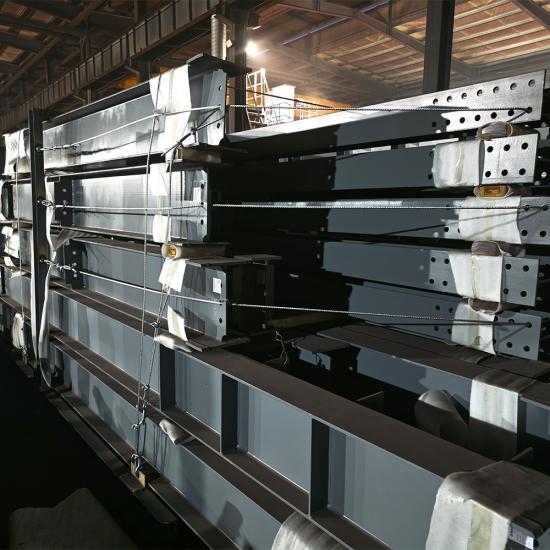

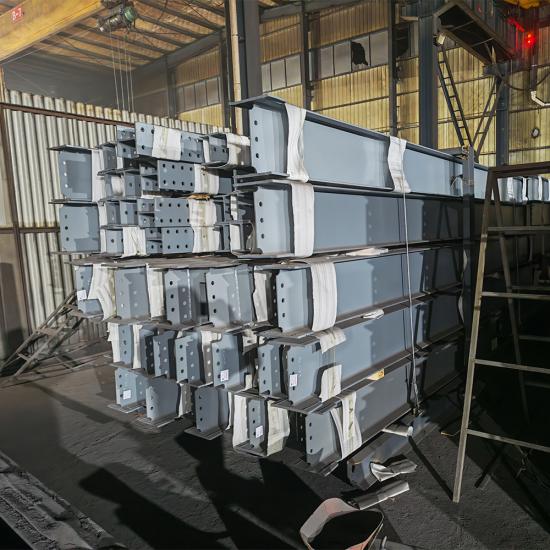

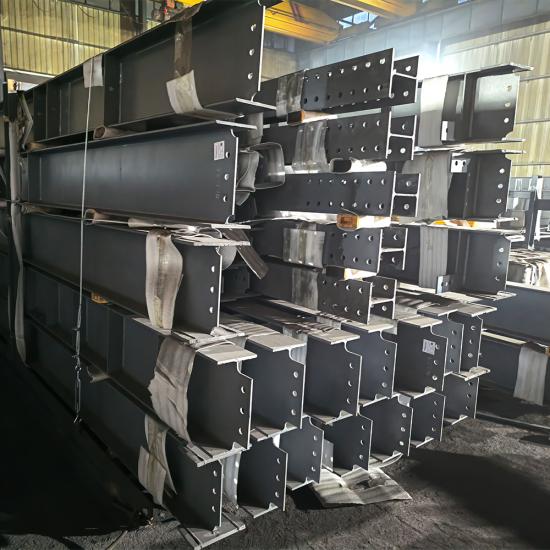

Packing & Delivery

☆ Packing

Seaworthy packing standards:

If there is other package requested,please feel free to discuss with Yumisteel sales team.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

FAQ

Q1. What is the lead time for a standard 1,000㎡ warehouse kit from order to delivery?

A1. For a standard 1,000㎡ warehouse, our lead time is usually 20 to 25 working days after deposit confirmation. Shipping time depends on your port, roughly 15 to 30 days by sea. We can expedite if you have a tight schedule.

Q2. Can you provide a shipping cost estimate to my nearest port, and is the kit packed in containers or bulk?

A2. Yes, we can quote shipping to any major port. Please share your port name and postal code. For kits under 1,500㎡, we recommend container packing to avoid damage. Larger orders can go bulk with waterproof tarpaulin wrapping. Both options are available.

Q3. Do you offer installation drawings and step-by-step guides, or do we need to hire local engineers?

A3. We provide full erection drawings, assembly manuals, and 3D installation videos. Most clients use our guides and hire local labor for assembly. Remote technical support via video call is also included at no extra cost.

Q4. What is the maximum wind and snow load this kit can handle for my region?

A4. Our standard design handles wind loads up to 0.6 kN/m² and snow loads up to 0.5 kN/m². If your region has higher requirements, we can customize the frame with thicker steel or additional bracing. Just send us your local building code, and we will adjust accordingly.

Q5. Are all bolts, columns, rafters, and roof panels included in the kit, or do I need to buy extra accessories separately?

A5. Everything you need for a complete shell structure is included: main frames, purlins, roof and wall panels, fasteners, sealant strips, and anchor bolts. You only need to prepare concrete foundation and local labor. We will provide a detailed packing list before production so you can verify every item.
