50mm lightweight insulated EPS foam wall panels
EPS sandwich wall panels can be used indoors as partition wall and ceiling,or implemented vertically or horizontally for the external appearance of your building.MOQ:500M²/Color & Size
item no.:
N/Aproduct orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product Introduction
What is EPS Sandwich Panels?
EPS (Polystyrene) Sandwich Panels are composed of three layers. The external and internal layers are two dyed corrugated plates made from galvanized steel or aluminum. These metal skins provide structural strength, weather resistance, and a finished appearance. The core layer is Polystyrene (EPS) rigid foam, which delivers lightweight thermal insulation, sound absorption, and moisture resistance. All three layers are permanently bonded together to form a rigid composite panel. This structure is widely used for walls, roofs, and partitions in prefabricated buildings, cold storage rooms, and warehouses.
Product Specification
|
Specification |
Details |
|
Panel Thickness |
50mm, 75mm, 100mm, 120mm, 150mm, 200mm |
|
Panel Width |
1000mm (standard), 950mm |
|
Panel Length |
2000mm–12000mm (custom) |
|
Steel Facings |
Pre painted galvanized steel / color coated steel |
|
Steel Thickness |
0.4mm–0.7mm (both sides) |
|
Aluminum alloy metal thickness |
0.60-1.20mm; |
|
Core Material |
EPS（Polystyrene） |
|
Available length |
20ft container: <5.90m ; 40hc container: <11.95m |
|
Density |
8-24kg/m3 |
|
Applications |
Warehouses, workshops, industrial plants, logistics centers, commercial roofs, partition walls, fire-rated enclosures |

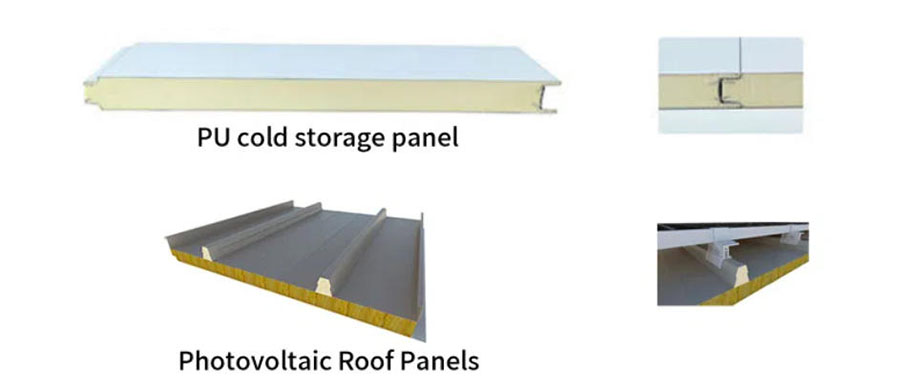

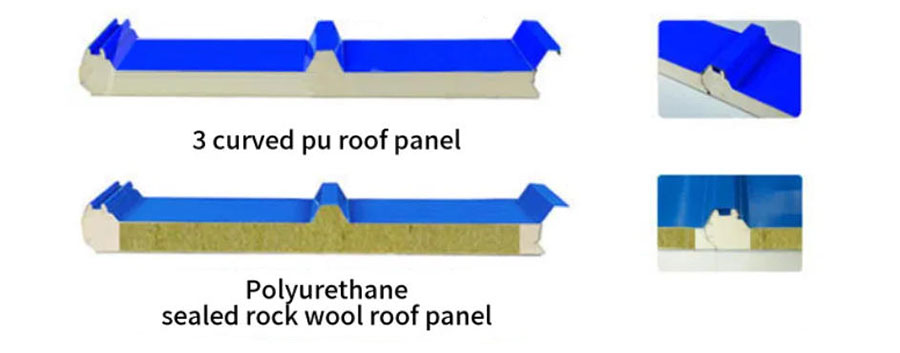

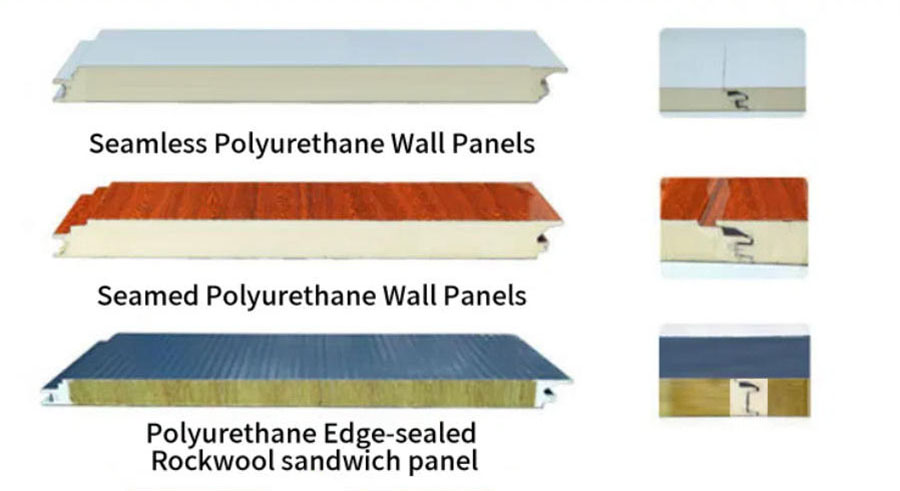

Main Prodcuts

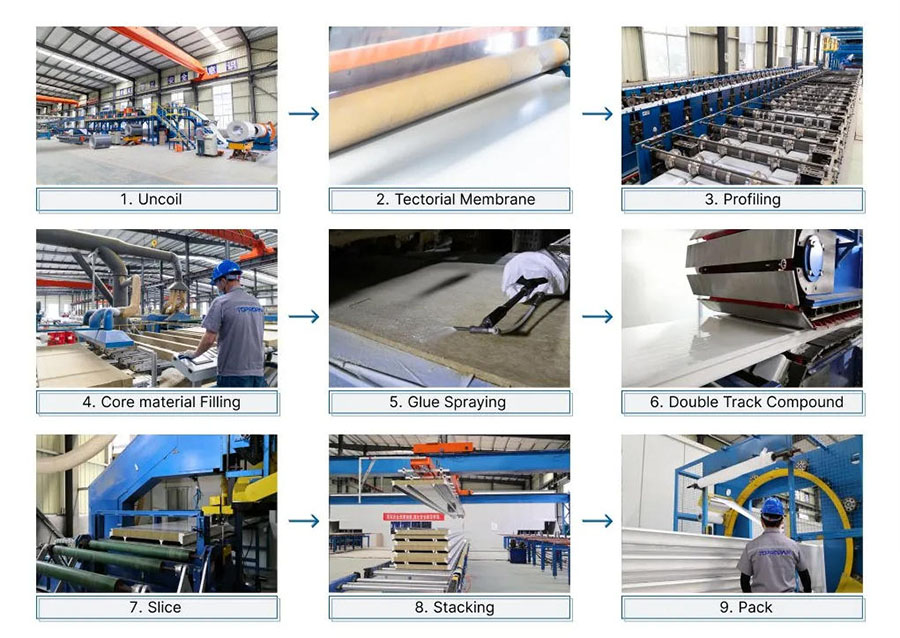

Production process
Why choose us?
Yumisteel-Your Trusted Construction Material Partner
✅ Excellent Quality
High-grade production lines + strict quality management = reliable products every time.
✅ Prompt Delivery
Big production capacity ensures fast delivery and on-time shipment worldwide.
✅ Worldwide Sales
Exported to 80+ countries, trusted by global customers for superior quality.
✅ Diverse Product Range
Container Houses | Corrugated Sheets | Steel Frames | Floor Deck | Sandwich Panels & more.
✅ Outstanding Services
24/7 responsive communication—before, during, and after your purchase.
✅ Professional Team
One-stop solution from design consultation to final installation support.
✅ Competitive Price
Factory-direct pricing designed to fit your budget without sacrificing quality.
EPS sandwich wall panels can be used indoors as partition wall and ceiling,or implemented vertically or horizontally for the external appearance of your building.MOQ:500M²/Color & Size
25mm is the minimum thickness that we can make for now.MOQ:1000M²/ Color & Size.
A sandwich panel is one structure made of three layers of material: low density core inserted material in between two relatively thin steel skin layers. MOQ：500m²color&size
EPS sandwich panel, regular colors are white, blue, white gray, others can as per RAL color. MOQ: 500㎡ color&size
The EPS sandwich panel is beautiful in appearance ,bright in color and good in overall effect .it integrates load-bearing ,heat-insulation and waterproof ,and does not require secondary decoration.MOQ:500m²/color
EPS sandwich panels for insulate construction; MOQ 1000 meters;
