50mm exterior thermal rockwool wall sandwich panel
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
item no.:
N/Aproduct orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product Introduction

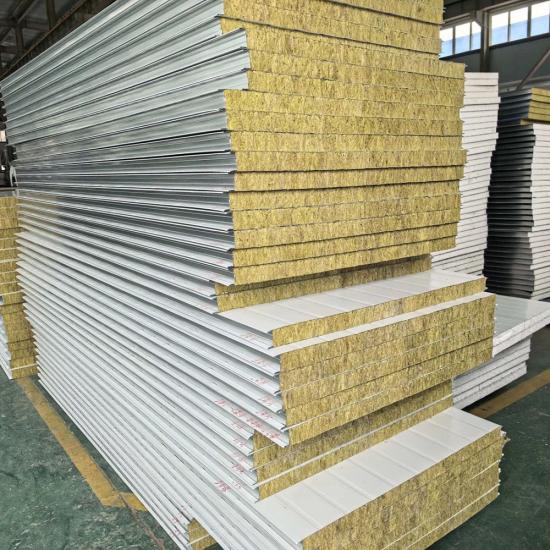

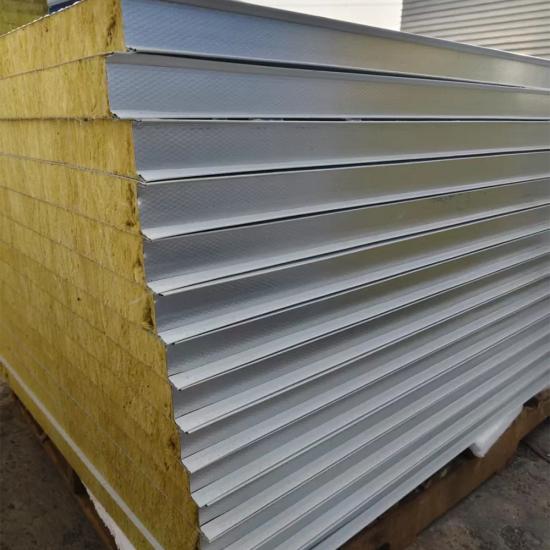

Rockwool Sandwich Wall Roof Panel
This panel uses two corrosion resistant steel sheets as outer layers. The core is high density rockwool. This structure delivers A2 fireproof protection, excellent thermal insulation, and strong sound absorption. The steel faces provide mechanical strength and impact resistance. It works perfectly for industrial walls, warehouse roofs, and prefab buildings. The rockwool core does not burn or release toxic smoke. This panel keeps your building safe, warm, and quiet.
Product Specification
|
Specification |
Details |
|
Panel Thickness |
50mm, 75mm, 100mm, 120mm, 150mm, 200mm |
|
Panel Width |
1000mm (standard), 950mm, 600mm (optional) |
|
Panel Length |
2000mm–12000mm (custom) |
|
Steel Facings |
Pre painted galvanized steel / color coated steel |
|
Steel Thickness |
0.4mm–0.8mm (both sides) |
|
Core Material |
Rock wool (stone wool) |
|
Density |
80–160kg/m³ |
|
Thermal Conductivity (λ) |
≤ 0.040 W/(m·K) |
|
Fire Rating |
A1 – A2 (non-combustible) |
|
Sound Absorption Coefficient (NRC) |
0.85 – 0.95 |
|
Sound Reduction Index (Rw) |
30 – 45 dB (depending on thickness) |
|
Melting Point |
> 1000°C |
|
Water Vapor Permeability (μ) |
1 (no capillary effect) |
|
Joint System |
Steel tongue-and-groove / concealed fastener |
|
Compressive Strength |
(10% deformation) ≥ 40 kPa |
|
Application Temperature |
-40°C to +200°C |
|
Applications |
Warehouses, workshops, industrial plants, logistics centers, commercial roofs, partition walls, fire-rated enclosures |

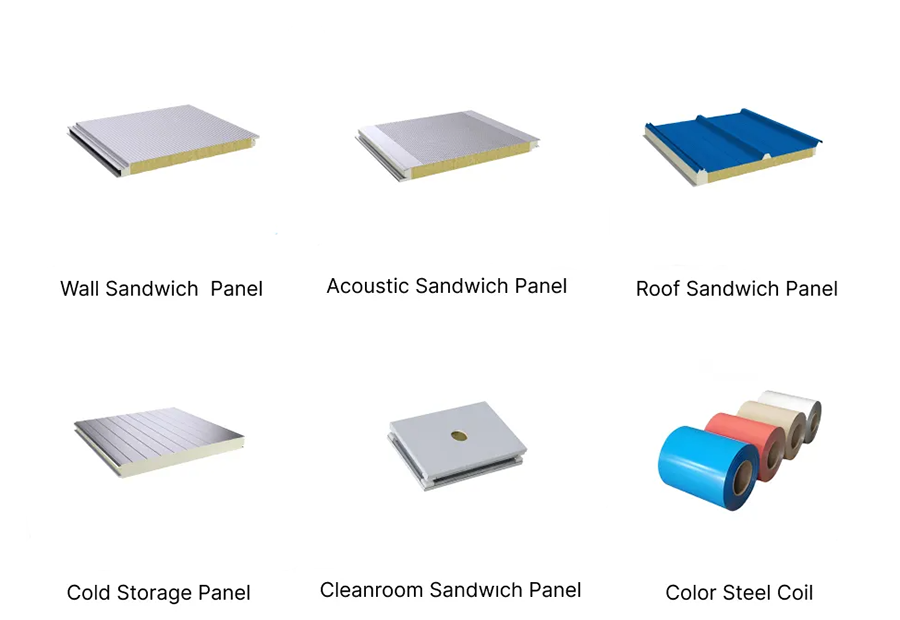

Main Prodcuts

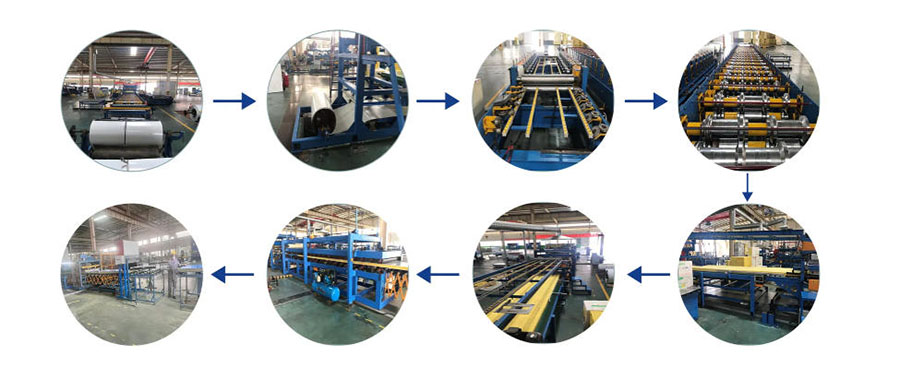

Production process
Service
Comprehensive Construction Solutions for Modern Infrastructure
|
|
|
|
|
|
Precision Material Fabrication |
Custom Structural Design |
Project Management & Installation |
Technical Consultation & Support |
Yumisteel is a comprehensive construction solution provider dedicated to driving innovation in the construction industry. We offer clients intelligent, durable, and cost-effective solutions, covering every stage from initial design to final installation.
We are not just construction material suppliers; we are your strategic engineering partners who solve complex structural challenges. We integrate advanced manufacturing technology, rigorous quality control, and expert project coordination to deliver robust, reliable, and sustainable steel structures.
FAQ
1. Are you a factory?
Yes, we have our own factory with multiple production lines for steel structures, pipe trusses, grid structures, light steel and heavy steel products. And our company also has more than 30 senior design and technical talents, including senior engineers, registered constructor, and engineers.
2.How can you control the quality?
Our strict quality control measures are in place throughout the entire process from material procurement, processing and manufacturing to product transportation. Advanced equipment is used in the processing process, and strict production operation plan management is implemented for the production and manufacturing process to ensure the schedule and quality of projects.
3.How can you guarantee the price you offering is the best one?
We are professional steel structure supplier and can provide the best design for you which will save you money with the good quality.
4.Can you offer a device service?
Yes, we have a excellent design team. We can design full solution drawings as per your requirements.
5. Do you offer installation service?
Yes, we can provide both online or on-site installation guide or send an professional installation team to your place.
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
The rockwool sandwich panel are consist of excellent quality of rockwool insulated material, and two steel layers(PPGL), with fireproof performance with grade A. MOQ:500M²/Color & Size
Upper and lower surface: adopt galvanized color steel plate with thickness of 0.4-0.75mm. Based on the specific requirements of customers, aluminum-zinc-plated color steel plates or galvanized steel plates can also be used.MOQ:500㎡ color&size
Rockwool as the core material is the most environment friendly building material nowadays. MOQ:500㎡/Color&Size
Core material rockwool is suitable for the buildings which need the effect of fire and sound insulation as it plays these performances excellent. MOQ: 500M2/Color&Size
Mineral wool sandwich panels providing best sound and fire protection for buildings; MOQ 5000 meters;
