50mm lightweight insulated EPS foam wall panels
EPS sandwich wall panels can be used indoors as partition wall and ceiling,or implemented vertically or horizontally for the external appearance of your building.MOQ:500M²/Color & Size
item no.:
N/Aproduct orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product Introduction
What is NF EPS Sandwich Panels?
NF stands for Non-Friable, meaning the Expanded Polystyrene core resists crumbling and releases few particles. These sandwich panels have a rigid EPS core bonded between two textured steel sheets. They provide consistent insulation, light weight, and clean handling. Commonly used for cold storage and warehouses, NF EPS panels offer a balance of cost control and reliable thermal performance.
Product Specification
|
Name |
NF EPS sanwich wall panels |
|
Panel Thickness |
50mm, 75mm, 100mm, 120mm, 150mm |
|
Panel Width |
1000mm (standard), 950mm |
|
Panel Length |
Customed |
|
Steel Facings |
Pre painted galvanized steel / color coated steel |
|
Steel Thickness |
0.4mm–0.7mm (both sides) |
|
Aluminum alloy metal thickness |
0.60-1.20mm;(both sides) |
|
Core Material |
NF EPS（Polystyrene） |
|
Available length |
20ft container: <5.90m ; 40hc container: <11.95m |
|
Density |
20-30kg/m3 |
|
Applications |
Warehouses, workshops, industrial plants, logistics centers, commercial roofs, partition walls, fire-rated enclosures |
Product Advantages
☆Stable Thermal Insulation
NF EPS sandwich panels keep cold storage rooms at consistent low temperatures. The dense EPS core minimizes heat transfer, so refrigeration units run less often. This cuts energy bills and preserves perishable goods longer without temperature swings.
☆Clean and Safe Handling
Non-friable EPS means the core resists crumbling and dust release during cutting or installation. Workers face less airborne particle exposure, and the panels maintain full insulation value. This makes warehouse projects cleaner, faster, and safer for everyone on site.
☆Lightweight and Cost-Effective
These EPS sandwich panels weigh much less than concrete or PIR alternatives. You save on foundation costs and need fewer workers for lifting. For large cold storage or warehouse roofs, the lower weight also allows wider spans without heavy structural steel.

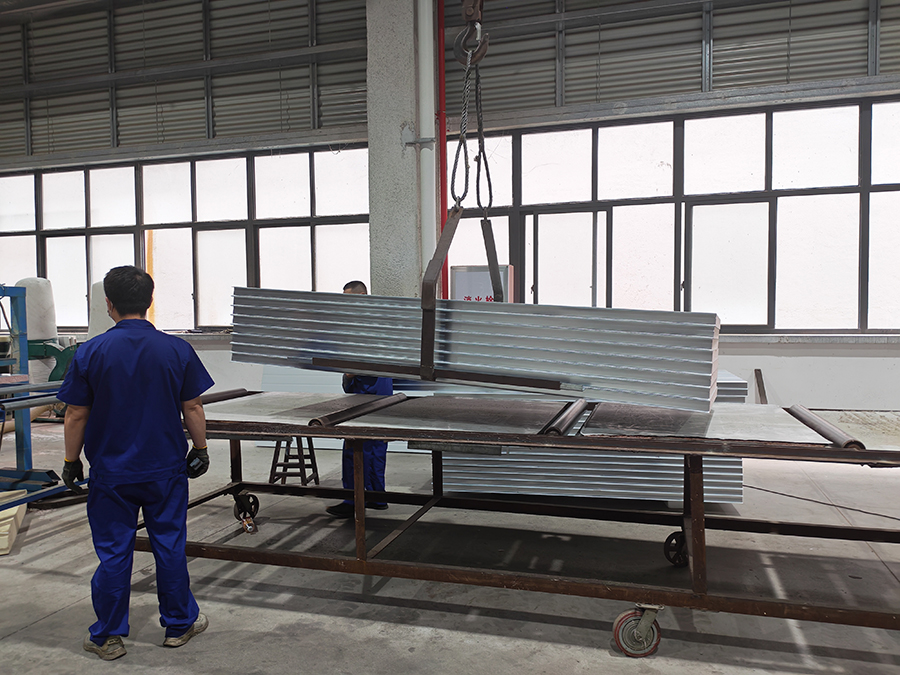

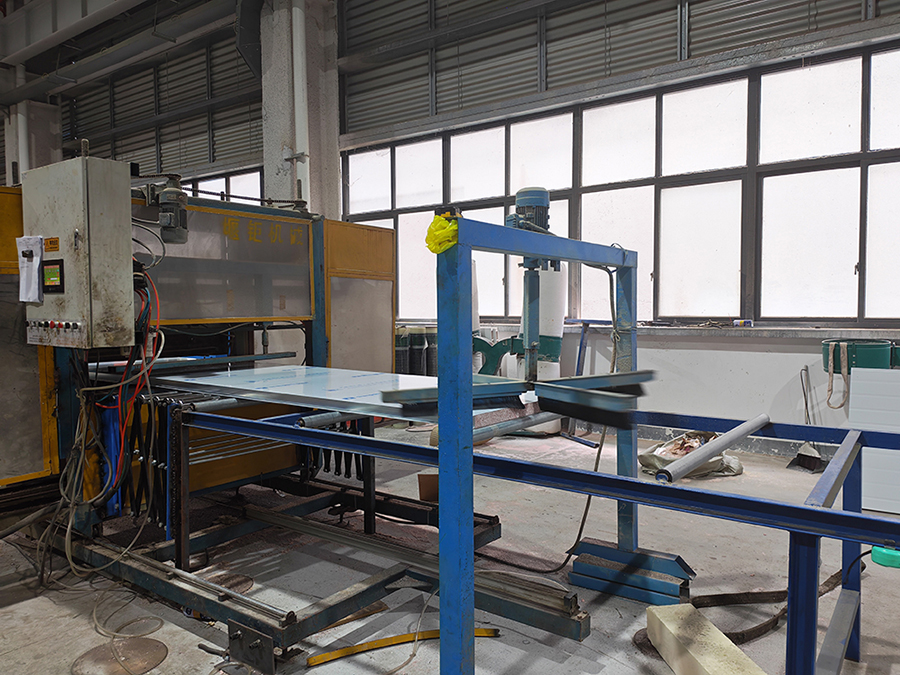

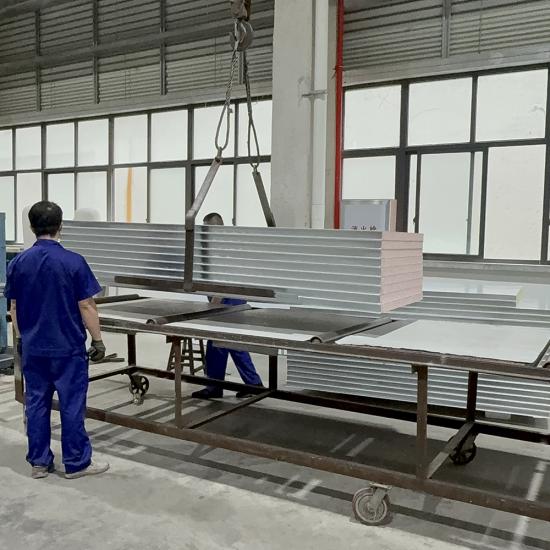

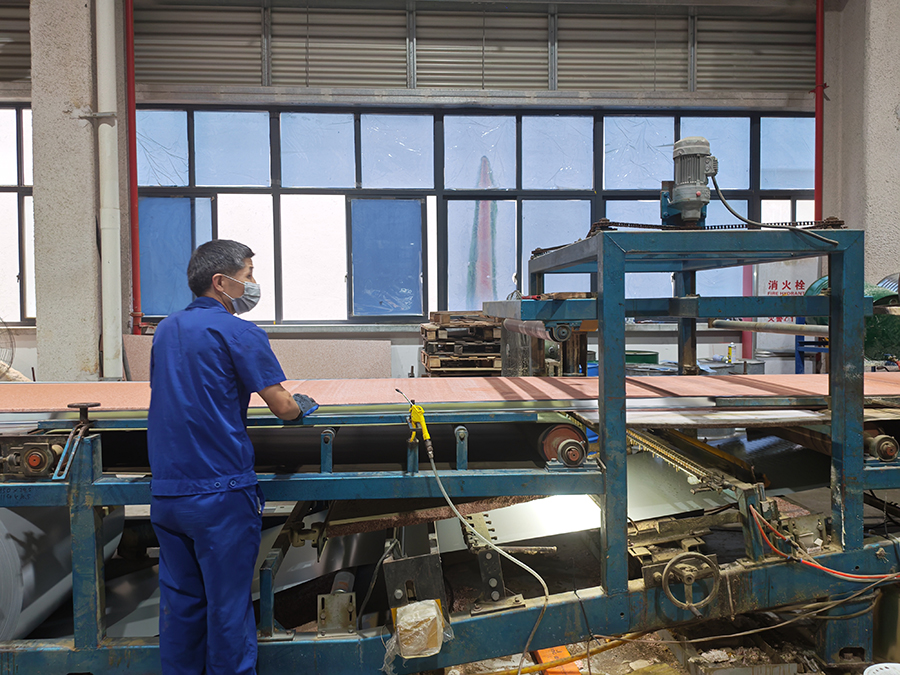

Production process
Why choose us?
Yumisteel-Your Trusted Construction Material Partner
✅ Excellent Quality
High-grade production lines + strict quality management = reliable products every time.
✅ Prompt Delivery
Big production capacity ensures fast delivery and on-time shipment worldwide.
✅ Worldwide Sales
Exported to 80+ countries, trusted by global customers for superior quality.
✅ Diverse Product Range
Container Houses | Corrugated Sheets | Steel Frames | Floor Deck | Sandwich Panels & more.
✅ Outstanding Services
24/7 responsive communication—before, during, and after your purchase.
✅ Professional Team
One-stop solution from design consultation to final installation support.
✅ Competitive Price
Factory-direct pricing designed to fit your budget without sacrificing quality.
EPS sandwich wall panels can be used indoors as partition wall and ceiling,or implemented vertically or horizontally for the external appearance of your building.MOQ:500M²/Color & Size
25mm is the minimum thickness that we can make for now.MOQ:1000M²/ Color & Size.
A sandwich panel is one structure made of three layers of material: low density core inserted material in between two relatively thin steel skin layers. MOQ：500m²color&size
EPS sandwich panel, regular colors are white, blue, white gray, others can as per RAL color. MOQ: 500㎡ color&size
The EPS sandwich panel is beautiful in appearance ,bright in color and good in overall effect .it integrates load-bearing ,heat-insulation and waterproof ,and does not require secondary decoration.MOQ:500m²/color
EPS sandwich panels for insulate construction; MOQ 1000 meters;
