Product introduction
YX25-248-992 Corrugated Sheet

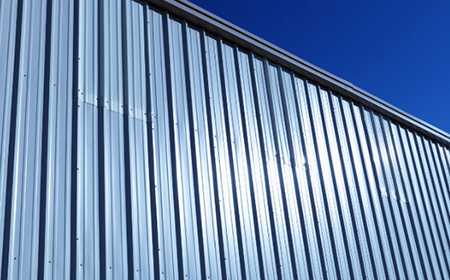

The unique wave crest design creates subtle vertical shadow gradients under natural light, giving buildings a sharply defined yet visually dynamic façade with elegant contour aesthetics.
Product advantages
☆Semi-Concealed Fastening
Screws are partially hidden in wave troughs for a clean appearance.
☆Aesthetic Shadow Effects
Unique wave crests create vertical shadow gradients under natural light, enhancing architectural contour aesthetics with sharp yet dynamic lines.
☆Coordinated Installation
Includes color-matched nylon-head self-drilling screws for seamless integration with wall surfaces.

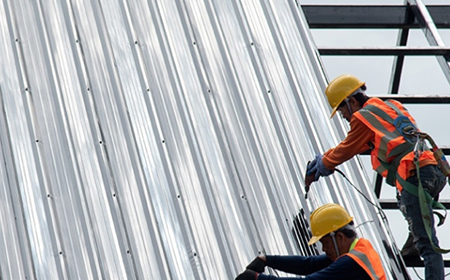

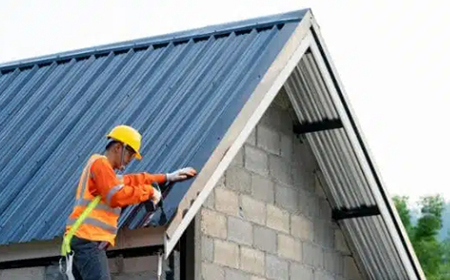

☆Effortless Installation
Quick and simple construction with easy access for pipelines and cable routing.
☆High Performance
Lightweight yet strong, with excellent earthquake and fire resistance.
☆Optimized Design
Wide effective coverage (high utilization rate) with flat underside andsnug-fitting webs.
☆Customizable Aesthetics
Available in any color to match design concepts, offering versatile decorative potential.

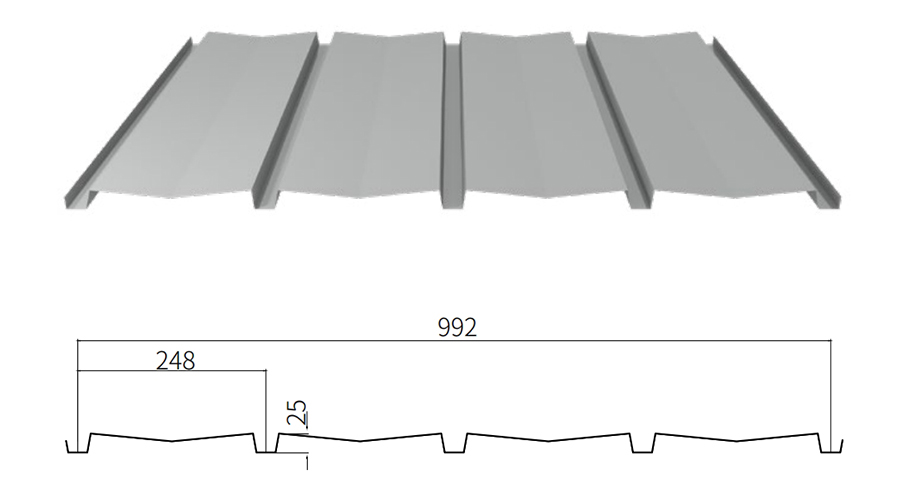

Product specifications
|
Model NO: |
YX25-248-992 |
|
Rib height : |
25mm |
|
Rib distance : |
248mm |
|
Modular width : |
992mm |
|
Feeding width : |
1200mm |
|
Available thickness : |
0.4-0.8 mm |
|
Available length : |
20FT container:≤5.95m 40FT container: ≤ 11.95m |
|
Available material : |
PPGI/ PPGL/ Aluminum sheets/AI-Mg-Mn alloy metal sheets |
|
Surface treatment : |
Original pre-painted color or stone glazed looking |
|
Coating type: |
PE, PVDF, HDP, SMP,etc. |

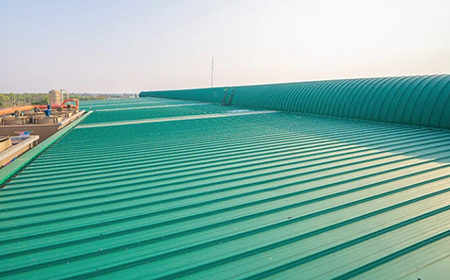

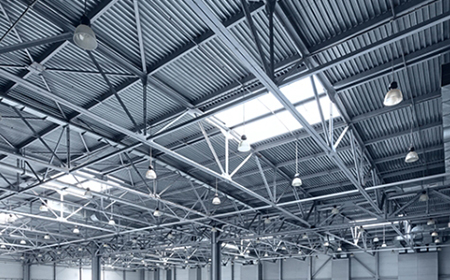

Product applications
These galvanized steel wave roof sheets provide durable, weather-resistant protection. Their corrugated design enhances strength and drainage, while the zinc coating ensures long-term rust resistance. Easy to install and low-maintenance, they offer a cost-effective solution for modern construction projects.These steel sheet are ideal for industrial warehouses, agricultural buildings, and residential roofing.
|
|
|
|
|
|
|
|
|
Packing & Delivery
☆ Packing
·Seaworthy packing standards:
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumin Xincailiaokeji Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.

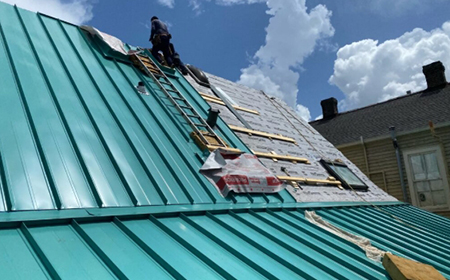

This metal roofing sheets is classic and vintage type,whether the roofing is historic, contemporary, or ancient,this sheet metal and roofing can offer distinction to highlight buildings and provide memorable charm. MOQ:500m²/color & size
This color corrugated steel sheet (YX41-210-420) is designed as a kind of standing seam roofing cladding, it is widely used in industrial, commercial and large-scale buildings and so on.MOQ:500m²/color & size
This metal roofing is recommended for large span buildings.The roof panel need to be locked by machine or hand,after clip locked,the standing seam roof system could be completely impervious and waterproof. MOQ:500M² / Color&Size
This aluminum roofing sheet is a highly cost-effective roofing material, and with performance of corrosion resistant, waterproof, light weight, high strength and easy install, etc. MOQ:500M² / Color&Size
This kind of roof color steel plate is a concealed joint panel, it won’t be seen the nails on the steel sheet surface.MOQ:500m²/color & size
Standing seam roof panel is ideal for industrial, commercial and architectural applications. MOQ:500 M²/ Color & Size
