/Compressive high strength metal decking sheet for steel structure

Compressive high strength metal decking sheet for steel structure

This w-shaped profiled steel plate is widely used in many construction industries. MOQ: 500/㎡
  • item no.:

    YX51-250-750
  • lead time:

    7-15 days
  • product orgin:

    China
  • shipping port:

    Tianjin/Qingdao/Shanghai/Xiamen, China
  • payment:

    T/T; LC at sight
  • color:

    Fixed color
available colours
  • product details

About open floor steel deck:

Open floor steel deck, also called open profile steel plate, is an important supporting product for steel structure building, is made of galvanized sheet by rolling cold bending molding, mainly used as permanent template, can also be selected for other purposes. There are many types of open floor slabs, and the frequency of use is very high in actual engineering construction. The core advantage of the open floor plate is cheap, cost-effective.


The difference between open floor bearing plate and closed floor bearing plate:

 The amount of steel used for open floor bearing plate and closed floor bearing plate is different. For example, the amount of steel used for common open floor bearing plate YX75-200-600 and closed floor bearing plate YX B 65-185-555 is about 16.5g/m³ for open type 600, and about 9.8g/m³ for closed type 555.
 Open floor bearing plate and closed floor bearing plate processing fees are different, Opening LouCheng board and held their LouCheng plate in the aspects of the advantages and disadvantages, opening LouCheng plate processing, because of its type plate shape is open when processing so directly to the board stacked together, speed up the production speed, directly with the finished products produced by the pile of put, convenient packaging do not take a place, on the contrary silent bearing version is due to its special silent type plate production cannot be finished product stack Up, the processing speed is significantly lower than the open floor bearing plate, the closed load-bearing version of the packaging difficulty is greater than the open floor bearing plate, and the most critical point, because the closed floor bearing plate can not be a pile up, so it takes up more space than the open floor bearing plate. So just look at the advantages and disadvantages of the open floor bearing plate and the closed floor bearing plate can be very clear why the open floor bearing plate and the closed floor bearing plate processing fees are different.
Open floor bearing plate and closed floor bearing plate freight is different due to open floor bearing plate and closed floor bearing plate space size is not the same, the same number of meters, open floor bearing plate to find the car will be smaller than the closed load-bearing version of the car, the freight will naturally be much lower.


Steel deck details:

The main material of the steel plate is galvanized steel. If you have material requirements, please refer to the following details:

1. Zinc content on both sides;
2. Material thickness;
3. Wave height and wave distance;
4. Effective width and blanking width;
5. Yield strength.


Steel deck type:

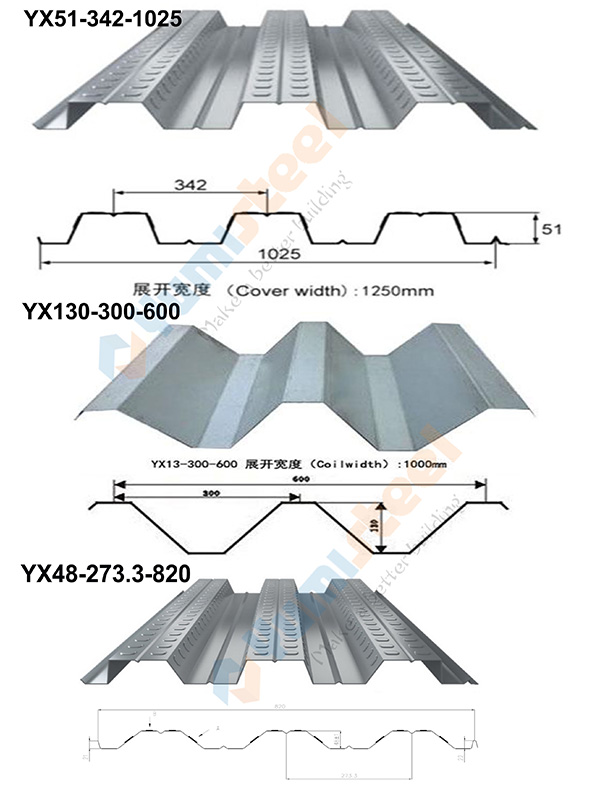

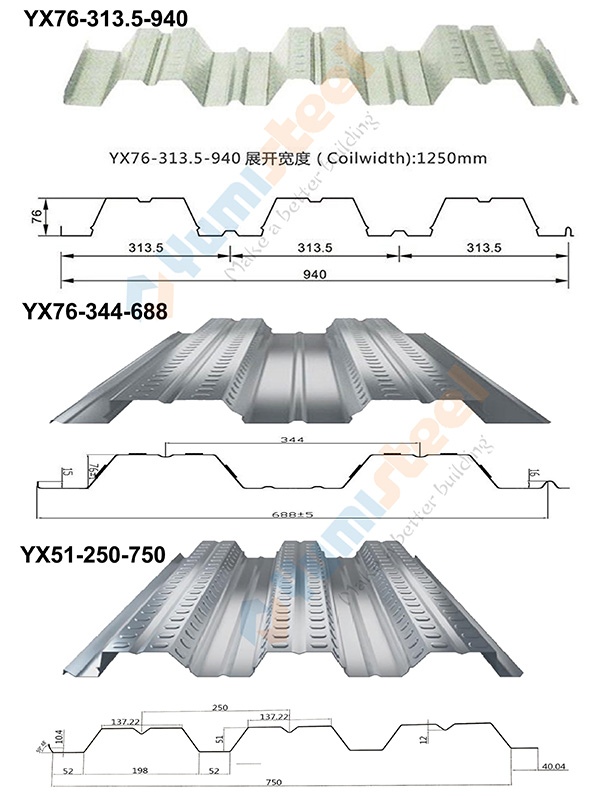

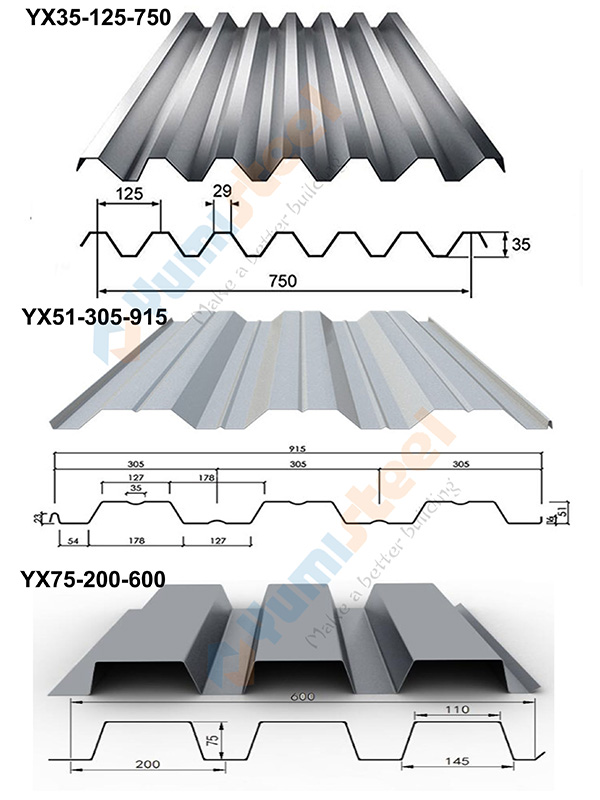

steel deck model


steel deck model



steel deck model



Service & Support:

We are cooperating with Bluescope, Bao steel, Shougang group, Guanzhou steel,and Yiehphui steel. All these steel brand are top brand in China,which can make sure you can have good quality sandwich panels. Normally steel standards are China GB Q235, Q345, Q355. Other special steel standards,please indicated,when making inquiry.



We will provide you:

- professional designer to put into paper your requests and ideas

- timely and continuous follow up through the sales-agent

- short time of delivery

- professional technician to assemble the structure on site

- timely and continuous contact and assistance after sales through our technician
