item no.:
YX60-205-820lead time:
7-30 daysproduct orgin:
Chinashipping port:
Xiamen/ Qingdao/ Tianjin，Chinapayment:
T/T; LC at sightcolor:
Natural galvanized/ galvalume color
Highlight advantages:
☆ This steel decking is a shallow trapezoidal composite floor deck made from G300/350/440 galvanised steel;
☆ It is with high cost efficient, since it is suitable for concrete depths down to 130mm, while it can still maintain exceptional span capabilities;
☆ It is ideal for multi rise buildings, mezzanine floors and most of the steel framed buildings;
☆ Because of the ribbed design of the profile, no matter what height of the slab depth, the less concrete volume is required. More Environmentally Sustainable.
Steel deck sheet specifications:
|
Item |
Specifications |
|
Depth of profile |
60 mm, ±3mm |
|
Pitch |
205 mm, ±3mm |
|
Effective width |
820 mm, ±5mm |
|
Coil width |
1220 mm |
|
Length |
According to clients' request, but according to container loading length limitation, Max 5.9m/PC for 20FT container and 11.95m/PC for 40FT container. Length tolerance: ±5mm |
|
Thickness range |
0.75-1.20 mm, ±0.02mm |
|
Material grade |
GB standards: Q235,Q345,SGC340,SGC440 |
|
Galvanized content |
Z120 ~ 350 g/m² |
Metal deck applications:
|

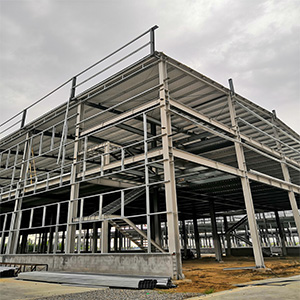

Steel structure buildings |

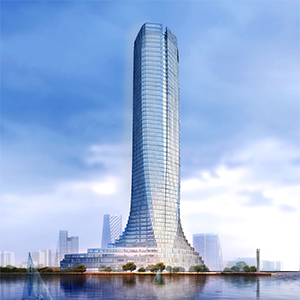

Multi rise buildings |

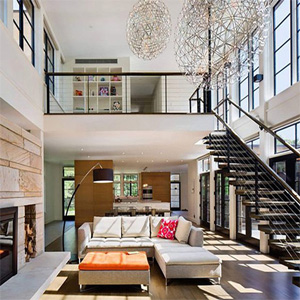

Mezzanine floors in house |
Sectional properties of deck panels:
|
Thickness(mm) |
Weight(kg/m²) |
Ig(cm4/ml) |
W1(cm3/ml) |
W2(cm3/ml) |
|
0.75 |
8.76 |
55.15 |
17.02 |
20.73 |
|
1.00 |
11.68 |
74.56 |
23.02 |
28.03 |
|
1.20 |
14.02 |
90.10 |
27.81 |
33.87 |
Packing & Storage & Delivery:

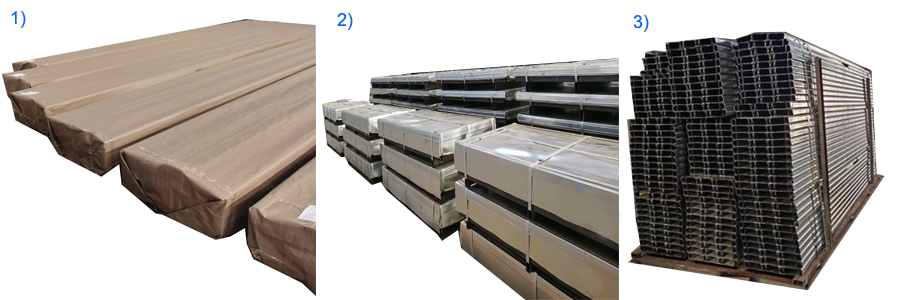

☆ Packing:
·Seaworthy packing standards:
1)Pack with moisture-proof kraft paper + waterproof film;
2)Pack with moisture-proof kraft paper + waterproof film+steel boxes;
3)Pack with and fasten with steel frames.
4)If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Storage:
·Store the deck panels in covered area;
·There must be sleepers, or other materials suitable as a bottom for the panels stack;
·Max 2 meters high you can stack the steel deck panels;
·Please clear the dust from the steel decks to avoid getting rusty.
☆ Delivery:
Delivery time for regular thickness and steel material grade: 15-20 days ;
Delivery time for special galvanized, thickness and steel material grade: 25-30 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Special note:
- If you have appointed requirement of embossing on steel deck panels, please inform us in advance, so we can see if we can make same for you;
- If you have other type of metal floor decks needed, and the order quantities can reach 10,000 m2, we can buy new equipment to make it exactly for you.
- For special zinc coating requirement, such as 350g/m2 or 450g/m2, we can make them,too.
The metal deck and concrete slab are combined as composite deck,to form an integral unit that plays upon the concretes compressive strength and the steel decks high tensile strength. MOQ:500M²/Size
This floor decking sheet is a simple shape but with high strength, it is usually use in the floor of high huilding. MOQ:500M²/Size
Steel floor decking sheet is a key product to matching the conscturction of steel structure. MOQ:500M²/Size
YX76-344-688 type floor decking sheet, wave height is 76mm, wave distance is 344mm, model width is 688mm. MOQ:500M²/Size
Open floor decks, also called profiled steel plates, steel decks, and steel floor decks, are mainly used as permanent formwork. MOQ: 500㎡/Size
There are many model types of open floor decks, and it is use frequently in actual engineering construction. The core advantage of the open floor deck is that it is cheap and cost-effective. MOQ: 500㎡/Size
