item no.:
YX65-300/330/400/430lead time:
7-15 daysproduct orgin:
Chinashipping port:
Xiamen/Qingdao/Tianjin, Chinapayment:
T/T; L/C at sightcolor:
Customized
Standing Seam Metal Roofing:
Standing seam metal roofing has a flat area in the middle and raised vertical seams at both ends.
It's a concealed fastener system, meaning that the fasteners are not visible or exposed to the weather.
It's water-tight and long lasting, but it's also an expensive panel system.
Specifications:

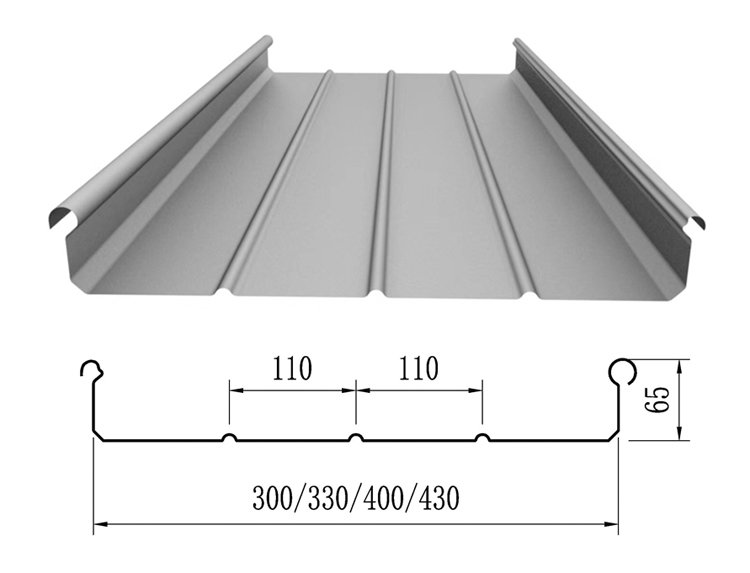

Profile Type: Standing Seam Metal Roofing
Rib Height: 65mm
Overall Width: 300mm, 330mm, 400mm, 430mm
Coverage Area: 300mm, 330mm, 400mm, 430mm
Available Gauges: Aluminum Substrate:0.7-1.2mm(3003 or 3004)
Finish: Per-painted color(PE, PVDF, HDP, SMP)
Fasteners: Concealed
Panel Length: 20FT Shipping container ≤5.9m
40FT Shipping container ≤11.9m
Installation: Installation over a solid substrate with an underlayment between the panel and the substrate.
Locking Syste
Roof System
The panels can use one of two construction systems: reinforced concrete or structural steel.
Application
The panel can be used on a variety of roofs, curved roofs, sloped roofs.
This metal roofing sheets is classic and vintage type,whether the roofing is historic, contemporary, or ancient,this sheet metal and roofing can offer distinction to highlight buildings and provide memorable charm. MOQ:500m²/color & size
This color corrugated steel sheet (YX41-210-420) is designed as a kind of standing seam roofing cladding, it is widely used in industrial, commercial and large-scale buildings and so on.MOQ:500m²/color & size
This metal roofing is recommended for large span buildings.The roof panel need to be locked by machine or hand,after clip locked,the standing seam roof system could be completely impervious and waterproof. MOQ:500M² / Color&Size
This aluminum roofing sheet is a highly cost-effective roofing material, and with performance of corrosion resistant, waterproof, light weight, high strength and easy install, etc. MOQ:500M² / Color&Size
This kind of roof color steel plate is a concealed joint panel, it won’t be seen the nails on the steel sheet surface.MOQ:500m²/color & size
Standing seam roof panel is ideal for industrial, commercial and architectural applications. MOQ:500 M²/ Color & Size
