50mm Insulation light weight EPS panels construction essential

EPS roof panels for easy and affordable construction; MOQ 1000 meters;

lead time:

10-15 days

product orgin:

China

shipping port:

Qingdao

payment:

T/T

price:

$15/m

product categories

new products

product details

EPS sandwich panels highlights:

Various colors:
Many colors choices for you to choose for your buildings,if you have customized color required,you can discuss with us.
Long life:
If the coating types are selected properly and maintain in correct way,the sandwich panels could be long life.
Waterproof:
This is Z locked hidden screws type,which make roof panels act more better in waterproof performance.
Cheap price:

EPS sandwich panels price is the best among all the kinds of sandwich panels.

Easy installation:

It's easy installation to save the construction period.

Basic information:

Panel effective width	950/1150 mm
Steel sheet thickness	0.35-0.75 mm
Panel thickness	25/50/75/100/150/200/250 mm
EPS density	8-20 KG/M³
Color	As per RAL or customized
Coating	PE, SMP, HDP, PVDF
Steel type	PPGL, PPGI steel / Aluminum sheet/ Stainless steel sheet
Fire resistant level	A2
Length Limitation 40FT container	Max 5.95 m
Length Limitation 20FT container	Max 11.95 m
Joint way	Hidden screws type Z lock

Roof panel type:
EPS roof panel supplier
EPS sandwich panel supplier

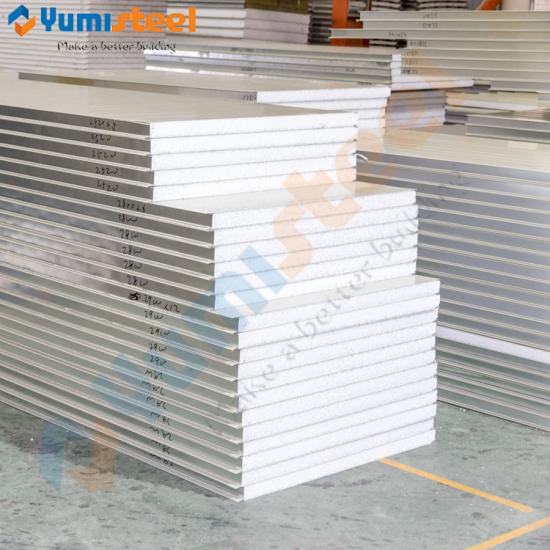

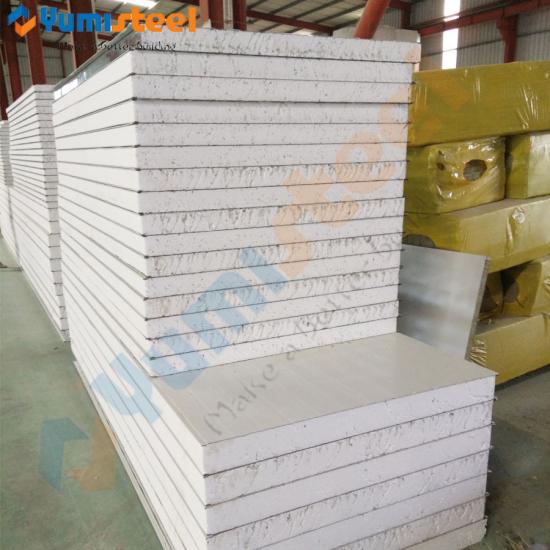

Panel packages and loading reference:
good quality sandwich panel exporter
The roof sandwich panels can be sealed by sealing tapes,or if you don't need it,we can cancel,too.And the container loading is by cranes.Then we will also put the thick EPS foam to protect the panels from crashing each other.

Special notes:
Protective films:
All metal panels that Yumi steel made are covered PVC protective film.This PVC film must be peeled off within 3 months,after production.Otherwise there will be chemical reaction,and make the PVC film so difficult to be removed.At the same time,if you want to store panels for long time,please protected the panels from sun exposure,high temperatures and other bad conditions.
Dark colors warning:
We do not recommend to use dark colors for sandwich panels.Because of sunlight absorption and overheating of steel sheets on panels.Steel temperature expansion and possible damages will be caused by overheating.Also temperature changes may result in deterioration of aesthetic or damage of panels.
Color difference:
We can not make sure for same color,if you don't make order at one time.Please be noted,thank you.
Size tolerance:
There will be material tolerance for width,length,steel sheet thickness of sandwich panels.If you want them to be no less than which size,please indicated,when make orders.Then we will ask steel mill and our production team to be noticed about the requirement.
