50mm exterior thermal rockwool wall sandwich panel
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
item no.:
1000mmlead time:
7-15daysproduct orgin:
Chinashipping port:
Xiamen/Qingdao/Tianjin,Chinapayment:
T/T；L/C at sightcolor:
Customized
Features :
Sandwich panels with rock wool core material can play their part in improving insulation in the most important areas.
They’re suitable for insulating ceilings, interior and exterior walls (including partition walls and facades) and roofs-as well as for firewall applications.
Increased fire protection–stone wool core insulation integrates non-combustible properties to sandwich panels, delivering the highest fire classification A1.
Acoustic capabilities–blocking unwanted noise from attached or neighbouring buildings
Thermal performance–temperatures are better regulated in buildings, thanks to the smart fibre structure of stone wool insulation.
Polyurethane sealing rockwool composite board model type:
Product Specifications instruction:
|
Product component |
PU sealing rockwool sandwich panel |
|
Effective width |
1000mm |
|
Core thickness |
30,35,40,50,60,75,100,120,150,200mm |
|
Surface sheets |
PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel/ PVC sheet |
|
Steel thickness: |
0.4-0.7mm |
|
Aluminum sheets/ Al-Mg-Mn alloy metal sheets |
0.7-1.2mm |
|
Stainless steel |
0.4-0.6mm |
|
Core density |
PU:40kg/m³ Rockwool: 120kg/m³ |
|
Regular color |
White gray, sea blue, sliver grey, dark gray, iron grey, (can be customized) |
|
Coating type |
PE/PVDF/HDP/SMP, etc. |
|
Available length |
20FT container: ≤ 5.95m |
Material warranty:
Our steel sheets cooperating partners are Bao-steel, Shougang steel, Guanzhou steel, Yieh Phui steel,etc.

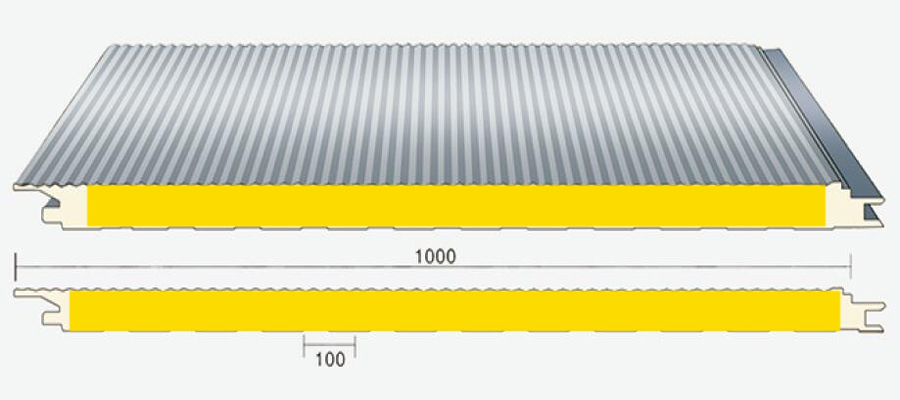

Product shapes:
We have different shapes for rockwool sandwich panels for customers’ choices.
For example:
 |
 |
 |
 |
Application:
Rockwool sandwich panel are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure.
Industrial buildings
Store houses and logistic centers
Commercial buildings and offices
Food industry facilities ;Agricultural objects ;Sport halls
 |
 |
 |
 |
Packing & Delivery:
☆Packing：
Seaworthy packing standards:
PVC on both sides to protect the roof panel ends;
Packed with paper to protect the panel ends;
Put EPS foam on the each space to keep the panel from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved and protect your goods well.
☆Delivery：
Delivery time for regular colors,coating types and thickness:7-10 days;
Delivery time for specail colors,coating types and thickness:15-25 days;
Delivery terms:FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
The rockwool sandwich panel are consist of excellent quality of rockwool insulated material, and two steel layers(PPGL), with fireproof performance with grade A. MOQ:500M²/Color & Size
Upper and lower surface: adopt galvanized color steel plate with thickness of 0.4-0.75mm. Based on the specific requirements of customers, aluminum-zinc-plated color steel plates or galvanized steel plates can also be used.MOQ:500㎡ color&size
Rockwool as the core material is the most environment friendly building material nowadays. MOQ:500㎡/Color&Size
Core material rockwool is suitable for the buildings which need the effect of fire and sound insulation as it plays these performances excellent. MOQ: 500M2/Color&Size
Mineral wool sandwich panels providing best sound and fire protection for buildings; MOQ 5000 meters;
