Product introduction

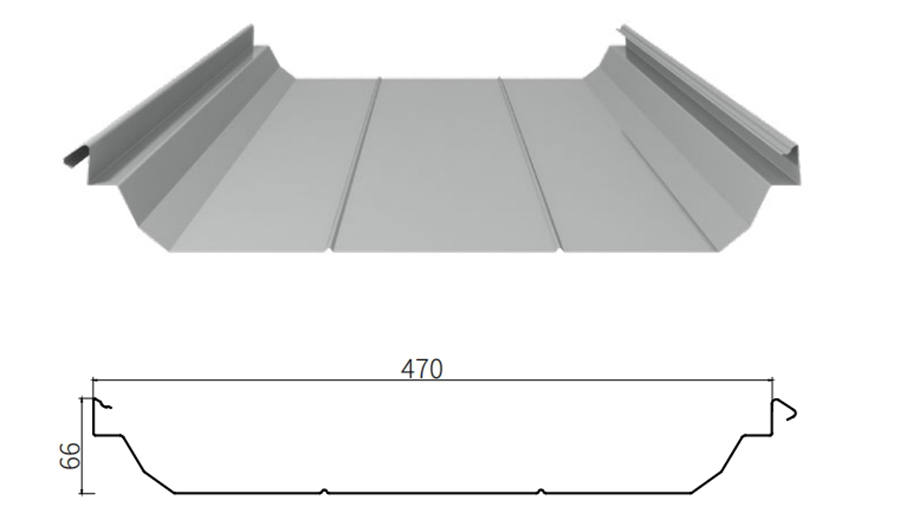

YX66-470 (U-470) Corrugated Sheet
The U-470 system is an upgraded panel profile developed by enhancing the American-style system to better suit Chinese construction needs. By optimizing key supporting components and incorporating multiple design advantages, it delivers superior performance and reliability.
Product advantages
☆ Quick and Easy Installation

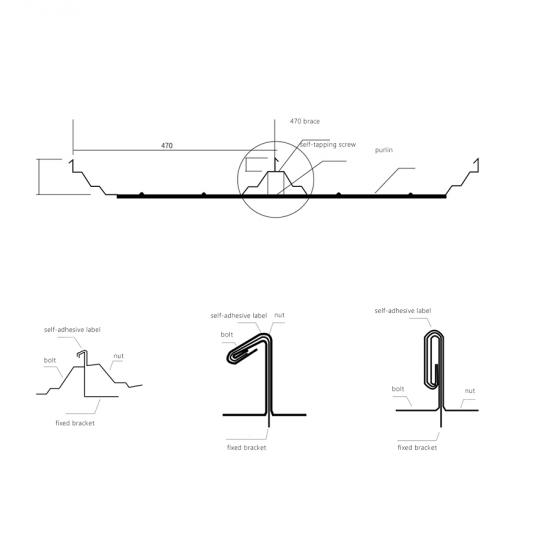

Features a dedicated sliding base that ensures 360-degree interlocking between panels and fixtures for secure fastening.
☆ Aesthetic Design
Suitable for most architectural roofing projects, combining functionality with visual appeal.
☆ High Strength & Durability
Specially treated panel profile enhances wind and snow load resistance with an effective utilization rate of 78.3%.
☆ Watertight Protection
Elevated free edges provide complete rainwater isolation, preventing leaks.
Product specifications
|
Model NO: |
YX66-470 |
|
Rib height : |
66mm |
|
Rib distance : |
470mm |
|
Modular width : |
470mm |
|
Feeding width : |
600mm |
|
Available thickness : |
0.4-0.8 mm |
|
Available length : |
20FT container:≤5.95m 40FT container: ≤ 11.95m |
|
Available material : |
PPGI/ PPGL/ Aluminum sheets/AI-Mg-Mn alloy metal sheets |
|
Surface treatment : |
Original pre-painted color or stone glazed looking |
|
Coating type: |
PE, PVDF, HDP, SMP,etc. |

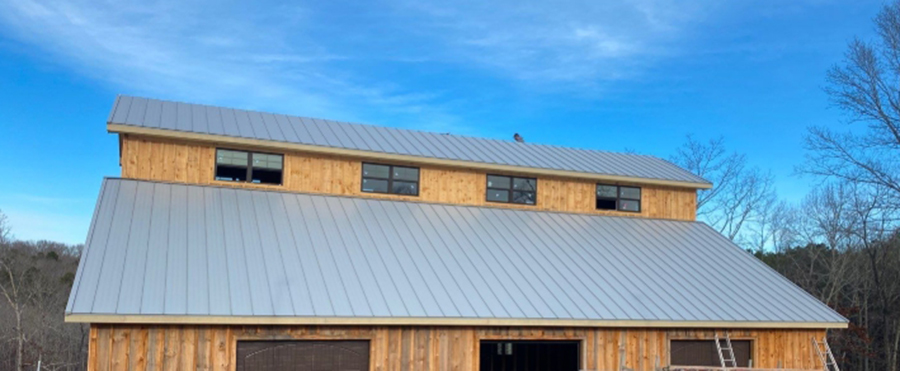

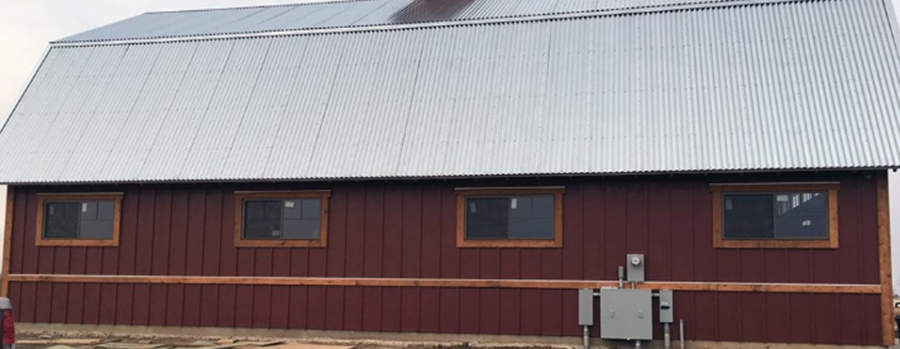

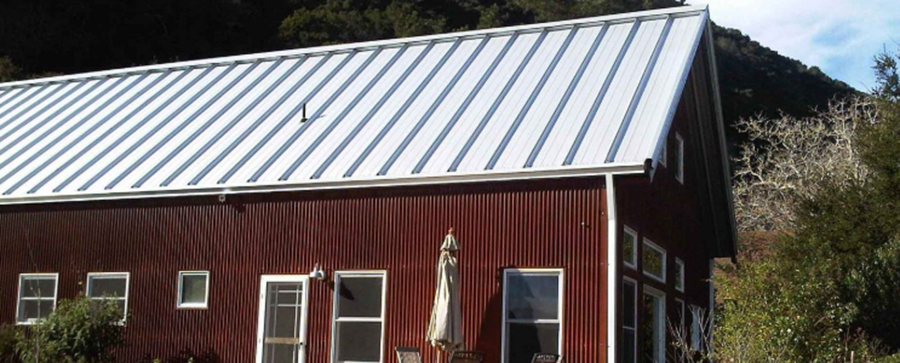

Product applications
These steel roof tiles offer superior weather resistance, durability, and cost efficiency. Their lightweight yet sturdy design ensures easy installation, while the zinc coating and color finish provide long-term corrosion protection and aesthetic appeal. Perfect for harsh climates.These steel roof sheets are ideal for industrial, agricultural, and residential roofing.
Packing & Delivery
☆ Packing
·Seaworthy packing standards:
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
