Ribs PU PIR sandwich panels for Internal and External Wall Roof

PU PIR sandwich panels are suitable for both internal and external walls as well as roofs, offering excellent insulation and structural integrity.

item no.:

YUMI-PU-WALL-01

product orgin:

China

shipping port:

Xiamen/Qingdao

payment:

T/T;L/C at sight

color:

Customized

product categories

new products

product details

Product introduction

PIR (Polyisocyanurate) sandwich panels

PU(Polyurethane)PIR (Polyisocyanurate) sandwich panels are highly efficient building materials that have gained significant popularity in modern construction. They consist of a rigid PIR foam core, which is renowned for its outstanding thermal insulation properties. This core is sandwiched between two outer layers, typically made of galvanized steel, aluminum, or other robust materials.

PU PIR core not only provides exceptional heat resistance, reducing energy consumption for heating and cooling in buildings, but also offers remarkable fire resistance, adding an extra layer of safety. The outer skins protect the core and enhance the panel's durability, withstanding various weather conditions and mechanical stress.

PIR panels are lightweight yet structurally strong, facilitating easy installation. They are widely used in a range of applications, from industrial buildings and cold storage facilities to residential and commercial constructions. Their versatility, combined with energy - saving and safety features, makes PIR sandwich panels a top choice for sustainable and cost - effective building solutions.

Product advantages

☆Excellent thermal insulation performance

☆High strength, good structural stability

☆Good fire resistance, high safety

☆Light weight, easy to install and transport

☆Environmentally friendly and energy-saving, long service life

Product specifications

Specification	Details
Core Thickness	40 - 200 mm (PU/PIR )
Panel Width	Standard 1000mm,1120mm
Panel Length	20FT container: ≤ 5.95m 40FT container: ≤ 11.95m
Density of Core	40 kg/m³
Thermal Conductivity	≤ 0.022 W/(m·K)
Fire Rating	Class A2 - s1 (excellent fire resistance)
Surface sheets	PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel
Aluminumsheets/Al-Mg-Mnalloymetal sheet	0.70 - 1.20 mm
Steel thickness	0.40 - 0.70 mm
Stainless steel	0.40 - 0.60 mm

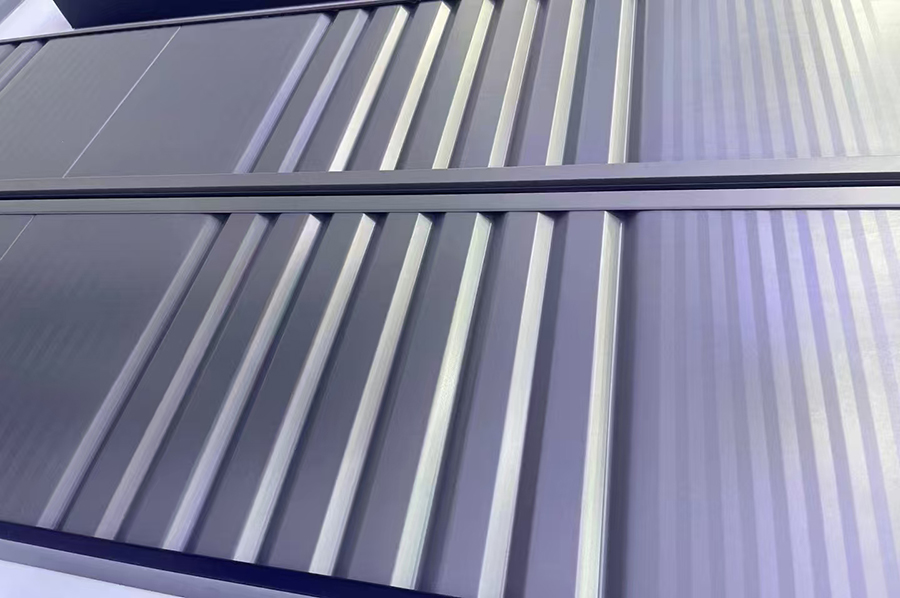

Product ribs

Product ribs

There are 4 different kinds of panel surface treatment (ribs),we named them as micro ribs, wide ribs, pure flat, and embossed. You can choose which type is suitable for your project.

Product applications

☆ Industrial buildings

such as factories and warehouses

Industrial buildings

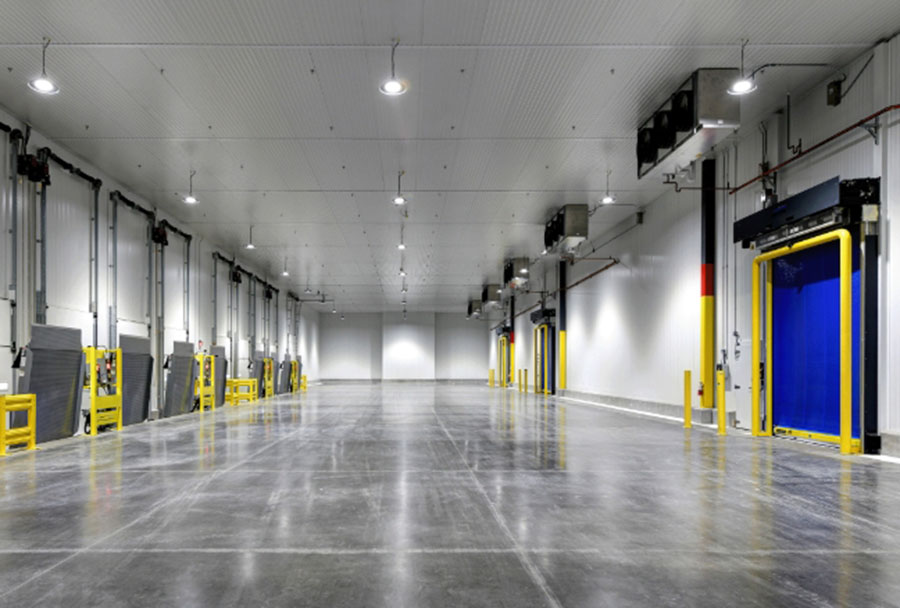

☆Cold storage facilities for temperature control

Cold storage facilities for temperature control

☆Agricultural structures

such as barns.

Agricultural structures

☆ Commercial buildings

such as shopping malls.

Commercial buildings

☆Residential houses for energy - efficient roofing

esidential houses for energy - efficient roofing

Packing & Delivery

☆ Packing

Seaworthy packing standards:

PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

Service&Support

☆Service
Xiamen Yumi Imp. &Exp. Co., Ltd. Is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
