Prefabricated modern luxury flat pack container house
20ft prefabricated container house is built with cold-rolled steel plates and use sandwich panels for wall insulation. MOQ:1 set
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product introduction

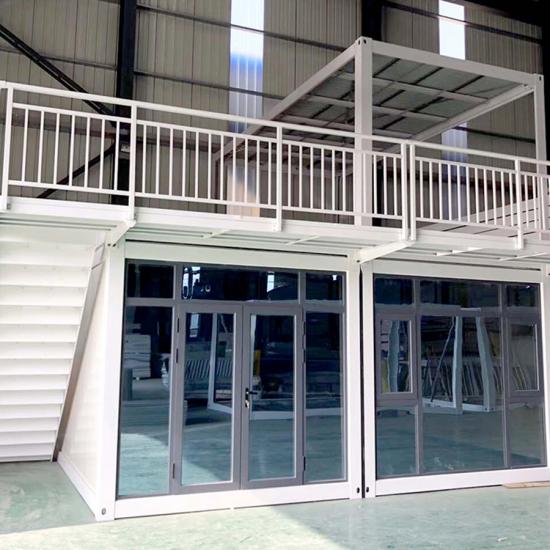

What is glass curtain wall container house?
Glass curtain wall container house is a type of prefabricated dwelling that combines the structural benefits of a shipping container with the aesthetic and functional properties of a glass curtain wall system. The curtain wall itself is a non-loadbearing external enclosure, often made of glass and aluminum, designed to protect the interior from the elements and provide insulation and a modern appearance.
Product specification
|
Material list |
||||||
|
S/N |
Items |
Material |
Description |
Unit |
QTY |
Remark |
|
1 |
Floor beams |
Main Frame |
Composed of 2.50mm thick galvanized steel sections with 7mm thick corner lifting blocks |
PC |
4.00 |
|
|
2 |
Floor Joist |
Cold-formed galvanized steel profile,1.20mm galvanized steel tubes |
PC |
10.00 |
|
|
|
3 |
Floor Substrate |
Fiber Cement Board 18mm,1177X2820mm X 5 PCs |
㎡ |
14.40 |
|
|
|
4 |
Floor Finish |
1.60mm Full PVC Roll |
㎡ |
14.40 |
|
|
|
5 |
Roof |
Main Frame |
Composed of 2.50mm thick galvanized steel sections with 7mm thick corner lifting blocks |
PC |
4.00 |
|
|
6 |
Roof Joist |
Cold-formed galvanized steel profile,1.20mm galvanized steel tubes |
PC |
9.00 |
|
|
|
7 |
Roof panels |
0.60mm thick roof steel panels,360° biting waterproof treatment |
㎡ |
14.40 |
|
|
|
8 |
Roof insulation |
75mm thick glass wool insulation with PE waterproof film, 14 kg/m³ density |
㎡ |
14.40 |
|
|
|
9 |
Ceiling panels |
0.30mm thick roof steel panels |
㎡ |
12.60 |
|
|
|
10 |
Steel post |
Main Frame |
Composed of 2.50mm thick galvanized steel sections |
PC |
4.00 |
|
|
11 |
Connectors |
2.0mm galvanized steel |
PC |
8.00 |
|
|
|
12 |
L shaped steel beam Stiffener |
PC |
8.00 |
|
||
|
13 |
Wall(External+Partition) |
Wall panels |
50mm thick wall rockwool insulated panels,Color:Off white,RAL9002 |
㎡ |
50.54 |
|
|
14 |
Corner trims |
0.50mm steel flashing |
PC |
4.00 |
|
|
|
15 |
Door(External) |
Single door |
Door frame:1.0mm thick galvanized steel profile, Door leaf: Aluzinc surface steel; Accessories:3 hinges,handle with standard lock,rubber gasket & door stoppers;Color:Off white,RAL9002,Door size:925x2035mm |
Set |
1.00 |
|
|
16 |
Window |
Glass type:single glazed glass,6 mm thickness; |
Set |
2.00 |
|
|
|
17 |
Downspout |
Size:50mm, to be installed in the steel posts |
PC |
4.00 |
|
|
|
18 |
Other accessories |
Screws |
Self drilled screws |
Set |
1.00 |
|
|
19 |
Sealant |
|
Tube |
2.00 |
|
|
|
20 |
Electricity |
3 sets of Five-hole sockets; |
Set |
1.00 |
|
|
Product advantages
☆ Modern
The use of extensive glass panels creates a contemporary look and maximizes natural light.
☆Structural Stability
While the curtain wall is non-loadbearing, the container house is typically built on a light steel structure or uses sandwich panels for a stable and durable frame, capable of resisting wind and earthquakes.
☆Prefabrication & Portability
Like other container homes, these structures are built off-site and can be transported and assembled relatively quickly.
☆Flexibility & Versatility
They are suitable for various applications, including temporary housing, vacation homes, offices, and even commercial spaces, offering a flexible living or working environment.
☆Durability and Longevity
Constructed with robust materials, these houses are designed for long service lives, often exceeding 25 years.
☆ Environmental
They are often made with environmentally friendly and recyclable materials, and construction methods are generally considered "dry," reducing waste.
Product application

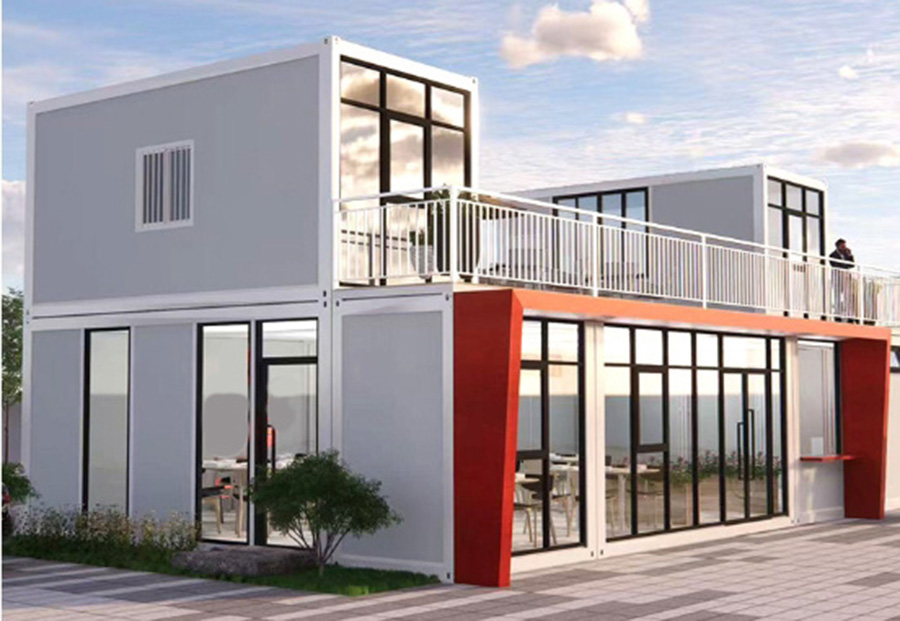

☆Commercial and Retail
They are popular for pop-up shops, trendy retail spaces, and sales offices due to their modern appearance and ability to attract attention with extensive glass facades.

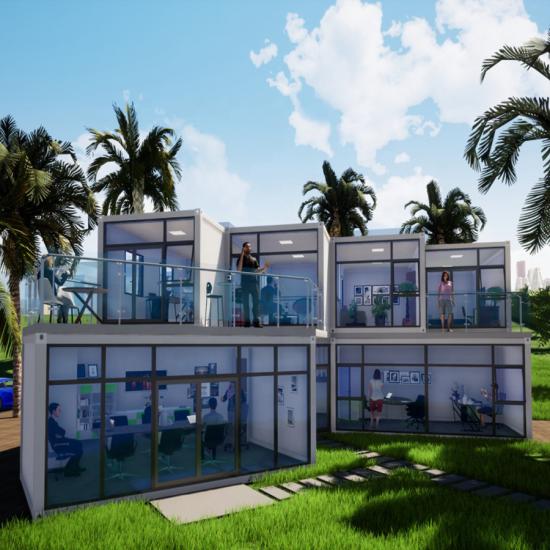

☆Workspaces and Offices
They can be transformed into private offices or temporary office solutions for construction sites, offering a quiet and efficient environment with ample natural light.
☆Residential
Applications include temporary housing, individual residences, granny flats, holiday cabins, and short-term rental units, providing comfortable and convenient living spaces.
☆Temporary Structures
Their quick installation and portability make them ideal for temporary needs such as event spaces, exhibition areas, emergency shelters, command posts, or temporary educational facilities.
☆Industrial and Civil Construction

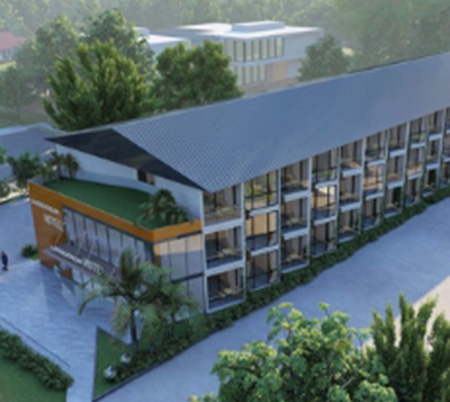

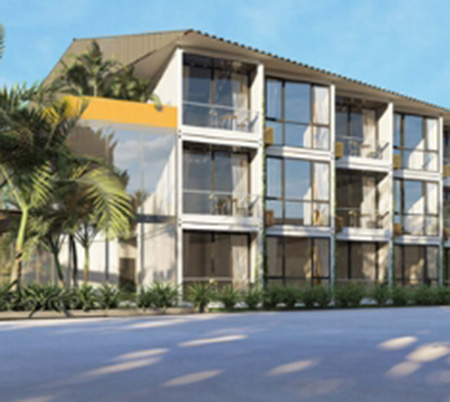

Beyond residential and commercial, they are used in various construction settings for amenities, site accommodations, or modular building components in larger projects like hotels, apartments, and schools.
|
|
|

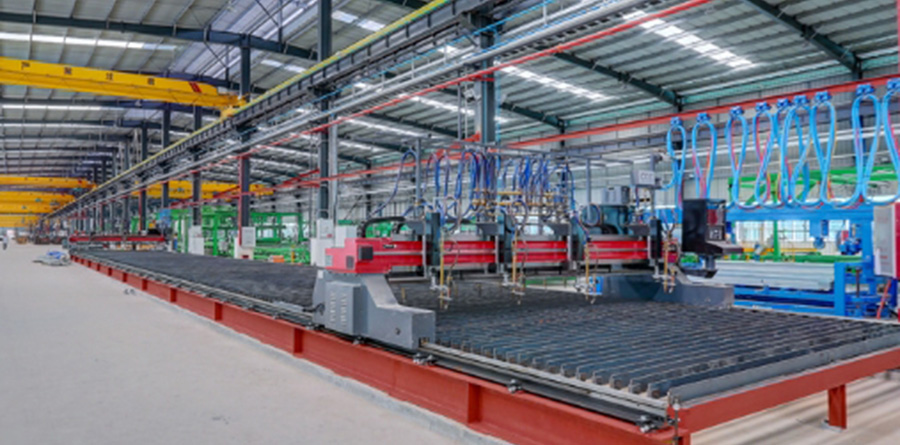

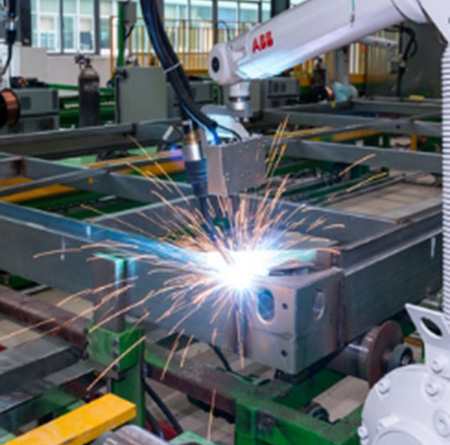

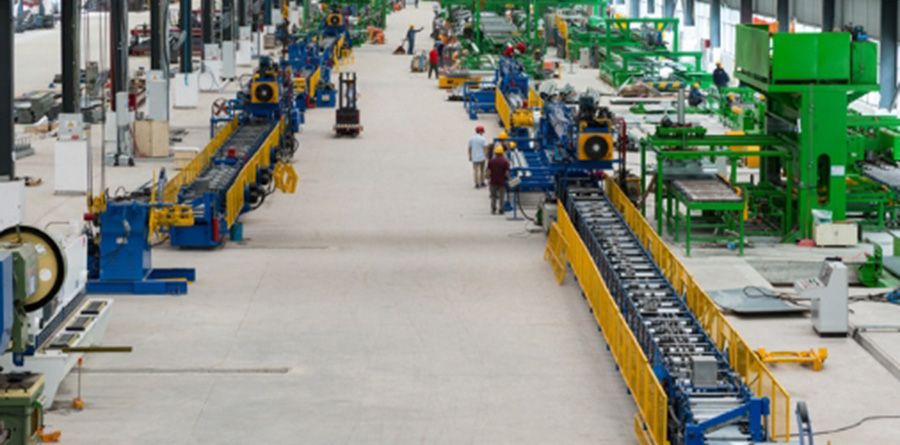

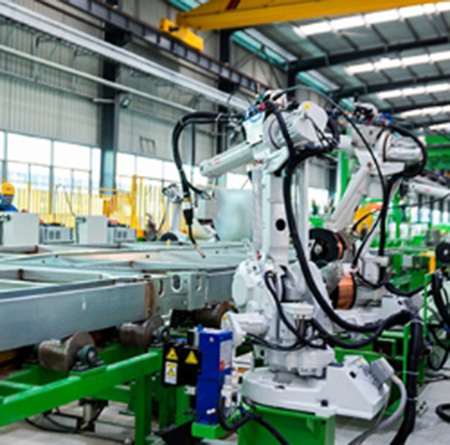

Integrated production
|
|
|
|
|
|
|
|
|
Packing & Delivery

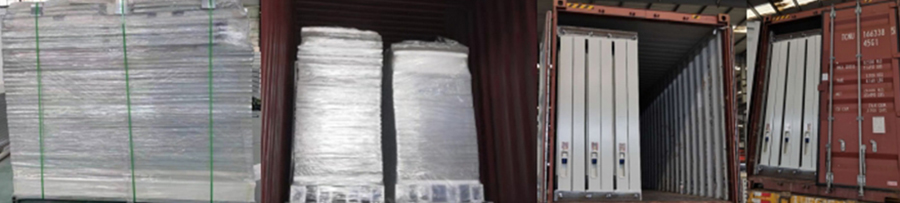

☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
