50mm pioneer coloured PUR/PIR insulated wall sandwich panels
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
item no.:
N/Aproduct orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product Introduction
What is PIR Sandwich Panels?
PIR sandwich panels are high performance building materials with a rigid polyisocyanurate foam core bonded between two metal surfaces. They offer superior fire resistance and thermal efficiency compared to standard PU panels. They are common used for cold storage, cleanrooms, and industrial roofs, these lightweight panels speed up installation while keeping energy costs low over the long run.
Product Specification
|
Specification |
Details |
|
Panel Thickness |
40mm,50mm, 75mm, 100mm, 120mm, 150mm, 200mm |
|
Panel Width |
1000mm (standard), 950mm |
|
Panel Length |
As customers’ requirement |
|
Steel Facings |
Pre painted galvanized steel / color coated steel |
|
Steel Thickness |
0.4mm–0.7mm (both sides) |
|
Aluminum alloy metal thickness |
0.60-1.20mm(both sides) |
|
Core Material |
PIR（Polyisocyanurate） |
|
Available length |
20ft container: <5.90m ; 40hc container: <11.95m |
|
Density |
38-50kg/m3 |
|
Applications |
Warehouses, workshops, industrial plants, logistics centers, commercial roofs, partition walls, fire-rated enclosures |
Product Advantages
☆Heat Insulation
PIR foam delivers outstanding thermal resistance, keeping indoor temperatures stable while reducing heating and cooling costs significantly.
☆Light Weight
Lightweight PIR panels cut structural load and make handling easy, which speeds up construction without heavy equipment.
☆ Quick Installation
Prefabricated PIR panels lock together fast with simple tools, saving weeks of labor compared to traditional wall systems.
☆Waterproof
The closed-cell core and sealed metal faces block moisture completely, preventing leaks and rot in humid environments.
☆Fireproof
PIR panels meet strict fire ratings, resist flame spread, and produce low smoke, giving you critical safety time.
☆Soundproof
Dense PIR foam absorbs noise transmission effectively, creating quieter interiors even near busy roads or industrial zones.
☆Energy-Saving
Lower energy bills come naturally with PIR panels, as superior insulation cuts HVAC runtime all year round.
☆Environmental Friendly
PIR panels reduce material waste and improve building efficiency, helping projects earn green certification points.
☆All-in-One Performance
One PIR panel replaces multiple traditional layers, delivering insulation, strength, and protection in a single solution.

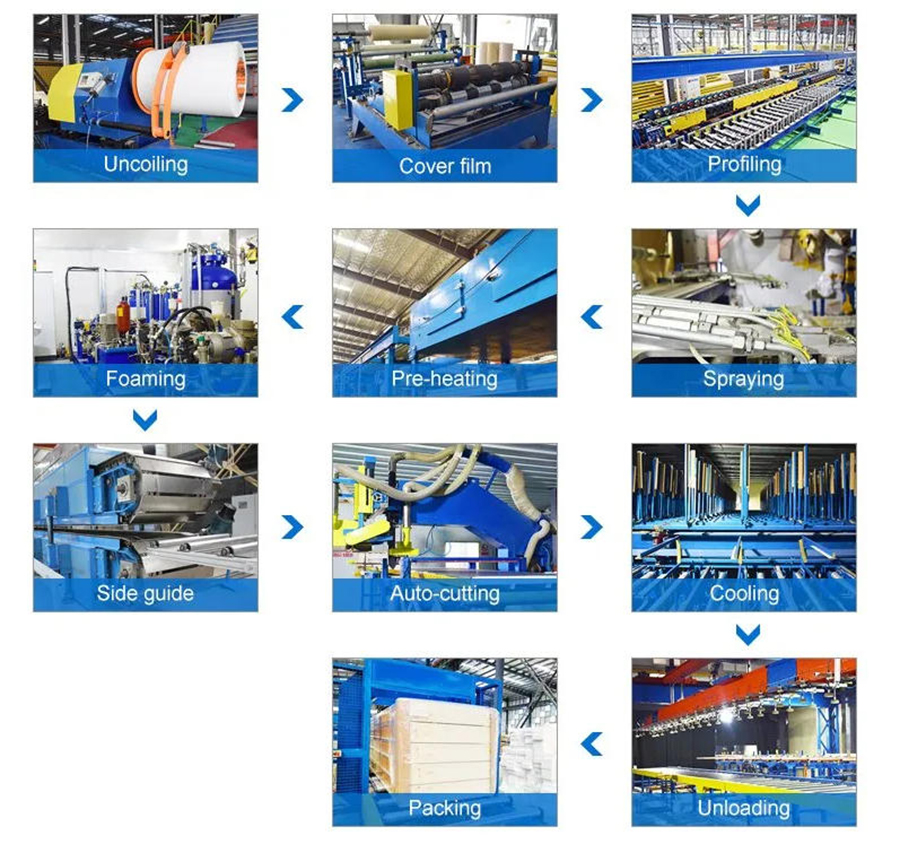

Production process
Why choose us?
Yumisteel-Your Trusted Construction Material Partner
✅ Excellent Quality
High-grade production lines + strict quality management = reliable products every time.
✅ Prompt Delivery
Big production capacity ensures fast delivery and on-time shipment worldwide.
✅ Worldwide Sales
Exported to 80+ countries, trusted by global customers for superior quality.
✅ Diverse Product Range
Container Houses | Corrugated Sheets | Steel Frames | Floor Deck | Sandwich Panels & more.
✅ Outstanding Services
24/7 responsive communication—before, during, and after your purchase.
✅ Professional Team
One-stop solution from design consultation to final installation support.
✅ Competitive Price
Factory-direct pricing designed to fit your budget without sacrificing quality.
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
The PU sandwich wall panel is widely used in the large-sized factory buildings, warehoused, cold room, storages, parking shed, exhibition halls, gymnasiums, etc. MOQ:500M²/Color & Size
35mm thick PU wall sandwich panels can be 930mm,1000mm or 1120mm.This is an affordable option.MOQ:500 M²/Color & Size
Insulated Polyisocyanurate (PIR) sandwich panels in 75mm thickness,is a favorable choice for cold room projects. MOQ:500 M²/ Color & Size.
100mm is a regular thickness for cold room panels,our tongue and groove joint PIR panel can be your best choice. MOQ:500 M²/ Color & Size
PIR sandwich panel with high density, ranges from 45-55 kg/m³, the thermal ocnductivity as low as 0.018W/mK, applicable for cold room storage facilities. MOQ: 500㎡ color&size
