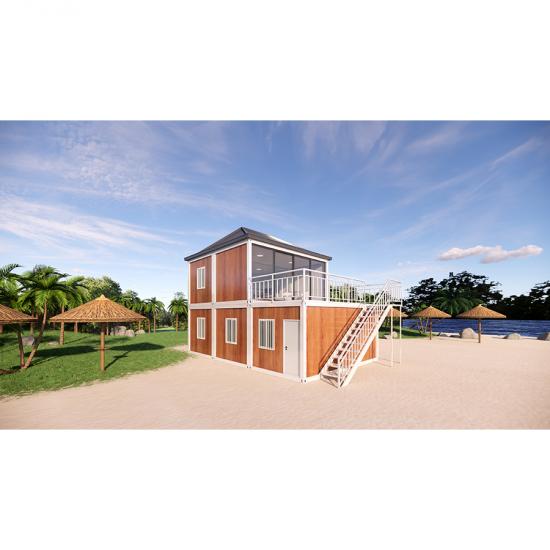

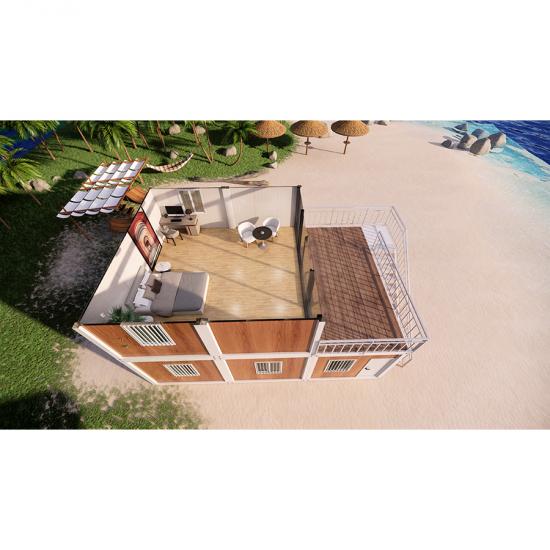

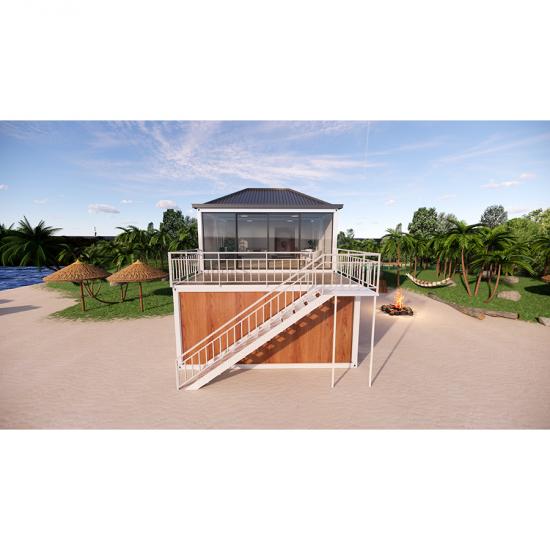

Prefabricated modern luxury flat pack container house
20ft prefabricated container house is built with cold-rolled steel plates and use sandwich panels for wall insulation. MOQ:1 set
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product introduction
What is container house?
Container houses are durable, eco-friendly modular home made from repurposed shipping containers. Modified with insulation, windows, and interior finishes, it combines industrial strength with comfortable living at lower costs than traditional housing.
Product specification
|
Material list |
||||||
|
S/N |
Items |
Material |
Description |
Unit |
QTY |
Remark |
|
1 |
Floor beams |
Main Frame |
Composed of 2.50mm thick galvanized steel sections with 7mm thick corner lifting blocks |
PC |
4.00 |
|
|
2 |
Floor Joist |
Cold-formed galvanized steel profile,1.20mm galvanized steel tubes |
PC |
10.00 |
|
|
|
3 |
Floor Substrate |
Fiber Cement Board 18mm,1177X2820mm X 5 PCs |
㎡ |
14.40 |
|
|
|
4 |
Floor Finish |
1.60mm Full PVC Roll |
㎡ |
14.40 |
|
|
|
5 |
Roof |
Main Frame |
Composed of 2.50mm thick galvanized steel sections with 7mm thick corner lifting blocks |
PC |
4.00 |
|
|
6 |
Roof Joist |
Cold-formed galvanized steel profile,1.20mm galvanized steel tubes |
PC |
9.00 |
|
|
|
7 |
Roof panels |
0.60mm thick roof steel panels,360° biting waterproof treatment |
㎡ |
14.40 |
|
|
|
8 |
Roof insulation |
75mm thick glass wool insulation with PE waterproof film, 14 kg/m³ density |
㎡ |
14.40 |
|
|
|
9 |
Ceiling panels |
0.30mm thick roof steel panels |
㎡ |
12.60 |
|
|
|
10 |
Steel post |
Main Frame |
Composed of 2.50mm thick galvanized steel sections |
PC |
4.00 |
|
|
11 |
Connectors |
2.0mm galvanized steel |
PC |
8.00 |
|
|
|
12 |
L shaped steel beam Stiffener |
PC |
8.00 |
|
||
|
13 |
Wall(External+Partition) |
Wall panels |
50mm thick wall rockwool insulated panels,Color:Off white,RAL9002 |
㎡ |
50.54 |
|
|
14 |
Corner trims |
0.50mm steel flashing |
PC |
4.00 |
|
|
|
15 |
Door(External) |
Single door |
Door frame:1.0mm thick galvanized steel profile, Door leaf: Aluzinc surface steel; Accessories:3 hinges,handle with standard lock,rubber gasket & door stoppers;Color:Off white,RAL9002,Door size:925x2035mm |
Set |
1.00 |
|
|
16 |
Window |
Glass type:single glazed glass,6 mm thickness; |
Set |
2.00 |
|
|
|
17 |
Downspout |
Size:∮50mm, to be installed in the steel posts |
PC |
4.00 |
|
|
|
18 |
Other accessories |
Screws |
Self drilled screws |
Set |
1.00 |
|
|
19 |
Sealant |
|
Tube |
2.00 |
|
|
|
20 |
Electricity |
3 sets of Five-hole sockets; |
Set |
1.00 |
|
|
Product advantages
|
|
|
|
|
|
High Stability |
Reusable |
Easy Installation |
Modular Flexibility |
|
Strong structural integrity, reusable, consistent quality, and extended lifespan. |
Cost-effective and durable, made entirely from recyclable materials for repeated use. |
Quick assembly/disassembly, short construction period, and convenient lifting/transport. |
Robust yet aesthetically pleasing, adaptable door/window layouts, and high safety standards. |
Product application
These prefabricated container houses serve as ideal construction site offices, temporary shelters, staff dormitories, security cabins, rooftop extensions, and modular workspaces. Their detachable container design ensures quick installation, durability and flexible space solutions for various commercial needs.
|
|
|
|
|

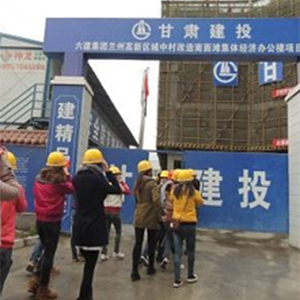

Construction Site |

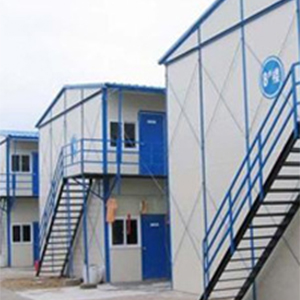

Temporary Housing |
Staff Dormitory |
|
|
|
|
|

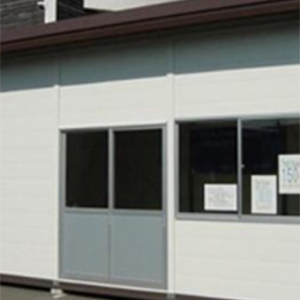

Security Room |

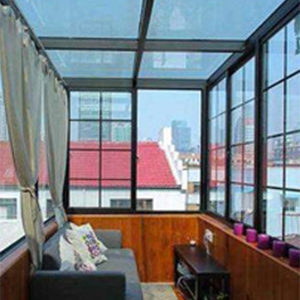

Rooftop Room |

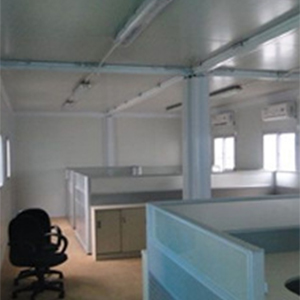

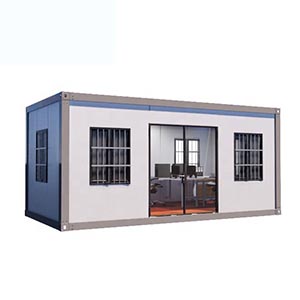

Office Space |
Packing & Delivery

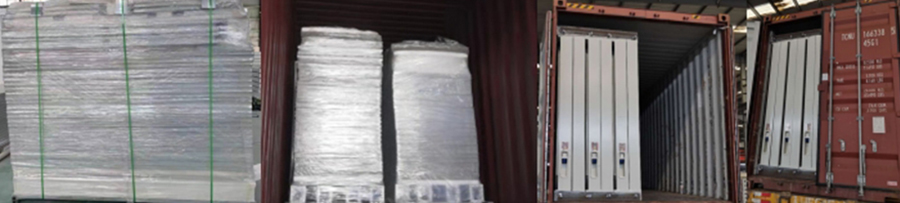

☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumin Xincailiaokeji Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
