Prefabricated modern luxury flat pack container house
20ft prefabricated container house is built with cold-rolled steel plates and use sandwich panels for wall insulation. MOQ:1 set
item no.:
YMCTNS-21lead time:
7-15daysproduct orgin:
Chinashipping port:
Xiamen/Qingdao/Tianjin,Chinapayment:
T/T;L/C at sightcolor:
Customizedmodular office
The flat pack modular office containers are an exciting new approach to home building.
They are versatile and long-lasting, with a high-quality and robust construction system that allows for custom-designed, movable building space solutions with layout alternatives.
Portable site offices built using these flat pack modular containers are durable and may be modified internally and externally to meet your needs.
These quick installation flat pack containers are utilized as independent units or combined to create bigger, bespoke modular structures or storage container units and more complicated movable cabins.
The flat pack modular containers are fitted with luxury showers, toilets, spacious canteens, innovative office layouts, compact site kiosks, and serene accommodations.
You may attach the individual cabins in different ways, including end-to-end, side-by-side, or both directions.
You can stack them on top of one another to create a two-or three-storey structure with a staircase.
☆Movable And Disassemble:
Can be separately according to your requirements.Easy install, transport and relocate.
☆Economical and environment friendly:
Short construction period and little workers, can be relocated with no waste.
☆High strength:
Live load capacity of roofing: 0.5KN/㎡. Second floor load capacity: 150kg/㎡.Load bearing capacity greater than 40t. Live load of corridor/ balcony/walkway is 2.0KN/㎡
☆Waterproof, fireproof,seismic resist:
Its wind resistance Grade 11 (wind speed≤ 111.5km/h)
☆Earthquake resistance:
Grade 7, External and internal wall heat transmission coefficient: 0.35Kcal /㎡hc
☆Long life-span: up to 20 years.
☆Customized: Various design as per your preference.
Modular office systems:
Material List of Container House | ||||||
No | Item | Structure | Unit | QTY | Length | Remark |

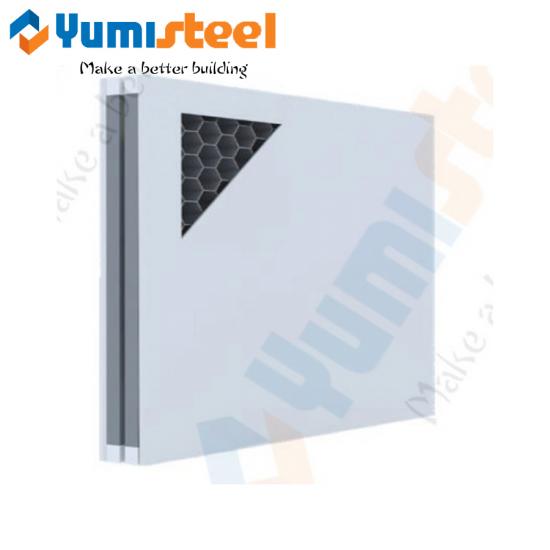

1 | Wall Panels | 50mm/75mm Rock Wool Sandwich Panel | pcs | 15 | 2.56 | Hot-dip galvanized double-sided color roll 0.3mm steel sheet |
pcs | 1 | 3.16 | Hot-dip galvanized double-sided color roll 0.3mm steel sheet | |||
2 | Main Structure | Bottom Beam | pcs | 2 | 5.63 |
Welded stubs (to support the floor) Hot-dip galvanized cold-rolled section steel 2.5mm |
pcs | 2 | 2.68 | ||||
Top Beam | pc | 2 | 5.63 | Hot-dip galvanized cold-rolled section steel 2.5mm | ||
pc | 2 | 2.68 | Hot-dip galvanized cold-rolled section steel 2.5mm | |||
Column | pc | 4 | 2.48 | Hot-dip galvanized cold-rolled section steel 2.5mm | ||
Supporting Channel Bar | pc | 2 | 5.7 | Top beam and wall panel connector | ||
pc | 2 | 2.8 | ||||
Corner Fitting | pc | 8 | 8 corners per set, galvanized 4.5mm thickness | |||
3 | Purlins | Bottom Purlins | pc | 4 | 2.99 | 80*80 galvanized steel square tube 1.4mm |
pc | 5 | 2.99 | 40*80 galvanized steel square tube 1.4mm | |||
Top Purlins | pc | 2 | 2.8 | 50*50 galvanized steel square tube 1.6mm | ||
pc | 3 | 1.88 | 40*80 galvanized steel square tube 1.4mm | |||
pc | 6 | 1.88 | 40*60 galvanized steel square tube 1.4mm | |||
4 | Baking Powder | set | 1 | Phosphating + baked plastic powder | ||
5 | Door | pc | 1 | 930*2030 | Steel door | |
6 | Window | pc | 2 | 930*1100 | Aluminum alloy with anti-theft | |
7 | Roof Sheet | pc | 6 | 2.95 | t=0.45mm | |
Celling Sheet | pc | 6 | 2.8 | t=0.4mm | ||
8 | Floor | pc | 5 | 2.8*1147 | 18mm MGO Fireproof Floor board | |
9 | Profiles | set | 1 | Aluminum alloy | ||
10 | Hardware | set | 1 | Screws, glass glue, pressure strips, etc. | ||
11 | Rock Wool | set | 1 | 1 set |
Remark:The plan of container house can be ajusted according customer's requirement.
Packing & Delivery:
☆Packing:
If standard size,we can load max 15 sets of container.
☆Delivery:
Delivery time for regular designs and colors:7-10 days;
Delivery time for special designs and colors:15-20 days;
Delivery term:FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
We are professional Container House manufacturer & supplier,Specialized in Dormitory, Office Building,Camp, School, Shop,Hospital, Toilet,Hotel,Residences etc,
If you have any interests on our products, please CONTACT US, our sales will introduce and give you a feedback within 1 hour.
